Newport Electronics iServer MicroServer iTHX-2 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

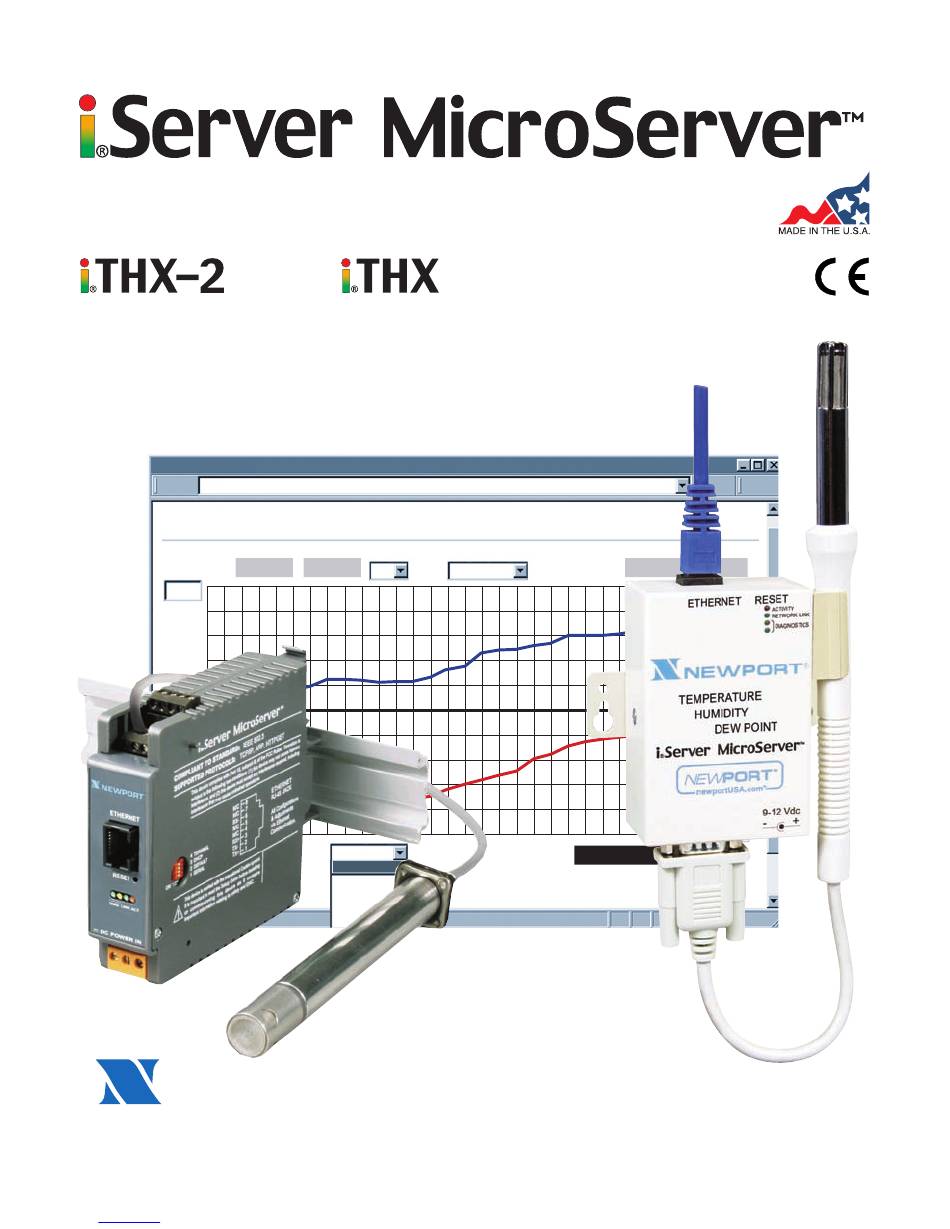

Temperature + Humidity
Operator's Manual
Title
Temperature
50
5/Div
0
Wed Sep 10 12:00:00 PDT 2003
NEWPORT Electronics, Inc.
http://www.newportUS.com/manuals
®
Downloaded from
Elcodis.com
electronic components distributor
and
http://192.168.1.200
021.17
-38.40
C
1 Minute
1 Minute
1 Hour
1 Day
1 Week
1 Month
1 Year
-W
TITLE
Humidity
Draw Ch 1
(2 Seconds/Div)
Wed Sep 10 12:00:00 PDT 2003
Main Menu
082.20
-08.88
100
%
10/Div
0
%

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iServer MicroServer iTHX-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Newport Electronics iServer MicroServer iTHX-2

  • Page 1 1 Minute (2 Seconds/Div) Wed Sep 10 12:00:00 PDT 2003 Wed Sep 10 12:00:00 PDT 2003 1 Minute 1 Hour Main Menu 1 Day 1 Week 1 Month 1 Year NEWPORT Electronics, Inc. http://www.newportUS.com/manuals ® Downloaded from Elcodis.com electronic components distributor...
  • Page 2 European New Approach Directives. NEWPORT will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct but NEWPORT Electronics, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Part 1: Introduction Safety and EMC Considerations ..............2 Before You Begin ..................2 Description....................2 Part 2: Hardware Mounting ......................4 2.1.1 Mounting the Wall Mount iServer ..........4 2.1.2 Mounting the DIN Rail iServer ............5 2.1.3 Removal from DIN Rail ..............5 DIP Switches....................6 2.2.1 DIP Switch Usage ................6...
  • Page 4 Part 5: Specifications......................36 Part 6: Factory Preset Values ....................37 Appendix A Glossary ......................38 Appendix B IP Address ....................39 Appendix C IP Netmask ....................40 Appendix D ASCII Chart ....................41 ASCII Chart Control Codes ...............42 Appendix E iLog Error Messages .................43 Part 7: Approvals Information Electromagnetic Compatibility (EMC) .............44 ......................44...
  • Page 5 NOTES, WARNINGS and CAUTIONS Information that is especially important to note is identified by the following labels: • NOTE • WARNING or CAUTION • IMPORTANT • TIP NOTE: Provides you with information that is important to successfully setup and use the iServer. CAUTION or WARNING: Tells you about the risk of electrical shock.

  • Page 6: Part 1: Introduction

    PART 1 INTRODUCTION 1.1 Safety and EMC Considerations Refer to the CE Approval Section EMC Considerations • Whenever EMC is an issue, always use shielded cables. • Never run signal and power wires in the same conduit. • Use twisted-pair wires for signal connections. •...

  • Page 7: Figure 1.1 Iserver With Probe On The Ethernet Network

    Award-winning Technology: The iServer is simple to install and use. It features award- winning technology that requires no special software except a Web Browser. The iServer connects to an Ethernet Network with a standard RJ45 connector and sends data in standard TCP/IP packets. It is easily configured with a simple menu using a Web Browser and can be password protected.

  • Page 8: Part 2 Hardware

    PART 2 HARDWARE 2.1 Mounting 2.1.1 Mounting the Wall Mount iServer Position unit where required. Mark and drill holes as required. If unit is to be mounted on a flat surface, you may take the bottom rubber feet off the unit. It is recommended that you ground your unit by wrapping a wire around the mounting tab screw and tightening a lock washer so that it embeds itself into the metal of the mounting tab.

  • Page 9: Mounting The Din Rail Iserver

    2.1.2 Mounting the DIN Rail iServer To install unit onto DIN Rail: a) Tilt unit, position mounting slot onto DIN Rail, as shown. b) Push unit towards DIN Rail and it will snap into place. Figure 2.2 Mounting - DIN Rail iServer 2.1.3 Removal from a DIN Rail a) Insert flat screw-driver into tab and push downwards.

  • Page 10: Dip Switches

    2.2 DIP Switches 2.2.1 DIP Switch Usage The iServer is shipped with all DIP switches in "OFF" position. N/C - not used To change to default factory settings To enable/disable DHCP N/C - not used To set the iServer to factory default settings, slide DIP switch #2 to ON position. Power the iServer on and wait about 10 seconds until the iServer fully boots up.

  • Page 11: Parts Of Iserver Unit

    2.3 Parts of the iServer Unit Channel 2 Channel 1 iTHX-2 Connector Pin# Channel 2 3.3V Black DATA Green iTHX-W DB9 White Pin# Signal Pin# Signal Pin # Channel 1 DATA CH1 3.3V SCK CH1 Black SCK CH2 White DATA CH2 3.3V DATA Green...

  • Page 12: Network Communication Interfaces

    2.4 Network Communication Interfaces 2.4.1 10Base-T RJ-45 Pinout The 10BASE-T Ethernet network (RJ-45) system is used in the iServer for network connectivity. The 10 Mbps twisted-pair Ethernet system operates over two pairs of wires. One pair is used for receiving data signals and the other pair is used for transmitting data signals.

  • Page 13: Part 3: Network Configuration

    PART 3 NETWORK CONFIGURATION 3.1 Network Protocols The iServer can be connected to the network using standard TCP/IP protocols. It also supports ARP, HTTP (WEB server), DHCP, DNS and Telnet protocols. 3.2 Ethernet (MAC) Address MAC (Media Access Control) address is your computer's unique hardware number. When you're connected to the LAN from your computer, a correspondence table relates your IP address to your computer's physical (MAC) address.

  • Page 14: Dhcp

    3.3 DHCP DHCP, Dynamic Host Configuration Protocol enables individual computers or devices to extract their IP configurations from a server (DHCP server). If the DHCP is enabled on your iServer, as soon as the iServer is connected to the network, there is an exchange of information between DHCP server and the iServer.

  • Page 15: Default Ip Address

    3.5.1 Default IP Address The iServer is shipped with a default IP address of 192.168.1.200 and Subnet Mask of 255.255.255.0. If you are going to use a Web browser or Telnet program to access the iServer using its default IP address, make sure that the PC from which you’re establishing the connection has an IP address that is in the same range as the iServer’s IP address (192.168.1.x, where x can be any number from 1 to 254.

  • Page 16: Part 4: Operations

    PART 4 OPERATIONS This iServer can be used and configured in several ways, depending on user’s preference and network setup. It can be configured using a Web browser, like Netscape or Internet Explorer. It can also be configured using NEWPORT’s iConnect Configuration Software.

  • Page 17: Iconnect Software

    4.1 iConnect Software The iServer may also be assigned an IP Address by using the iConnect software. Download the iConnect software from the website listed in this manual. Install iConnect software on a networked PC. This software is compatible with Windows 95, 98, NT, 2000, and XP.

  • Page 18: Figure 4.3 Accessing The Iserver For Configuration

    4.1 iConnect Software (continued) To access the iServer for Configuration: Click on the “View Webpage” button, you will access the iServer’s home page, refer to Section 4.3 for details. iSERVER HOME PAGE Read Sensor Chart Access Control Configuration Figure 4.3 Accessing the iServer’s Home Page Menu Downloaded from Elcodis.com electronic components distributor...

  • Page 19: Setting A New Ip Address Over The Network

    4.2 Setting a New IP Address over the Network Besides using the iConnect software, you may use the iServer’s default IP address to access it and assign a new IP address to it. The iServer is shipped with a default IP address of 192.168.1.200 and Subnet Mask of 255.255.255.0.

  • Page 20: Setup And Operation Using A Web Browser

    4.3 Setup and Operation Using a Web Browser • Start your web browser. • From the browser you type http://eisxxxx using the last four-digits from the MAC address label located on the device if DHCP and DNS are used. If a static IP address is used, then simply type http://x.x.x.x, where x.x.x.x is the iServer’s IP address.

  • Page 21: Read Sensor

    4.3.1 Read Sensor • Click on . In a few seconds the following page (Figure 4.7) will appear Read Sensor with all default values of 100.00. Then the actual readings of Temperature, Humidity and Dewpoint will be displayed. • This page automatically updates the Temperature, Humidity, and Dewpoint. •...

  • Page 22: Java Runtime Environment 1.5 (5.0) Setup Instructions

    4.3.1.2 Java Runtime Environment 1.5 (5.0) Setup instructions 1. Go to your computer's Control Panel. Open the Java Plug-in 2. Click on "Settings" & "View Applets" in the "General" tab. 3. Select the "Settings" button on the General Tab Un-check the "Enable Caching" box. Then close dialog box to show the General Tab again 4.

  • Page 23: Chart

    4.3.2 Chart • Click on , the following page (Figure 4.8) should appear. The Java™ Applet Chart graph displays Temperature and Humidity values, which can be charted across the full span (-40 to 124ºC, and 0 to 100% RH) or within any narrow range (such as 20 to 30ºC). The time-base can display one minute, one hour, one day, one week, one month or one year.

  • Page 24: Configuration

    4.3.3 Configuration • Click on , the following page should appear. Configuration CONFIGURATION http://192.168.1.200 CONFIGURATION Display Remote Remote End Sensor Name Reading Offset Units Format Char (HEX) Temperature SRTF TA00.00F 000.00 Humidity HA00.00% 000.00 Dewpoint SRDF DA00.00F 000.00 SRTF2 TB00.00F 000.00 Temperature CH2 Humidity CH2...
  • Page 25 4.3.3 Configuration (continued) B) Terminal Server TCP/UDP*: The iServer supports TCP and UDP protocols (default is TCP). If UDP is selected, it can be configured either for Broadcast UDP or Directed UDP. In case of Broadcast UDP, the iServer will transmit the data to every node on the network. This can be accomplished if the Remote IP Address is set to 255.255.255.255.

  • Page 26: Sensor Parameter

    4.3.4 Sensor Parameter • In the first column of Configuration’s page, click on 1 to view and modify Sensor Parameters. See Figure 4.9. Sensor Parameters http://192.168.1.200 SENSOR PARAMETERS Sensor No. 1 Sensor Name: Temperature Reading Command: SRTF Temperature Units: Remote Display Format: TA00.00F Remote End Char 0x: Offset:...

  • Page 27: Access Control

    4.3.4 Sensor Parameters (continued) Remote Display Format: Is used for Terminal Server continuous mode. This determines the data format sent by the iServer to a remote network node (e.g. iLD Display) H37.9% in humidity setting displays H, and 37.9% is the humidity value displayed. Example: if the humidity is 37.9, then H37.9% will be seen on the remote display.

  • Page 28: Figure 4.12 Access Control

    4.3.5 Access Control (continued) Access Control http://192.168.1.200 ACCESS CONTROL Login Password: 12345678 Admin Password: 00000000 Host Name: eis0e0f MAC Address: 0A:0B:0C:0D:0E:0F IP Address: 192.168.1.200 0.0.0.0 Gateway Address: 255.255.255.0 Subnet Mask: Save Reset Power Recycle Main Menu Figure 4.12 Access Control Login Password: This allows users to access and modify all of the iServer Home Page menu items, except “Access Control”, which requires an Administrator password.

  • Page 29: Telnet Setup

    4.3.5 Configure Access Control (continued) Gateway Address: A gateway is a network point that acts as an entrance to another network. A gateway is often associated with a router, which knows where to direct a given packet of data that arrives at the gateway. If the iServer is sending packets to another network node that is not on the same network on which the iServer is connected, a gateway address needs to be given to the iServer.

  • Page 30: Httpget Using Port 1000

    4.5.1 HTTPget using Port 1000 You can setup and read the information from the iServer by using the HTTPGET program. The following program can be used to read data from the embedded server firmware by using TCP port 1000. The command string is sent to this TCP port, then the response can be read back from the same socket.

  • Page 31: Httpget And Arp To Setup Device Ip Address

    4.5.2 HTTPget and ARP to setup Device IP Address Use the iConnect software, which may be downloaded from our website, to do these IP changes whenever possible. Use ARP first to assign the mac address to a static IP address in computer arp table by this command: arp –s 192.168.1.200 00-03-34-00-06-b6 Then use the following command to assign new IP to the device:...

  • Page 32: Figure 4.13 Arp Commands And Responses

    4.6 ARP Protocol (continued) The following window shows examples of arp commands and responses. • Your computer has an IP address of 192.168.1.118 • The destination computer has an IP address of 192.168.1.96 C:\>arp - 192.168.1.96 No ARP Entries Found C:\>ping 192.168.1.96 Pinging 192.168.1.96 with 32 bytes of data: Reply from 192.168.1.96=bytes=32 time=5ms TTL=32...

  • Page 33: Remote Access (Tunneling)

    4.7 Remote Access (Tunneling) To "tunnel", in this context, is to transmit data between two points through a private conduit on a shared or public network. The network could be an Ethernet LAN, a WAN, or the Internet. There is a Serial-to-Ethernet iServer that allows for a connection between a serial device and a PC, or between two serial devices, using an existing network rather than dedicated wiring.

  • Page 34: Local Iserver

    4.7.1 Local iServer 1. An IP address should be assigned to the iServer dynamically or statically (recommended). 2. Use a browser to access the Local iServer’s WEB page. Simply type the iServer’s IP address at the browser’s URL location (i.e. 192.168.1.49) followed by an Enter key. You should then see the iServer’s main WEB page.

  • Page 35: Remote Iserver

    4.7.2 Remote iServer 1. An IP address should be assigned to the iServer either statically or using a DHCP server. Refer to the DHCP section of the user’s manual for details. Use a browser to access the Remote iServer’s WEB page. Simply type the iServer’s IP address at the browser’s URL location (i.e.

  • Page 36: Ilog Software

    4.8 iLog Software This is an Excel application software that can log temperature, humidity and dewpoint from the iServer over the local network (Ethernet) or the internet. Download the iLog software from the website listed in this manual. Install iLog software on a networked PC. This software is compatible with Windows 95, 98, NT, 2000, and XP.

  • Page 37: Mail Notifier Software

    4.9 Mail Notifier Software The Mail Notifier Software can be used only with NEWPORT Electronics instruments. For complete information of how to use the Mail Notifier software, click on the Help menu of the main window. The Mail Notifier software generates email notifications for alarm conditions. Users can be notified automatically of alarm conditions monitored via internet connections throughout the world.

  • Page 38: Program Options Setup And Configuration

    4.9.2 Program Options Setup and Configuration Complete program setup requires: • Entering a recipient for the email • Specifying connection details to MAPI services. • Defining alarms for devices, and selecting how and when the email will be active. Options Send To Email Setup Content Startup General Mail Server...

  • Page 39: Device Setting Setup And Configuration

    4.9.3 Device Setting and Configuration Device setup requires: • Entering the IP address for iServer device (for example 192.168.1.200). • Specifying Socket number (1000 or 2000 depending on iServer settings). • Defining RS485 Unit # interface address (1 to 199). Enter "0" for RS232 interface or for iServer.

  • Page 40: Part 5 Specifications

    iSERVER SPECIFICATIONS PART 5 SPECIFICATIONS Interfaces SENSOR SPECIFICATIONS Ethernet: 10Base-T (RJ45) RELATIVE HUMIDITY (H) Sensor: Digital 4-wire DB9 iTHX-W; Accuracy/Range: ± 2% for 10 to 90% 8 position screw-terminals iTHX-2 ± 3% for 0 to 10% and 90 to 100% Supported Protocols Hysteresis: ±...

  • Page 41: Part 6: Factory Preset Values

    PART 6 FACTORY PRESET VALUES PRESET PARAMETERS FACTORY DEFAULTS Network Interface: IP Address 192.168.1.200 Gateway Address 0.0.0.0 Subnet Mask 255.255.255.0 Device Host Name eis and last 4 digits from the MAC address Login Password 12345678 Admin Password 00000000 DHCP Disabled Flow Control None End Character...

  • Page 42: Appendix Aglossary

    APPENDIX A GLOSSARY User of this manual should be familiar with following definitions: ARP (Address Resolution Protocol) is a protocol for mapping an Internet Protocol address (IP address) to a physical machine address that is recognized in the local network. For example, the IP address in use today is an address that is 32-bits long. In an Ethernet local area network, however, addresses for attached devices are 48-bits long.
  • Page 43 Appendix B IP Address An IP address is a unique 32-bit address assigned to a computer and includes: • A network ID number identifying a network. • A host ID number identifying a computer on the network. All IP addresses have been divided into three smaller groups (classes) A, B and C •...

  • Page 44: Appendix Cip Netmask

    Appendix C IP Netmask IP Netmask or Subnet Mask is a 32-bit pattern of ones and zeros used to determine network portion of an IP address from the host portion of the IP address. Subnet mask is a network ID that is created by borrowing bits from host portion of IP address and using them as part of a network ID.

  • Page 45: Appendix Dascii Chart

    Appendix D ASCII Chart ASCII Binary ASCII Binary Char No Parity Char No parity 00000000 01000000 00000001 01000000 00000010 01000010 00000011 01000011 00000100 01000100 00000101 01000101 00000110 01000110 00000111 01000111 00001000 01001000 00001001 01001001 00001010 01001010 00001011 01001011 00001100 01001100 00001101 01001101 00001110...

  • Page 46: Ascii Chart Control Codes

    Appendix D ASCII Chart Continuation 00101111 01101111 00110000 01110000 00110001 01110001 00110010 01110010 00110011 01110011 00110100 01110100 00110101 01110101 00110110 01110110 00110111 01110111 00111000 01111000 00111001 01111001 00111010 01111010 00111011 01111011 < 00111100 01111100 00111101 01111101 > 00111110 01111110 00111111 01111111 ASCII Control Codes ASCII Dec Hex Ctrl Key...

  • Page 47: Appendix E Ilog Error Messages

    Appendix E iLog Error Messages Error # Description Note -8003 User stopped logging readings. -10005 Failed to find the iServer. Ethernet cable is disconnected, iServer is powered off, connections across the firewall require longer “connection to socket time out” setting. -10006 Windows socket was closed.

  • Page 48: Part 7: Approvals Information

    PART 7 APPROVALS INFORMATION 7.1 CE APPROVAL This product conforms to the EMC directive 89/336/EEC amended by 93/68/EEC, and with the European Low Voltage Directive 72/23/EEC. Electrical Safety EN61010-1:2001 Safety requirements for electrical equipment for measurement, control and laboratory. Basic Insulation Pollution Degree 2 Dielectric withstand Test per 1 min •...
