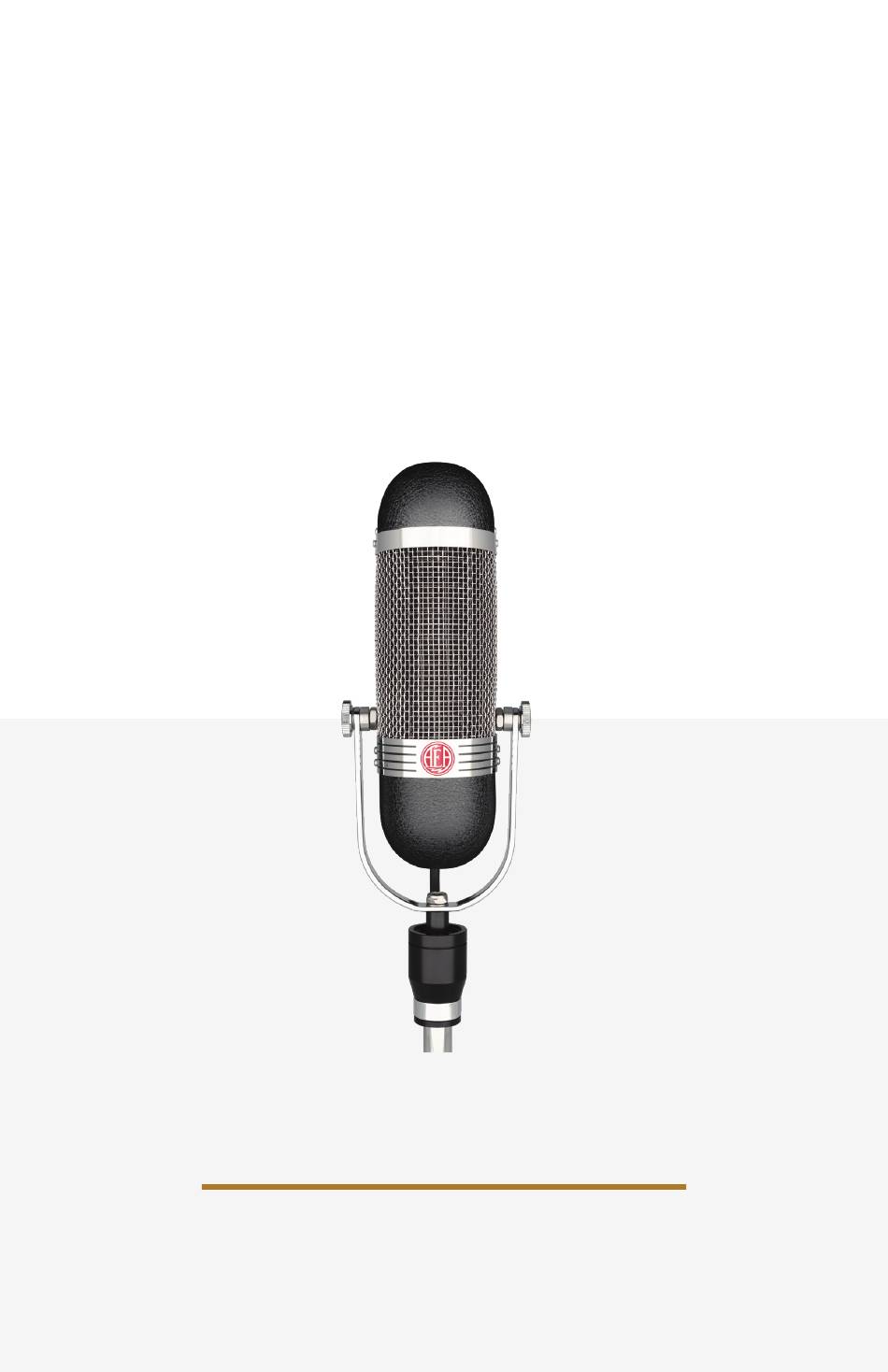

- Page 1 AEA R84 SE RIES OWNER’S MANUAL CLASSIC RIBBON MIC INSPIRED BY THE R44...
-
Page 2: Welcome
Protect it from puffs of air, phantom power, and tramp iron, and it is nearly invulnerable. Treat it well, and it will last decades. Your R84 series microphone is 100% handcrafted in Pasadena, CA. AEA is a family owned company with a small crew of skilled technicians – most of them being musicians themselves. -
Page 3: Table Of Contents
CONTENTS WELCOME INTRODUCTION SUPPORT GENERAL GUIDELINES APPLICATION ADVICE SPECIFICATIONS... -
Page 4: Introduction

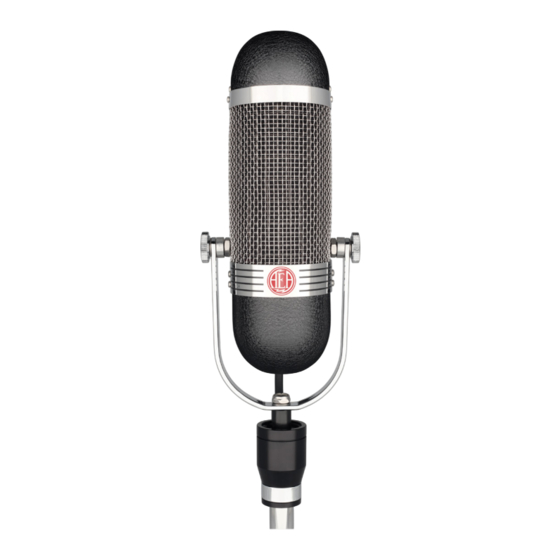

The R84 and the R84A are pill-shaped, side-address, ribbon microphones with a bidirectional pickup pattern. They are assembled with the same Big Ribbon™ tuning (16.5 Hz) as the AEA/ RCA R44 and share many of the unique sound characteristics with their historic predecessor. -
Page 5: General Guidelines
The phantom current draw for active AEA ribbon mics is 7 milliamps. IEC specifies P48 power which should be able to deliver 10 milliamps per input. Some USB and battery-powered audio interfaces will not deliver this. - Page 6 MICROPHONE STORAGE Keep the microphone covered when it is not in use. This will reduce the damage that may result from a gust of air. Place the supplied protective bag over the microphone when it is not in use. For long- term storage, keep the microphone in its protective case.
- Page 7 The high-performance magnets used in AEA microphones are incredibly strong, and a significant amount of stray magnetic field lines surround the microphone. Avoid placing the microphone in close proximity to hard drives, credit cards, analog tape, or any other magnetically sensitive items to prevent any data loss.
-
Page 8: Application Advice
We actively encourage users to visit AEAribbonmics.com access our comprehensive collection of in-depth articles and tutorials featuring the R84 series microphone, along with a library of audio and video demonstrations of the R84 series in action. A FIGURE-OF-8 MICROPHONE Figure-of-8 microphones... - Page 9 While gobo isolation panels can be effective in isolating performers from each other, they introduce their own set of problems - including reflections close to the performers and/or microphones that result in comb-filter distortions. Because gobos usually are bulky and occupy valuable floor space, they also inhibit the ability of the musicians to hear and see each other easily.
- Page 10 R84 series ribbon microphones deliver classic ribbon mic tonality similar to the legendary R44, but engineered with an extended top- end and reduced proximity effect. It is perfect for mid-range and close-range recording. The R84 exhibits a flat frequency response when placed 3 feet (1 meter) away from the source.
-
Page 11: Specifications
SPECIFICATIONS Operating Principle: Pressure gradient transducer Directional Pattern: Bidirectional Frequency Range: <20 Hz to >20 kHz Polarity: Pin 2 high for positive pressure on front of mic Off-Axis Response Horizontal: Up to 90 dB rejection at right angles to the front and back axis. - Page 12 AEARIBBONMICS.COM | @RIBBONMICS | INFO@RIBBONMICS.COM | (800) 798-9127...
