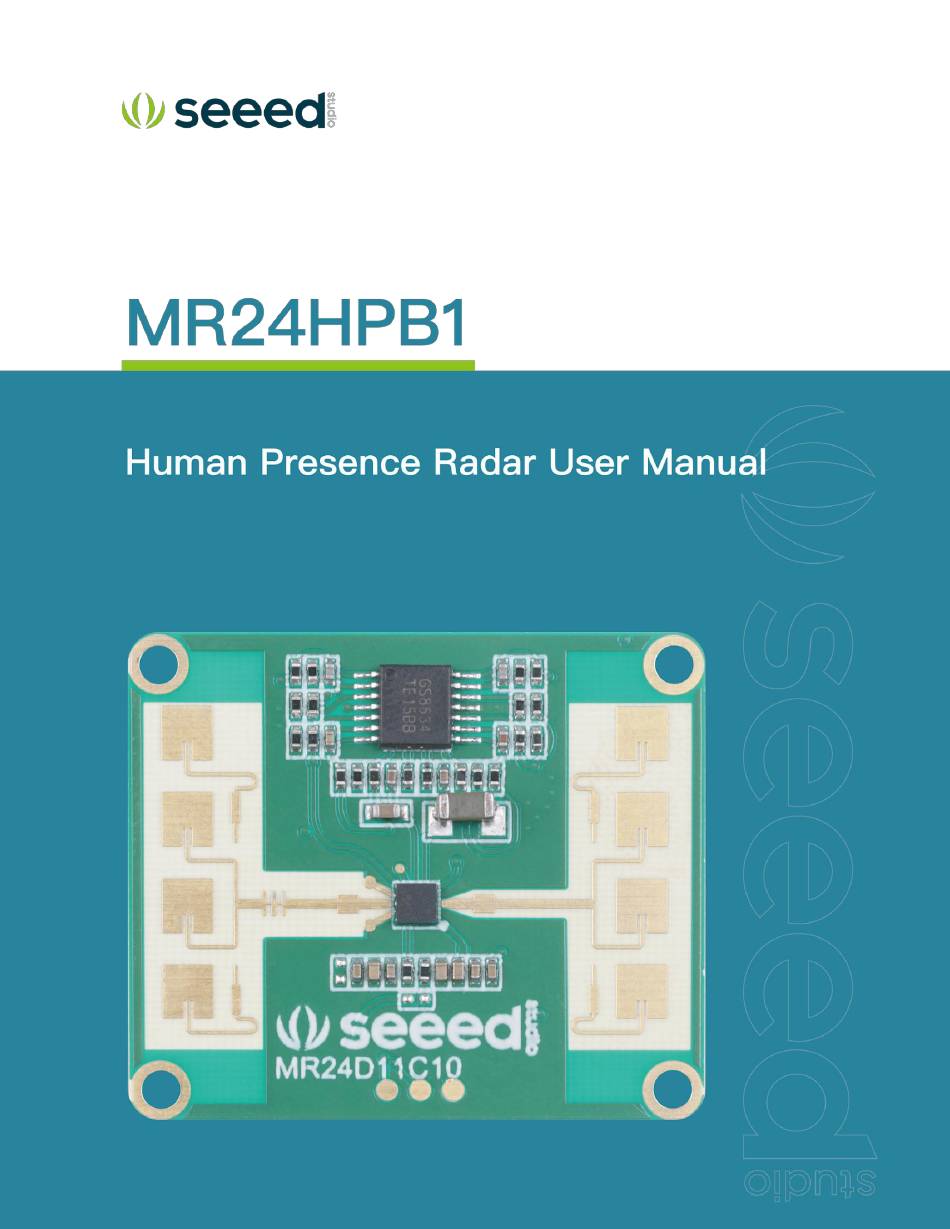

Summary of Contents for Seeed MR24HPB1
- Page 2 Manned to unmanned detection time: over 1 minute. Description The MR24HPB1 is a highly accurate narrow beam fall detection radar sensor of 90/60 degree sector, and it is more suitable within a 6-meter range. (High measurement accuracy, recommended for use at a distance of 6...
-
Page 3: Table Of Contents
MR24HPB1 Application Human presence applications Healthcare • Intelligent household appliances (TV, Yuba, security, etc.) • Office energy saving (air conditioning, lighting) • Sleep monitoring (sleep curve) • Home security • Automatic doors, elevators, etc • Package Volume: ≤ 35MM x 30MM x 5MM Interface: PITCH 2.0MM interface, double row of pins... -
Page 4: Overview
MR24HPB1 105. Works and Patterns Performance 5.1. Installation Method 5.2 Working Mode 146. Typical Application Modes15 6.1. Smart Home Appliance Application 6.2. Home Application 6.3. Bedroom Application 6.4. Energy Saving Application 177. Notes 7.1. Start-up Time 7.2. Effective Detection Distance 7.3. -
Page 5: Electrical Characteristics And Parameters
Yet it is very sensitive and has a wide range of applications. 2. Electrical characteristics and parameters 2.1. Angle and Distance Detection Parametric Content Minimum Typical Maximum Unit MR24HPB1(8-point narrow-beam antenna) Movement personnel detection metre(s) distance Distance perceived by stationary/ slightly mobile... -
Page 6: Rf Performance
MR24HPB1 2.2. Electrical Properties Operating Parameters Minimum Typical Maximum Unit Operating Voltage (VCC) Operating current (ICC) Operating I/O current (IIO) — Operating Temperature（TOP） ℃ Storage Temperature（TST） ℃ 2.3. RF Performance Firing Parameters Operating Frequency（fTX） 24.0 - 24.25 Firing Power（Pout）... -
Page 7: Module Dimensions And Pinouts
MR24HPB1 3. Module Dimensions and Pinouts 3.1. Module size Package... - Page 8 MR24HPB1 Fig. 1 Schematic diagram of the radar module structure 3.2. Pin Descriptions Interface Pins Details Typical Description 5.0V Positive Input of Power Ground Serial Receive Interface 1 Serial Transfer 3.3V/0V Manned/Unmanned 3.3V/0V Stationary/Active 3.3V Power Output Ground Reserve Pin...
-
Page 9: Using The Wiring Diagram
Fig. 2 Schematic diagram of the radar module and peripheral connections 4. Main Performance 4.1 Operating Range of Radar Module Figure 3 illustrates the beam coverage of the MR24HPB1 radar module. Basically, it covers a three-dimensional area with a horizontal angle of 90° and 60° inclined. -
Page 10: Main Functions And
MR24HPB1 Fig.3 MR24HPB1 Diagram of the radar coverage area Due to the characteristics of the radar’s beam, it has a long-range coverage in the direction normal to the antenna surface but a short-range if it deviates from the normal direction of the antenna surface. - Page 11 MR24HPB1 e. Early warning design function. 5. Works and Patterns 5.1. Installation Method There are three recommended installation methods for radar modules: horizontal, inclined, and overhead. 5.1.1. Horizontal Mounting Figure 4 shows the horizontal installation method. The method is primarily used to detect the presence of the human body in a standing or sitting position, such as in a living room, home appliance applications, and other situations.
- Page 12 MR24HPB1 Fig. 4 Schematic diagram of horizontal installation 5.1.2. Tilt Mounting Figure 5 illustrates an inclined installation. Generally, this installation method is intended to detect movement in a room and is primarily applicable to hotels, halls, and other public spaces.
- Page 13 MR24HPB1 Fig. 5 Diagram of the installation in oblique downward view. 5.1.3 Top Mounting Figure 4 illustrates how it is installed on top. This installation method is typically used to monitor human bodies (e.g. in a bedroom, nursing home, or hospital bed), determine fall hazards in wet and slippery environments, and to detect people who are asleep.
- Page 14 MR24HPB1 Fig. 6 Diagram of installation in oblique downward view Caution. A. In the various installation methods above, the radar's main beam should cover the human body's main activity area and face the normal direction as much as possible. B. When it is installed obliquely, the horizontal action distance will be correspondingly reduced due to the change in the horizontal projection of the coverage area.
- Page 15 MR24HPB1 ⦁ Status operation mode In this mode, the radar module periodically reports humans' presence and movement status in the current radar detection area. The main statuses include 1) unoccupied. 2) occupied, stationary. 3) occupied, active. During the status operation mode, the radar module performs internal logic discrimination to determine the environmental status's accuracy.
- Page 16 MR24HPB1 Radar is installed on the equipment in this scenario. As part of the routine operation of the equipment, the radar is installed horizontally or obliquely to guarantee that the radar beam covers the main work area. Conventional household appliances include •...
- Page 17 MR24HPB1 This mode can be used to implement a variety of applications, which include ⦁ Elderly care ⦁ Health care ⦁ Hotel applications ⦁ Home health 6.4. Energy-saving control applications The radar’s motion target and biometric detection capability enable it to have much better applications in energy-saving control.
- Page 18 MR24HPB1 7.2. Effective Detection Distance For the time being, this radar module does not feature a ranging function. Its range of detection is closely related to the RCS of the target and the environment in which it operates. Therefore, the effective detection range may change depending on the environment and the target.
- Page 19 MR24HPB1 Non-interference factors The radar's electromagnetic waves can penetrate human clothing, curtains, veneers, and glass. The installation angle and performance of the radar should be determined according to the intended use. Semi-interference factors The radar detects the presence of a human body, which is not ideal for facing the air conditioner directly.
