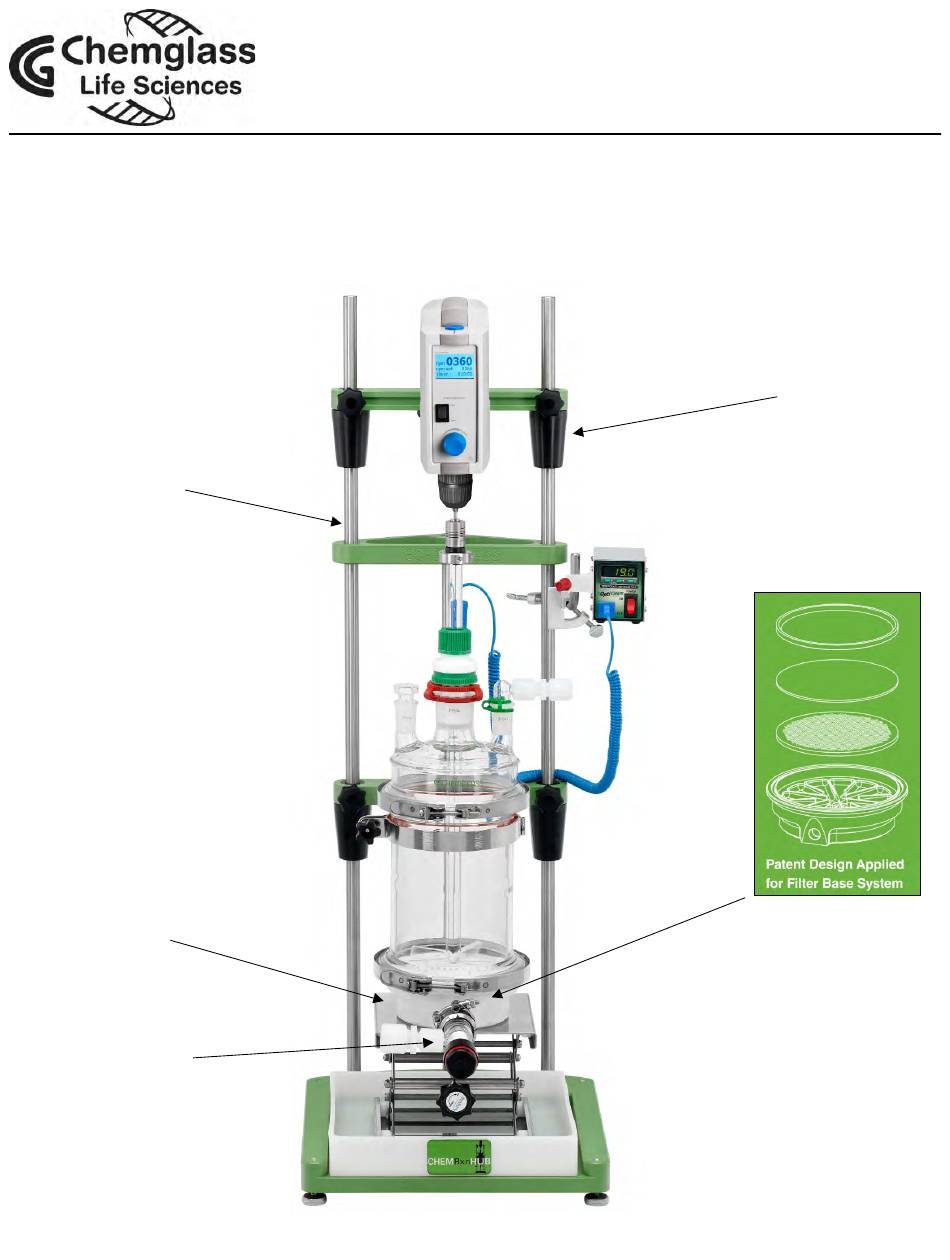

Support Frame with
Oversized Rugged
S.S. Uprights and
Heavy Duty PTFE
Coated Aluminum
Fittings
PTFE Filter Base
Detachable Drain
Valve
www.cglifesciences.com
ASSEMBLY INSTRUCTIONS FOR
UNJACKETED BENCHTOP FILTER
REACTOR SYSTEMS
Vineland, NJ 08360
Phone: 800.843.1794
technical-service@cglifesciences.com
3800 N. Mill Road
Fax: 800.922.4361
Open Frame
Design for
Excellent
Accessibility
Advertisement
Summary of Contents for Chemglass CG-1959-U1000
- Page 1 3800 N. Mill Road Vineland, NJ 08360 Phone: 800.843.1794 Fax: 800.922.4361 ASSEMBLY INSTRUCTIONS FOR UNJACKETED BENCHTOP FILTER REACTOR SYSTEMS Open Frame Support Frame with Design for Oversized Rugged Excellent S.S. Uprights and Accessibility Heavy Duty PTFE Coated Aluminum Fittings PTFE Filter Base Detachable Drain Valve www.cglifesciences.com...
- Page 2 Read Entire Assembly Instructions Before You Begin. Familiarize Yourself with All of the Parts, and Pay Close Attention to All Notes and Highlights. Support frames are shipped via common carrier and require loading dock access with a fork lift or jack.
- Page 3 Overhead Stirrer Motor Air Motor 1/4 HP Vertical Motor 1/4 HP Horizontal Motor Explosion Proof (XP) Motor The motor is installed on the support frame when shipped. Use the following instructions should you need to remove or adjust these components. Components Needed for Overhead Stirrer Motor: 1ea CG-2033-B-25 1/4 HP Vertical Electric Stirrer Motor...
- Page 4 3. Once you have the upper agitator in place, tighten the compression fitting as tight as possible (by hand). For use at higher temperatures, Chemglass recommends heating the upper agitator hub with a heat gun and then retightening. Then tighten the set screw on the flat of the stirrer shaft using a screwdriver.
- Page 5 Filter Base System Centering Ring Frit (Filter) *Note: The Bottom Impeller Should NOT Rub on the Filter Perforated Plate Filter Base 1. Place the o-ring in the beveled edge of the filter base. 2. Place the perforated plate in the filter base, beveled edge facing up. 3.
-
Page 6: Before You Start
Keep the wheels locked for added safety. Chemglass presumes some knowledge of this type of equipment on the part of the end user. Properties such as mechanical strength of glass, thermal stress introduced to the reactor from exothermic reactions, allowable temperature differentials, pressure and vacuum must all be considered with extreme caution. - Page 7 www.cglifesciences.com technical-service@cglifesciences.com...
- Page 8 www.cglifesciences.com technical-service@cglifesciences.com...
- Page 9 CG-1978-P, CG-1979-P and CG-3498 Probes for Reactor Systems Installed in Hazardous/XP or ATEX environments. Chemglass PT100 and thermocouple probes that will be used in a hazardous/explosion proof area must be used with a Zener barrier. Zener barriers are used in control and instrumentation systems for the process of standardized signals, such as 20 mA or 10 V.
