User and maintenance
Instruction manual

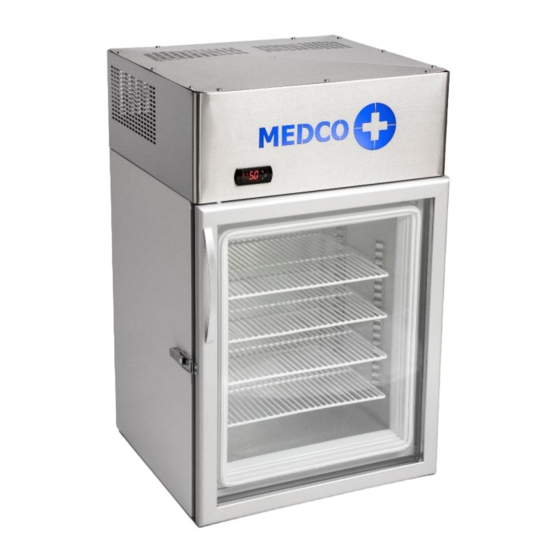

MED85F GD – Medical Freezer, (Glass Door)
MED85F GD – Medical Freezer, (Solid Door)
Make a record of the model number and serial number here:
MODEL NUMBER:
SERIAL NUMBER:
Find these on the label on the back of the freezer.
Version: 1.1
Author: RK
Date: June 2022
1 |
P a g e
Advertisement
Table of Contents
Summary of Contents for Medco MED85F GD
- Page 1 User and maintenance Instruction manual MED85F GD – Medical Freezer, (Glass Door) MED85F GD – Medical Freezer, (Solid Door) Make a record of the model number and serial number here: MODEL NUMBER: SERIAL NUMBER: Find these on the label on the back of the freezer.
- Page 2 Contents Cover page Contents Safety instructions Installation instructions Operating instructions Maintenance tasks Diagnosing a problem Specifications Electrical Refrigeration circuit Recycling information Customer support Technical Specifications Version: 1.1 Author: RK Date: June 2022 P a g e...
- Page 3 Safety Instructions When using electrical appliances, basic safety precautions should be followed including the following: Keep fingers out of the ‘pinch-point’ This appliance must be properly installed and located in accordance areas: clearance between door and with the installation instructions cabinet.
- Page 4 Installation instructions Handling Units are supplied to enable handling most easily by forklift truck or pallet truck. Limit the lift by one individual to 25kg or less. Keep the unit vertical. Do not tip the unit further than 30 degrees. Keep the door closed when moving the freezer.
- Page 5 Temperature control Due to the unique way that this unit operates there is no need for any user control. The unit is designed to -18 degrees centigrade within the storage compartment. If the Temperature controllers indicates any other temperatures then refer to the troubleshooting section of this manual. ▪...
- Page 6 Defrosting A manual defrosting procedure should be performed periodically on the fridge compartment of the appliance to maintain its operating efficiency. Over time, as the door is opened and closed, letting in new air, water vapor from the air condenses on the cooling elements within the cabinet.
- Page 7 Technical Specifications Model MED85R GD MED85R SD Product measure (mm) (H x W x D) 970 x 619 x 563 970 x 619 x 563 Gross volume (L) Weight (Kg’s) – Packaged Voltage (V) Power consumption (kWh) 0.15 0.15 Frequency 50Hz 50Hz Obtain from...
