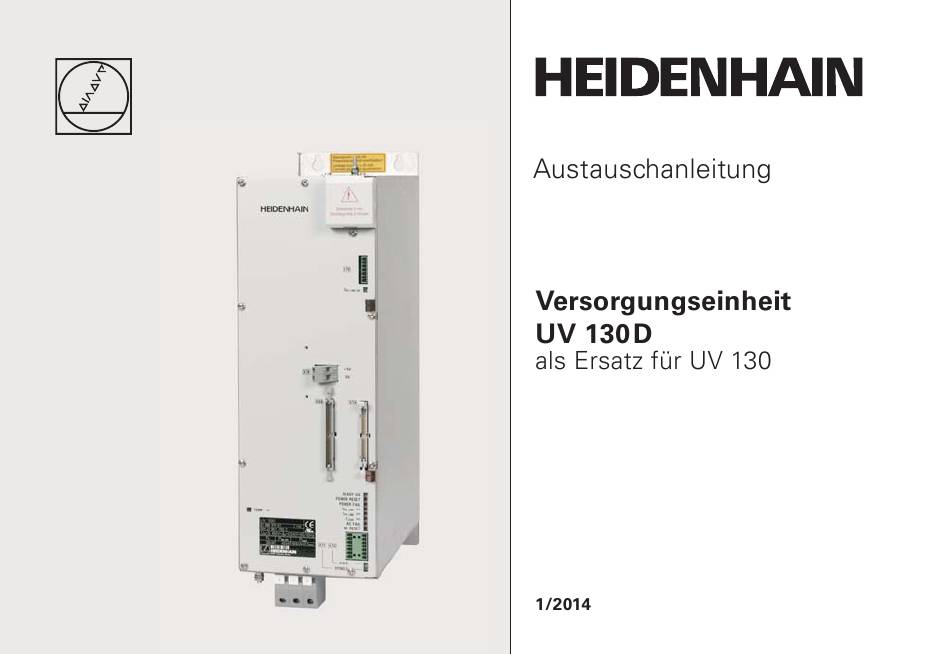

- Page 1 Replacing Instructions Power supply unit UV 130 D as Replacement for UV 130...
- Page 4 U V W...
- Page 7 Meaning of the symbols used This symbol indicates that one or more of the following dangers exist: Danger to the workpiece Danger to fixtures Danger to the tool Danger to the machine Danger to persons This symbol indicates that important notes must be adhered to. This symbol indicates that you can find detailed information in another documentation.
- Page 8 Caution! The exchange may only be performed by an electrical specialist! Compatibility: The UV 130 D power supply unit is partly compatible in its mounting dimensions and electrical specifications! Property UV 130 UV 130 D Position of the connectors on the front, right on the front, left X70, X71, X72, X69, X79 DC link connection...
- Page 9 Position of the connectors and terminals UV 130 UV 130 D U V W Front Front Bottom Bottom...
- Page 10 Work steps: Switch off the machine and take precautions against restart. Pay attention to the discharge period of the power supply unit of 5 min. and use a suitable voltage test unit to ensure that the entire inverter system is not under voltage! Remove the cover on the front of the inverter system.
- Page 11 Tests after mounting the new power supply unit DIN VDE 0113, part 1 / EN 60204-1 According to DIN VDE 0113, part 1 / EN 60204-1 the following must be checked after a component has been exchanged: Danger to persons! 1.
- Page 12 664789-92 · Ver01 · 1/2014 · Printed in Germany · S...
