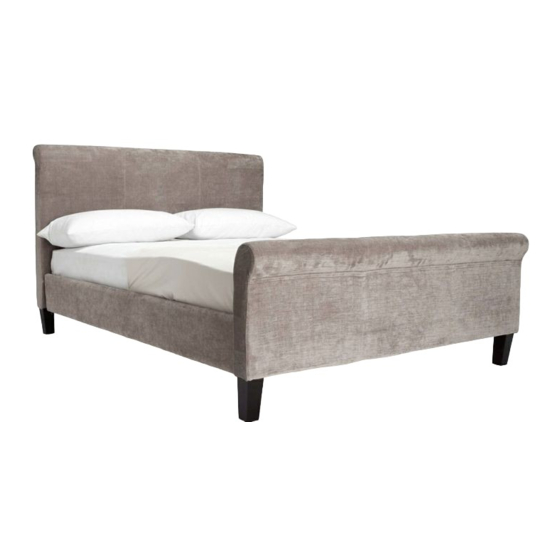

PORTOFINO DOUBLE BED
678708
Assembly instructions
Need help?
With: Assembly instructions
Missing or damaged parts
CALL: 0333 777 8999
Page 1
Advertisement
Related Manuals for Next PORTOFINO 678708
Summary of Contents for Next PORTOFINO 678708

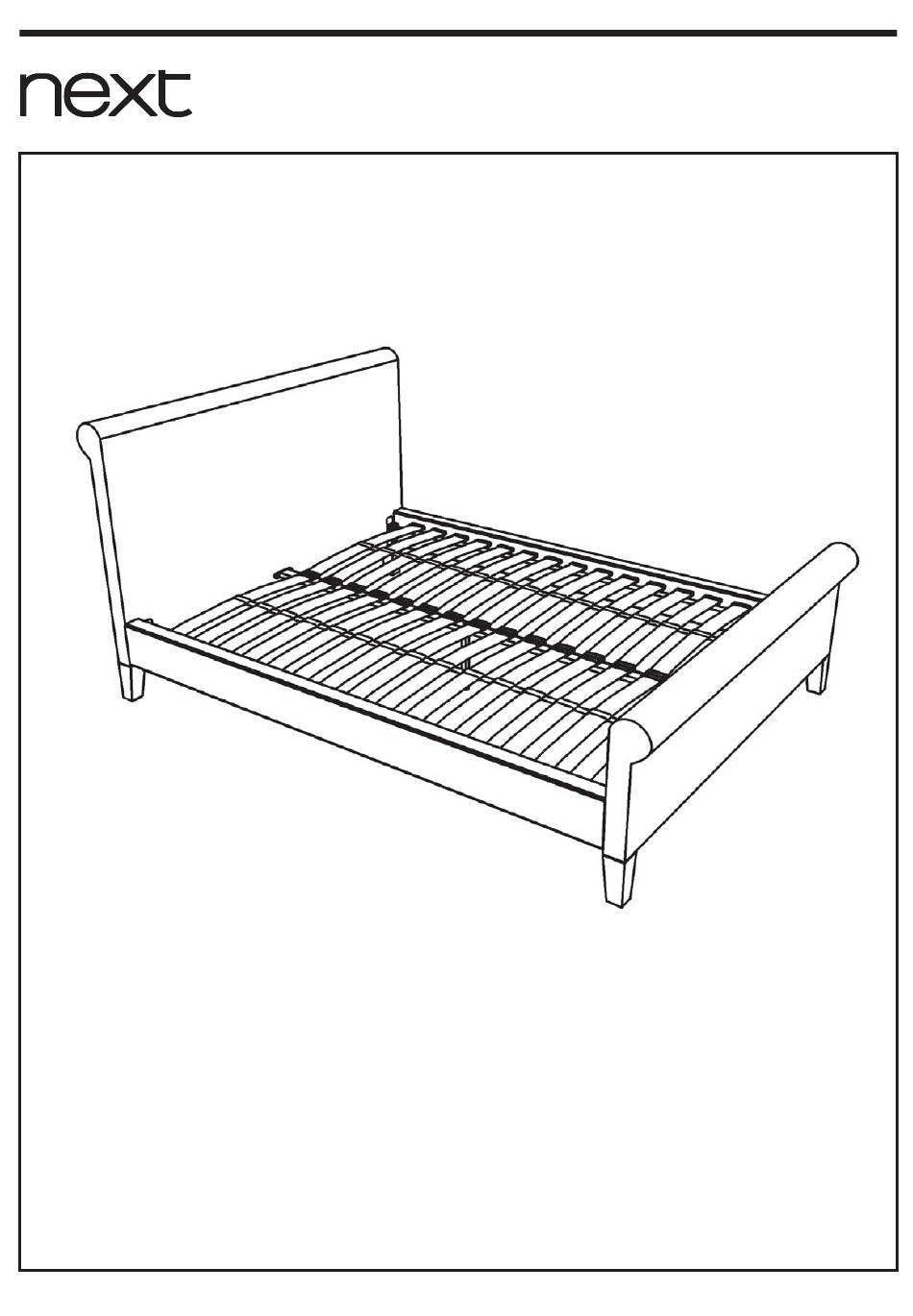

- Page 1 Actual product size H107 x W 164 x L 218 cm Need help? With: Assembly instructions Missing or damaged parts CALL: 0333 777 8999 IMPORTANT ─ RETAIN FOR FUTURE REFERENCE Produced in Romania for Next Retail Ltd. Page 1 673886-2014-V1...
-
Page 2: Before You Start
Desford Road, Periodically check the condition of your bed slats and plastic Leicester, locating caps to ensure they are in good LE19 4AT condition and have not become loose. Produced in Romania for Next Retail Ltd. Page 2 673886-2014-V1... -
Page 3: Getting To Know Your Product
Qty. Ctn. 192 x 10 cm 164 X 92 cm 25 x 5 cm 164 X 45 cm 70 x 1 cm 192 x 17 cm 18 x 7 cm Produced in Romania for Next Retail Ltd. Page 3 673886-2014-V1... - Page 4 Ref. Dimensions Qty. 40 x 40 mm 20 X 8 mm 30 X 8 mm 40 X 6 mm 16 x 16 mm 12 x 12 mm 150 x 33 mm Produced in Romania for Next Retail Ltd. Page 4 673886-2014-V1...
- Page 5 PORTOFINO DOUBLE BED 678708 Assembly instructions Fixtures and fittings supplied (actual size) Ref. Dimensions Qty. 100 x 50 mm 75 x 30 mm Produced in Romania for Next Retail Ltd. Page 5 673886-2014-V1...
- Page 6 PORTOFINO DOUBLE BED 678708 Assembly instructions A x 4 1 cm Screws "B" are prefitted. Unscrew until 1 cm space. B x 8 E x 8 Produced in Romania for Next Retail Ltd. Page 6 673886-2014-V1...
- Page 7 Repeat this step in every corner of the bed. Screws "D" are prefitted. Unscrew them before fitting the feet in place. 60 X 8 mm D x 2 F x 2 Produced in Romania for Next Retail Ltd. Page 7 673886-2014-V1...
- Page 8 Repeat this step for either side of the bed. E x 4 C x 4 Press the ansemble formed by (7) and (I) pieces until it "clicks" into place I x 60 Produced in Romania for Next Retail Ltd. Page 8 673886-2014-V1...
- Page 9 PORTOFINO DOUBLE BED 678708 Actual product size H107 x W 164 x L 218 cm 218 cm 164 cm 192 cm 218 cm 192 cm Produced in Romania for Next Retail Ltd. Page 9 673886-2014-V1...
