Assembly Instructions
Congratulations, you made the right choice!
Your new PRO SIMRIG is ready to be built, but a few words of advice first:
1. Take your time, it is not a race (that comes later!). Get each step perfect and it will minimise the
adjustments you need to do later.
2. Be careful not to scratch the profile. Careful assembly can mean zero marks or scratches and it will
stay looking great for a really long time.
3. Construct your rig in this order:
a.
Base frame first
b. Seat (with brackets / slider). Take time to sit in the rig and appreciate the position. Do not
rush to the next stage. Get this right, as everything you do after this depends on the seating
position staying the same.
c.
Pedal section and pedals. Again, take time to sit in the rig. Actuate the pedals. Make sur the
feel is right and that you aren't too cramped, or too extended.
d. Steering section last

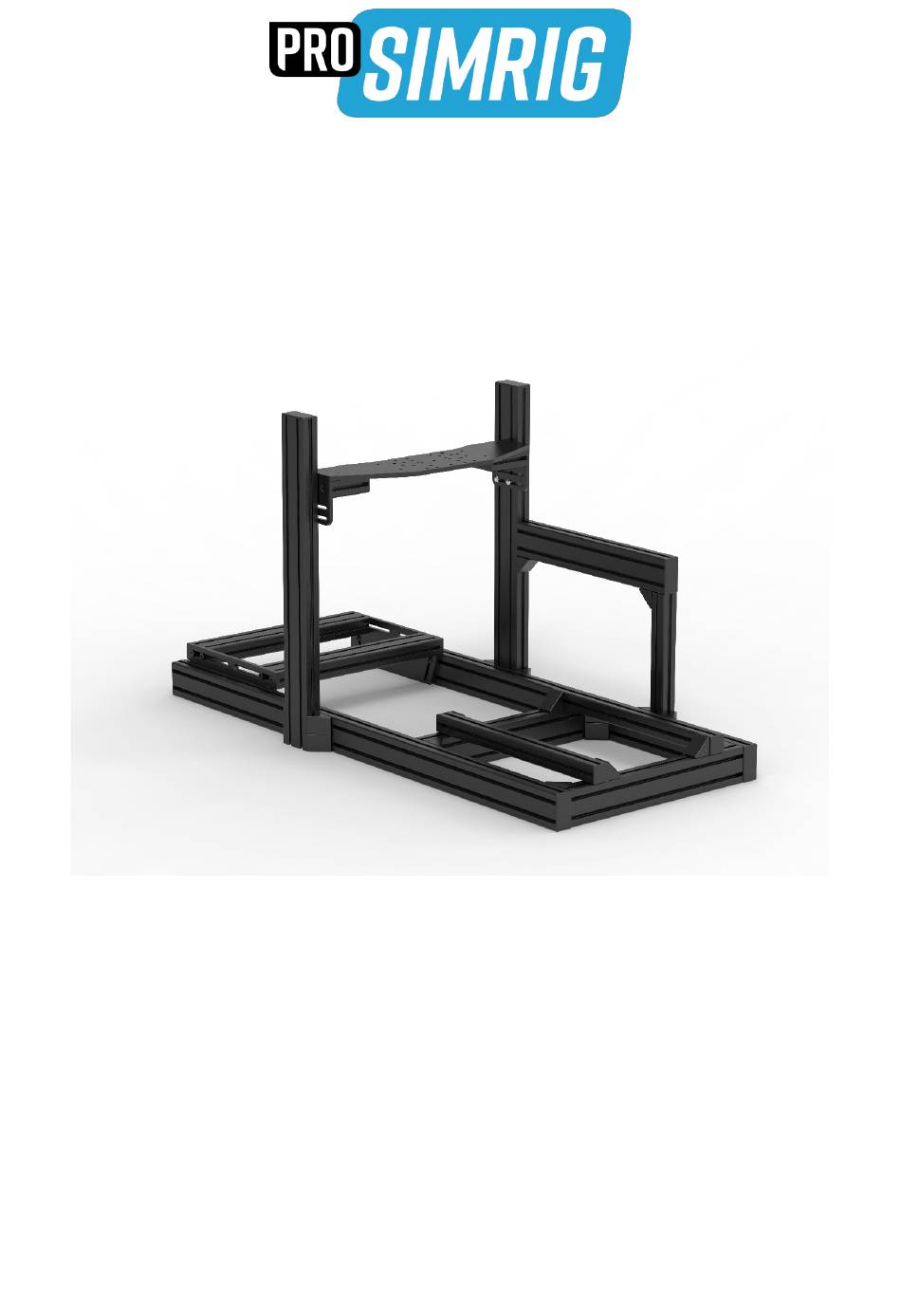

PRO SIMRIG PSR3

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO PSR3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Simrig PRO PSR3
