Summary of Contents for Pierce PSHV Series

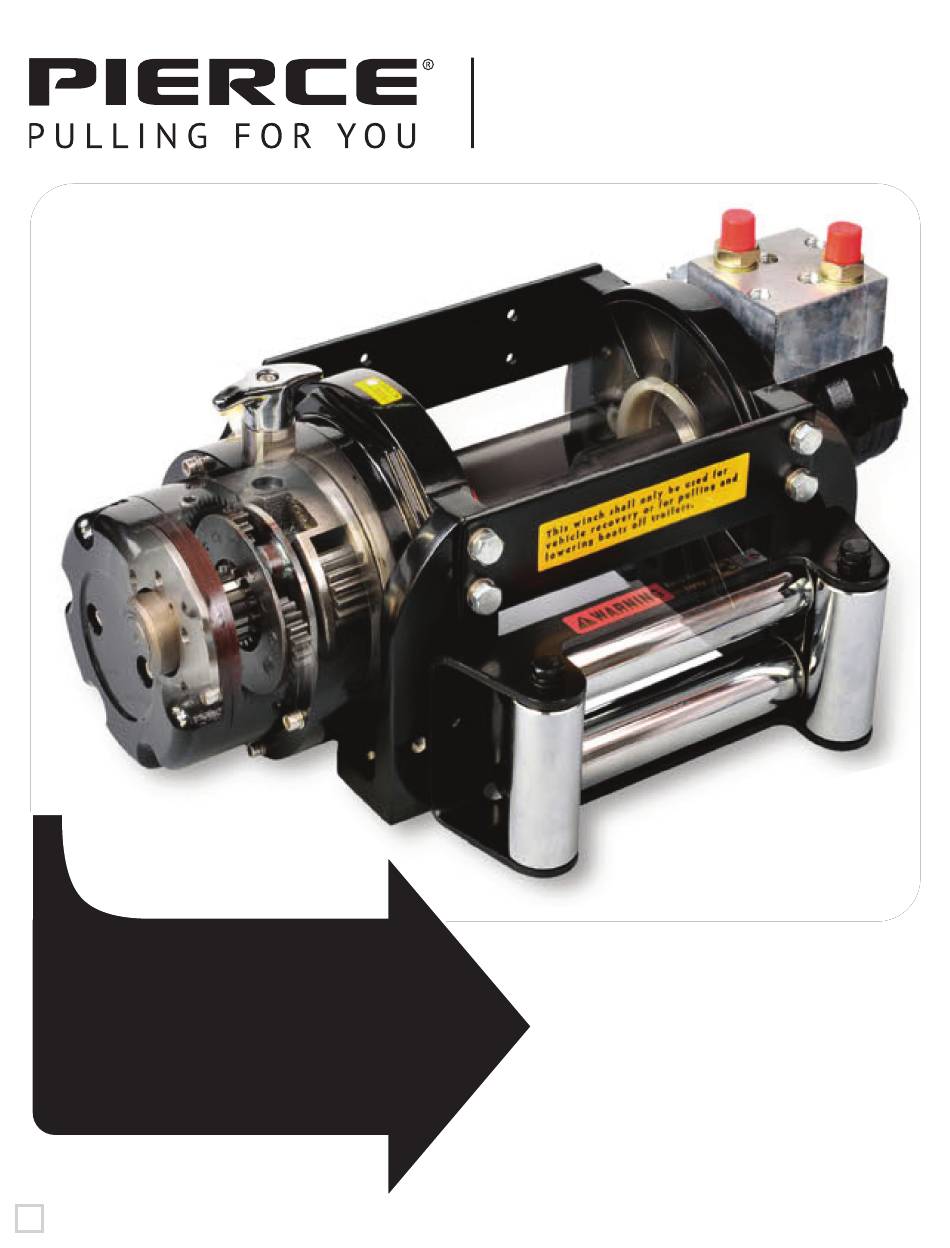

- Page 1 PSHV SERIES OWNER’S MANUAL WINCH REGISTER YOUR PRODUCT! Why register? • Product updates. In order for us to best serve you, please register your product at • Maintenance reminders. www.piercearrowinc.com/warranty/product-registration •Technical service and support. LM-02-00-0002 v3.0.0...
-
Page 3: Shipment Contents
DISCLAIMER The PSHV series winch is a powerful tool and must be used with extreme care. Deviating from the manual’s instructions may cause personal injury. You may void your warranty if you do not follow the precautions and guidelines outlined in this manual. Keep this manual in a safe place to reference safety and installation instructions, maintenance guidelines and operating recommendations. - Page 4 SAFETY WARNINGS (continued) D O N OT M I S U S E YO U R W I N C H AVO I D U N I N T E N T I O N A L S TA RT I N G •...
-
Page 5: Installation
INSTALLATION M O U N T I N G • Before installation, ensure the mounting frame in use is capable of withstanding the winch’s rated capacity. • Ensure the motor, wire rope, drum, and gear housing is properly aligned. • Mount winch to a hard and flat surface. •... - Page 6 SPOOLING W I R E RO P E P R E PA RAT I O N S T E P 1 NOTE: The first use of your winch must be a test Back run during a non-recovery situation. During this trial run begin to recognize the sound of a steady pull, a heavy pull, load jerking or shifting.
-
Page 7: Operation
• When the rope is replaced, apply Loctite 7471 • DO NOT attempt to disassemble the gearbox. primer or 222 Threadlocker to the wire rope Disassembly may void the warranty. Call Pierce clamp to prevent loosening of the screw. Arrow at 940-538-5643 before repairs are made. -
Page 8: Specifications
SPECIFICATIONS PSHV10000 PSHV15000 PSHV18000 PSHDH20000 PSHDH30000 RATED LINE PULL 10,000 lbs 15,000 lbs 18,000 lbs 20,000 lbs 30,000 lbs LINE SPEED 46 fpm @ 15.9 gpm 30 fpm @ 15.9 gpm 23 fpm @ 15.9 gpm 23 fpm @ 15.9 gpm 16 fpm @ 15.9 gpm OPERATION PRESSURE 2,175 psi... - Page 9 YOU MAY REMOVE THIS PAGE PSHV 1 00 00 F OOTP R IN T 8-Ø11mm (0.43”) 41.3mm (1.63”)
- Page 10 32.5mm (1.28”) 303.5mm (11.95”)
- Page 11 YOU MAY REMOVE THIS PAGE PS HV 15000 / PS H V180 0 0 FO OT PRI NT 8-Ø16mm (5/8”) 32.5mm (1.28”)
- Page 12 41.3mm (1.63”) 291.6mm (11.48”)
-
Page 13: Parts Diagram
LINE SPEEDS & DIMENSIONS PSHV10000 LAYERS WIRE SPEED @ PULL OF WIRE ROPE 15.9 GPM ( LBS ) ( FT ) ( FPM ) ROPE 10,000 26.2 8,369 57.4 53.5 1/2”-13 7,196 62.3 PARTS DIAGRAM # DESCRIPTION PART N0. QUANTITY PSHV10000 1 hydraulic motor kit 880162... - Page 14 LINE SPEEDS & DIMENSIONS PSHV15000 SPEED @ LAYERS WIRE PULL OF WIRE ROPE 15.9 GPM ( LBS ) ( FT ) ( FPM ) ROPE 15,000 23.3 12,273 51.5 35.8 10,390 PARTS DIAGRAM # DESCRIPTION PART N0. QUANTITY PSHV15000 1 hydraulic motor kit 880182 2 over center valve 883314...
- Page 15 LINE SPEEDS & DIMENSIONS PSHV18000 LAYERS WIRE SPEED @ PULL OF WIRE ROPE 15.9 GPM ( LBS ) ( FT ) ( FPM ) ROPE 18,000 14,775 12,529 PARTS DIAGRAM # DESCRIPTION PART N0. QUANTITY PSHV18000 1 hydraulic motor kit 880182 2 over center valve 883315...
- Page 16 LINE SPEEDS & DIMENSIONS PSHDH20000 LAYERS WIRE SPEED @ PULL OF WIRE ROPE 15.9 GPM ( LBS ) ( FT ) ( FPM ) ROPE 20,000 17,017 14,813 PARTS DIAGRAM # DESCRIPTION PART N0. QUANTITY hydraulic motor kit, 882186 OMP-160 2 multi-disc brake kit 881971 3 motor support rack...
- Page 17 LINE SPEEDS & DIMENSIONS PSHDH30000 LAYERS WIRE SPEED @ PULL OF WIRE ROPE 15.9 GPM ( LBS ) ( FT ) ( FPM ) ROPE 30,000 25,216 21,745 PARTS DIAGRAM # DESCRIPTION PART N0. QUANTITY hydraulic motor kit, 882186 OMP-160 2 multi-disc brake kit 881971 3 motor support rack...
-
Page 18: Limited Warranty
OT H E R M A N U F ACT U R E R S' WA R RA N T I E S repair or replacement may be granted. The merchandise must be delivered by the purchaser to Pierce Arrow Inc. in Pierce Arrow Inc. makes no warranty, expressed or implied, Henrietta, Texas at the purchaser’s expense. - Page 20 • If NO: Call us at 800-658-6301 or let us know how we can help at www/piercearrowinc.com/contact-us LEARN MORE ABOUT PIERCE PRODUCTS We’d be happy to send you a catalog. Or call our team today with further questions. Check out our resource library to access Pierce specification sheets, wiring diagrams, and manuals. https://www.piercearrowinc.com/documents/ KEEP IN CONTACT Pierce Arrow Inc.
