Jabra Link 14201-19

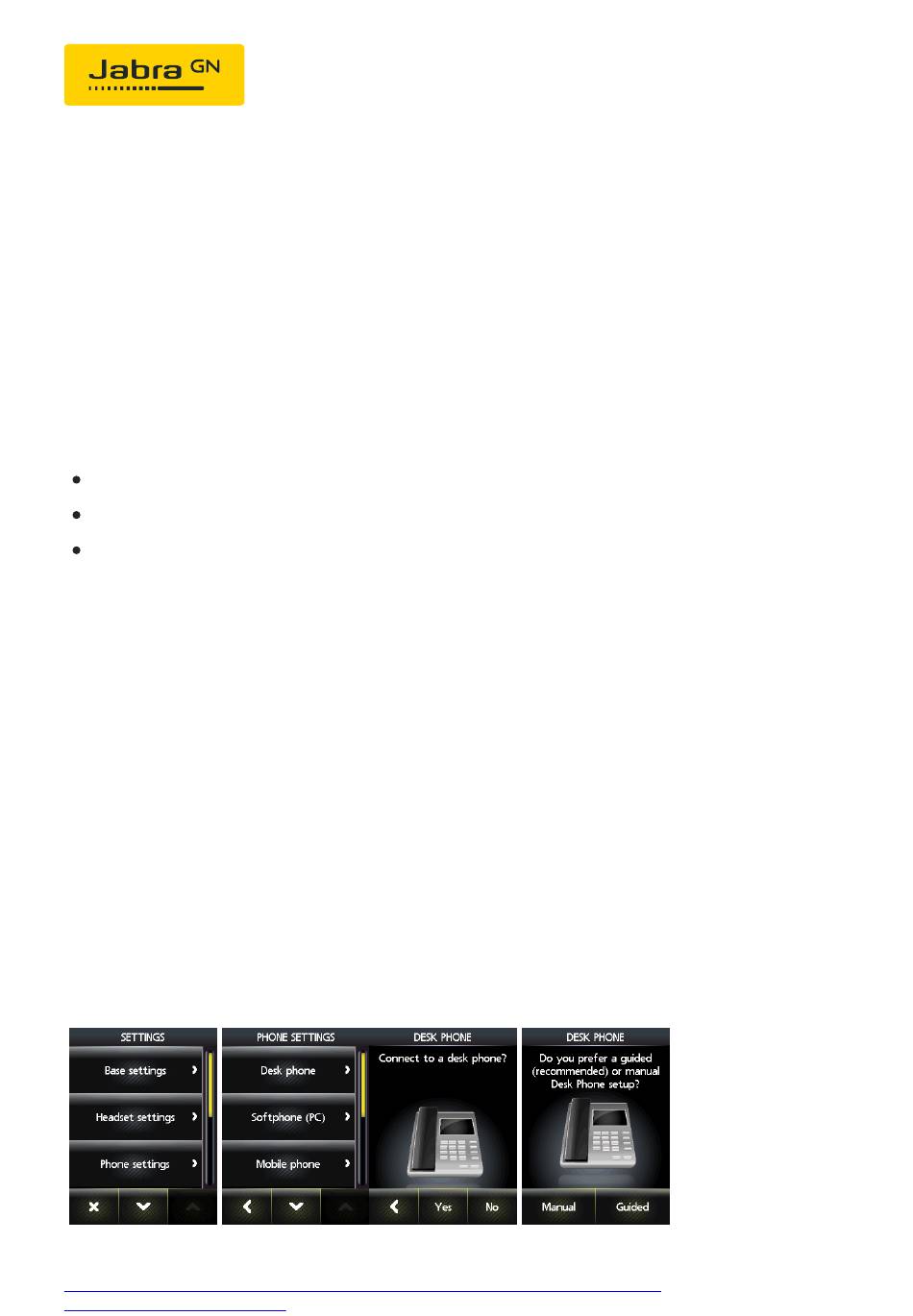

How to connect my Jabra PRO / GO with Avaya 2420, 4610,
4620, 4621, 4622, 4625, 4630, 5420, 5610, 5620, 5621, 5625

Prerequisite:

Jabra PRO 9460 / 9470 + Jabra Link 14201-19
In combination with one of the following Avaya phones:
2420 from Call manager Software 4.0
4610 / 4620 / 4621 / 4622 / 4625 from firmware 1.8
4630 / 5420 / 5610 / 5620 / 5621 / 5625

Connection:

1. Remove your phone's network cable.

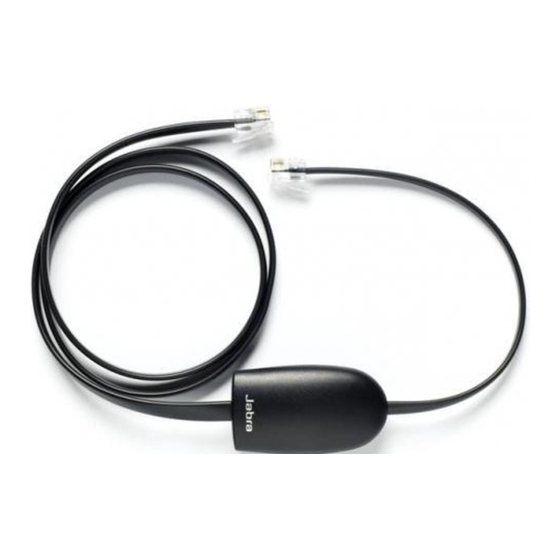

2. Connect the EHS adapter to the "EU24/ ADJ" socket on your Avaya
device and the "AUX" interface on your Jabra PRO 9400 base.
3. Now connect supplied RJ9 to RJ9 cable connection to the socket
marked with the "phone" symbol on the base of the Jabra PRO 94x0
and the other end to the "headset" interface of your phone.
4. Now you can reconnect your phone to the network cable.
Then follow the instructions on the Jabra PRO 94x0 base SmartSetup
Wizard.
https://www.apac.jabra.com/supportpages/jabra-link-14201-19/14201-19/faq/19eb3dbe-
5974-4140-a338-994e194a0f05
29/09/2022 19:47
Page 1 of 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Link 14201-19 and is the answer not in the manual?

Questions and answers

Related Manuals for Jabra Link 14201-19

Summary of Contents for Jabra Link 14201-19

  • Page 1 "AUX" interface on your Jabra PRO 9400 base. 3. Now connect supplied RJ9 to RJ9 cable connection to the socket marked with the "phone" symbol on the base of the Jabra PRO 94x0 and the other end to the "headset" interface of your phone.
  • Page 2 Select the phone setting "Desk phone", then "Connect to a desk phone?", "Manual". Select adapter type "DHSG" Base settings: Set the phone set-up switch to position "A". Microphone level setup: We recommend setting the microphone volume to 7 out of 13. https://www.apac.jabra.com/supportpages/jabra-link-14201-19/14201-19/faq/19eb3dbe- Page 2 of 3 5974-4140-a338-994e194a0f05...
  • Page 3 29/09/2022 19:47 Guided setup: As part of the installation, you can dial into your local Jabra Setup Server, which will configure the audio path. Please follow the instructions shown on the display. If your Jabra Setup Server is unavailable, please contact your local Jabra support team.
