Technaxx
* user manual
®

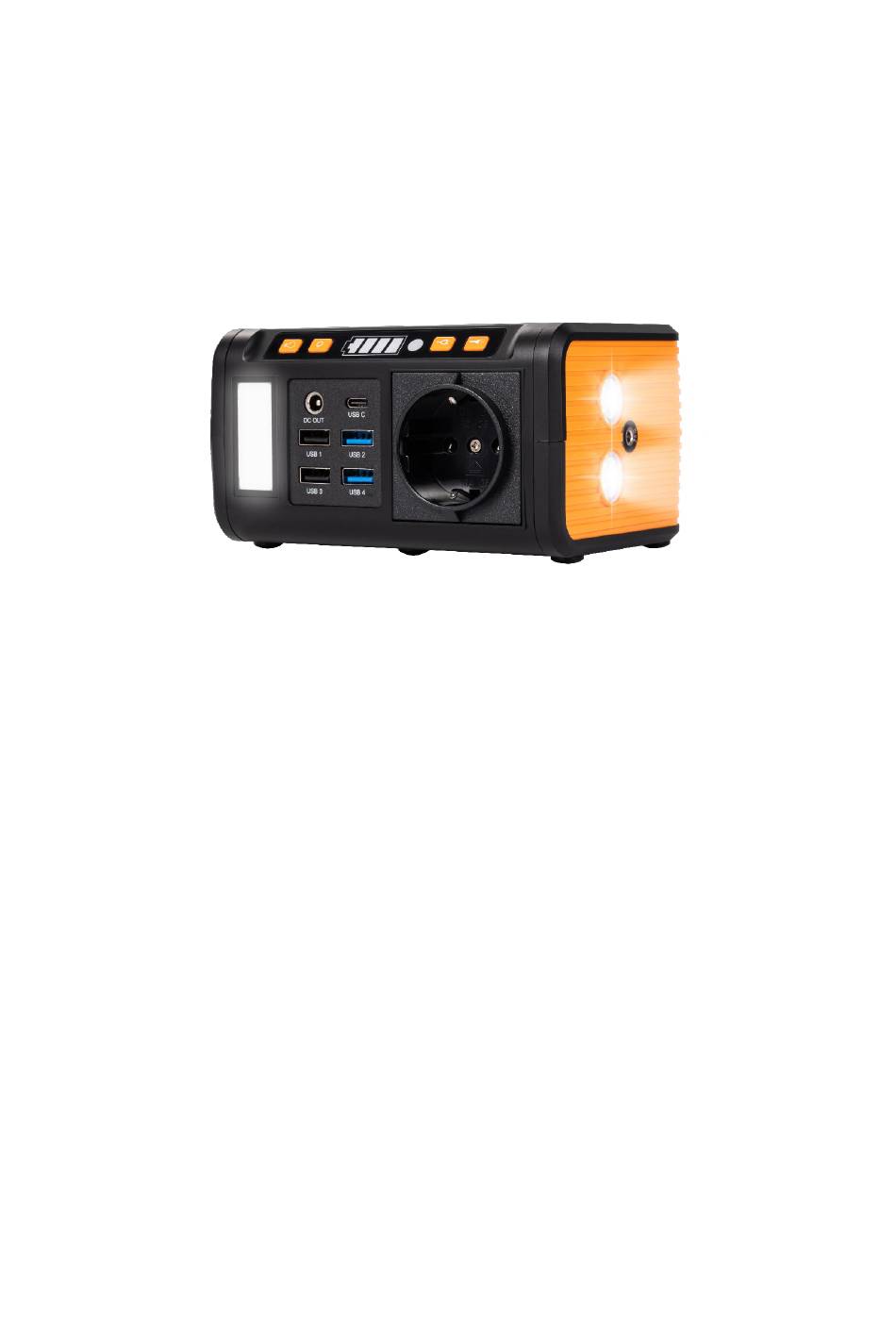

MINI Power Station TX-205
Before using the appliance for the first time, please read the instructions
for use and safety information carefully.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capacities, or
by persons lacking in experience or knowledge, unless they are
supervised or instructed on the use of this device by a person
responsible for their safety. Children should be supervised to
ensure they do not play with this device.
Keep this user manual for future reference or product sharing
carefully. Do the same with the original accessories for this
product. In case of warranty, please contact the dealer or the
store where you bought this product.
Enjoy your product * Share your experience and opinion on
one of the well-known internet portals.
1
Model: TX-205 Article-No. 5014, 09/2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Technaxx MINI TX-205
Summary of Contents for Technaxx MINI TX-205
- Page 1 Technaxx * user manual ® MINI Power Station TX-205 Before using the appliance for the first time, please read the instructions for use and safety information carefully. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capacities, or...
-
Page 2: Table Of Contents
Table of Contents Features ....................2 Danger! ....................3 Hints ......................4 Safety Instructions ................... 4 Technical specification ................5 Product overview TX-205 ................ 6 First use ....................7 How to charge the device ................ 7 By AC-adapter ..................7 By solar panel (not included) .............. -
Page 3: Danger
Danger! ● When using the equipment, a few safety precautions must be observed to avoid injuries and damage. ● We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions. ● Do not use this product near heat sources such as fires or stoves. -
Page 4: Hints
Hints ● The device is intended exclusively for private and not for commercial use. ● Only use this device as described in this user manual. ● Do not place any part of this device in water or any other liquid. ● Do not handle the device with wet hands. -
Page 5: Technical Specification
Technical specification Li-Ion battery 20,000 mAh, 3.7 V (74 Wh) Power supply (input) 19 V DC, 1.5 A Solar panel (input) 15-24 V DC, 1.35 A (max.) 5 V DC, 2.4 A USB-A output 1 & 3 Total: 5 V, 4.8 (max.) USB-A output 2 &... -
Page 6: Product Overview Tx-205
Product overview TX-205 Main view Side view LED panel AC indicator LED panel switch AC power switch DC output (DC5521) Flashlight switch On/Off USB power switch 11 AC output USB-A output 1-4 LED flashlight DC input (charger and USB-C output solar) Battery indicator Ventilation output... -
Page 7: First Use
First use Before using the device, the first time, charge it with the AC- adapter from the package content until the device shows fully charging status. NOTE: Charging may take longer than 5 hours, depending on charging method and battery status. How to charge the device The battery power of the energy storage power supply will be consumed during use. -
Page 8: By Solar Panel (Not Included)
By solar panel (not included) Make sure the solar panel output is in the range of the allowed input parameter (see picture below). The solar panel can only be connected to the “DC IN” plug with a DC35135 connector. NOTE: The solar panel should be placed in a bright area. Prevent sun blocking of the solar panel by leaves or trees for best energy harvesting. -
Page 9: Ac Port (230V Socket)
USB-C AC port (230V socket) To activate the AC port, press the AC power switch. The AC indicator will light up and show the AC unit is ready to use. We suggest to switch the AC port off as long as it is not used, the internal inverter needs battery power as well as no item is connected. -
Page 10: Troubleshooting
Troubleshooting Fault Fault description and handling methods Category Place the device in a cool and ventilated place. Device too hot After the temperature has dropped, the device (over +40°C) can be used normally again - Do not cool down the device by freezing it to avoid damaging it! Place the device in a warm environment and it Device too can be restored after the temperature has risen. -
Page 11: Runtime Of The Different Consumers
Whether the DC switch is on. (On: battery indicator is on, off: the battery indicator is off) Check whether the battery indicator on the switch button is on. If it is off, it may be caused by overload or short circuit or over temperature of the DC module. -
Page 12: Support
Any corrosion must be cleaned off the charging terminals. Declaration of Conformity The EU Declaration of Conformity can be requested at the following address: www.technaxx.de/ (in the lower bar "Declaration of Conformity"). Disposal Disposal of the packaging. Sort packaging materials by type upon disposal. - Page 13 * marked with: Cd = cadmium, Hg = mercury, Pb = lead. Return your product to your collection point with the fully discharged battery installed inside! Made in China Distributed by: Technaxx Germany GmbH & Co. KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany Model: TX-205 Article-No. 5014, 09/2022...
