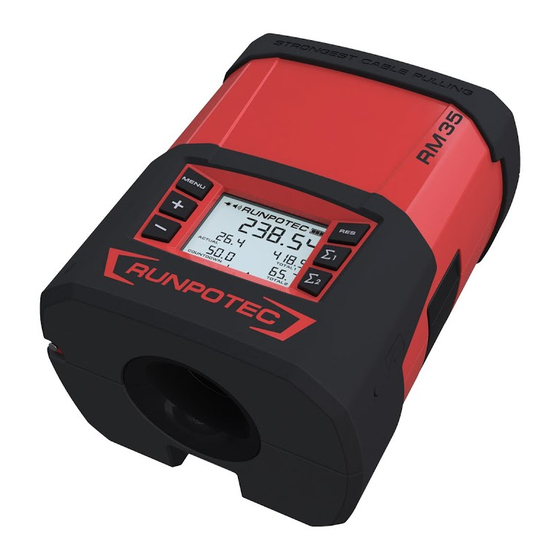

Runpotec RUNPOMETER RM35 Instructions For Use

ENGLISH
10
INTRODUCTION
Thank you for purchasing this RUNPOTEC RUNPOMETER RM35. These
Instructions For Use provide information on safe use. Read the instruc tions
for use thoroughly before commissioning. If you have any questions about
commissioning, assembly, safety and applications, or problems, please
contact your authorised retailer or RUNPOTEC. You will find our contact
data on page 2. See page 4 – 5 for application examples.

IMPORTANT INFORMATION

The RUNPOMETER RM35 is exclusively used for length measurements of
cables and other yard goods.
Liability is excluded for every other use!
Before measuring, check the measuring wheel for wear and tear.

RUNPOMETER RM35 DESCRIPTION/ACCESSORIES

1
Button for opening
2
Cable inlet or cable outlet opening
3
1.5" LCD display
4
USB-C charger socket
5
Index mark – Start/end point for measurement
6
Tempered measuring wheel
7
Guide jaws for precise measurement (2 x 6/24 mm + 2 x 12/18 mm)
Bolt for mounting on mounting plate system case or for fastening a
8
belt with a clip system and anchor pad
9
RUNPOTEC system case with RUNPOMETER RM35 case insert
10
Anchor pad
11
Longitudinally adjustable belt with clip system
12
Mounting plate for fixing on the RUNPOTEC system case
13
Power adapter with USB-C charger cable

DISPLAY KEYS DESCRIPTION

A
Menu Settings
B
Set a plus value
C
Set a minus value
D
Reset measured values
E
∑ Total 1 – (added measured values) = display TOTAL 1
F
∑ Total 2 – (added measured values) = display TOTAL 2
G
Current measured value / counter value (positive/negative)
H
Actual – counts up to the preset countdown value
I
Countdown (adjustable)
J
Pulling direction display
K
Meter / Feet – displays the set unit
L
Display backlighting on/off
M
Audible signal on/off
N
Battery state of charge
All images are representative. Changes and printing errors excepted.
