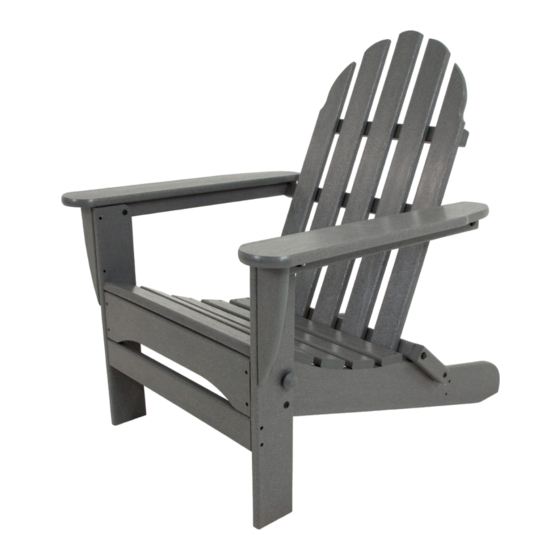

Model: AD5030, AD5031
AD6030
Step 1
Unfold chair assembly
Step 2
Insert (2) 2¼" bolts, washers and locknuts
into pre-drill holes
Then insert pins
TOOLS NEEDED
4MM HEX KEY, ALLEN, T-HANDLE
(INCLUDED)
Qty.
Description
3/4 X 2 ADIRONDACK PIN HDPE
2
A - 1/4-20 X 2-1/4 WAFER SHCS
2
2
B - 1/4 FLAT WASHER
2
B - 1/4-20 NYLOCK NUT
ASSEMBLY INSTRUCTIONS
Step 1
A/B
HARDWARE IS COATED STAINLESS STEEL UNLESS OTHERWISE SPECIFIED
Correct
A/B
Step 2
Incorrect
washer
nut
leg
bolt
11/21/2012
