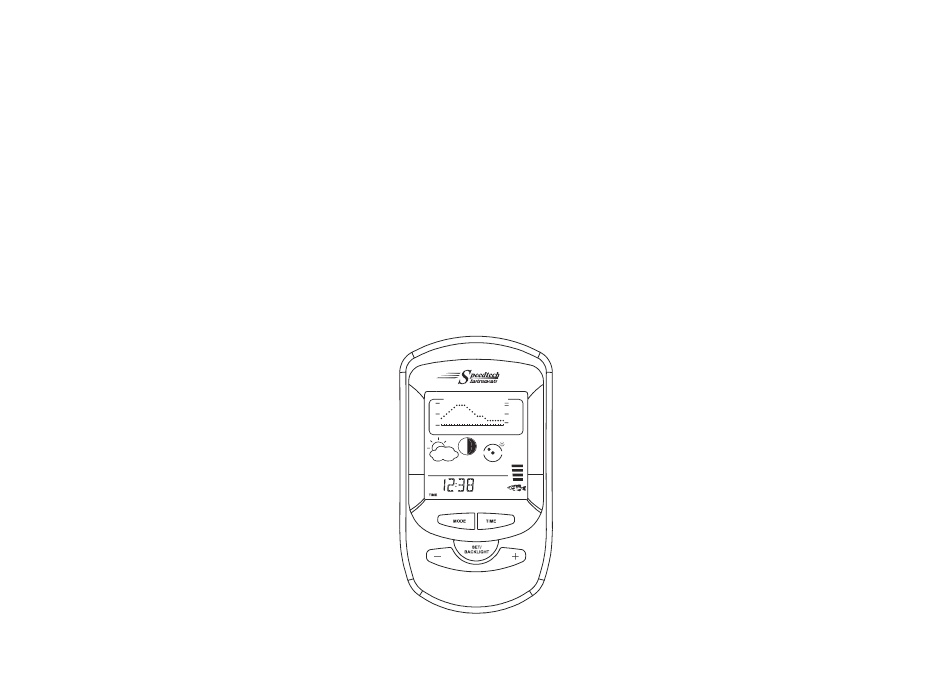

- Page 1 Speedtech Instruments Model: AE-2 Speedtech Angler’s EDGE PLUS User’s Manual FISH 4 6 8 10 12 14 16 18 20 22 24 -24 -22 -20 -18 -16 -14-12 -10 -2 0 FUTURE...
- Page 2 INTRODUCTION SCIENTIFIC BASIS Speedtech’s Angler’s EDGE PLUS is a Anglers and scientists alike identify several handheld precision instrument which tracks sun key factors affecting fish behavior. For and moon positions, barometric air pressure, centuries, fishermen have been aware that and predicts fish feeding activity based on moon phase and position relative to the earth’s those measurements.
-
Page 3: Initial Setup
variety of habitats, detect and respond to INITIAL SET UP barometric pressure changes associated with Two CR2032 Lithium button-cell batteries weather patterns. are included with your Angler’s EDGE. The algorithm developed for the Angler’s Using the provided small screwdriver, EDGE combines moon phase, and sun and remove the battery cover and insert the moon position, with barometric pressure batteries (positive side facing up), closing the... -
Page 4: Basic Operation
BASIC OPERATION DISPLAY A. Present fish feeding activity, 1-10 bars Refer to FULL OPERATION for detailed B. 4-hour future activity (24-hour forecast in instructions. the future time mode) Press and hold the MODE button for 2 C. Weather forecast (on present mode only) seconds to turn on (and off). -
Page 5: Setup Procedures
-- SETUP PROCEDURES -- North American Time Zones: Atlantic Time -4 (-3 during DST) INFO NECESSARY FOR SETUP Eastern Time -5 (-4 during DST) Central Time -6 (-5 during DST) Proper set-up requires the local time and date, Mountain Time -7 (-6 during DST) time zone (hours from GMT), latitude and Pacific Time -8 (-7 during DST) -
Page 6: Detailed Setup
select D/M/S. Then look above the map for DETAILED SETUP latitude/longitude in degrees/minutes (pay If unit is off, press and hold MODE button for attention to the direction as well; North/South two seconds to turn ON. There is a set-up for and West/East). - Page 7 3. The minutes will flash. Press the – or + 9. The time zone will flash. Press the – or + button to set the current minute. Press the SET button to set the local time zone. Press the SET button to confirm.
-
Page 8: Operation And Features
16. The longitude minutes will flash. Press the -- OPERATION AND FEATURES -- – or + button to set the longitude minutes. DISPLAY MODES Press the SET button to confirm. 17. (present mode only) The altitude Press the MODE button to scroll through compensation will flash. - Page 9 FISH FEEDING FORECAST Present 4-hour graph: The unique feature of Speedtech’s Angler’s EDGE is the fish feeding prediction. The graph on the right side of the LCD displays the 6 8 10 12 14 16 18 20 22 24 present fish feeding activity level, on a scale Future 24-hour Graph from 1 (low) to 10 (high).
- Page 10 FUTURE MODE FEATURES current air pressure, the chart on the top of the LCD will display the air pressure history for When viewing the time in future mode, the – the past 24 hours. Each column, right to left, and + buttons can be pressed to scroll ahead or represents one hour in the past.
-
Page 11: Weather Forecast
WEATHER FORECAST SEVERE WEATHER WARNING The Angler’s EDGE measures changing air By definition, severe weather occurs when pressure and predicts short-term changes in barometric air pressure has changed by 6 weather over a small area. In general, falling milibars (up or down) during a three hour air pressure results in worsening weather, and period. -
Page 12: Moon Phase
MOON PHASE The exact sunrise and sunset times can be located by pressing the MODE button and The moon phase is indicated in eight symbols, cycling through the modes, in either present or as shown below. The moon phase is for either future mode. -
Page 13: Warranty
Also be sure to set the altitude adjustment to Speedtech Instruments the current altitude (if known). 45449 Severn Way, STE 165 Sterling, VA 20166...
