User's Guide
RIGOL
Publication number: UGF01103-1110
Mar. 2017
PA1000 Series Power Amplifier
© 2009 RIGOL TECHNOLOGIES, INC. All Rights Reserved.
Arrow.com.
Downloaded from

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rigol PA1000 Series

Summary of Contents for Rigol PA1000 Series

  • Page 1 User’s Guide RIGOL Publication number: UGF01103-1110 Mar. 2017 PA1000 Series Power Amplifier © 2009 RIGOL TECHNOLOGIES, INC. All Rights Reserved. Arrow.com. Downloaded from...
  • Page 2 Arrow.com. Arrow.com. Downloaded from Downloaded from...
  • Page 3 RIGOL Copyright Information  © 2009 RIGOL TECHNOLOGIES, INC. All Rights Reserved.  RIGOL products are protected by patent law in and outside of P.R. China.  The information in this publication replaces all previously corresponding material.  RIGOL TECHNOLOGIES, INC. reserves the right to modify or change part of or all the specifications and pricing policies at company’s sole decision.
  • Page 4 Do Not Operate With Suspected Failures. If suspected damage occurs with the instrument, have it inspected by qualified service personnel before further operations. Keep Proper Ventilation. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 5 RIGOL Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive atmosphere. Keep Product Surfaces Clean and Dry. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 6 Safety Symbols on the Product: Hazardous Safety Protective Chassis Test Warning Earth Ground Ground Voltage Terminal User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 7 RIGOL PA1000 Power Amplifier Introduction The amplifier is one of the options provided for RIGOL DG Series Function/Arbitrary Waveform Generators, with up to 1MHz full power bandwidth and higher than 80 V/µs slew rate, which can be used in fast constructions of a test platform in connection with all DG series products, and as a single power amplifier in coordination with other generators.
  • Page 8 Characteristics and Specifications List the working curves and characteristics of the amplifier. Appendix Information about the accessories, warranties, services, supports and so on. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 9: Table Of Contents

    Chapter 6 Appendix ............. 6-1 Appendix A: Accessories ..........6-1 Appendix B: Warranty ........... 6-2 Appendix C: Care and Cleaning ........6-3 Appendix D: Contact Us ..........6-4 User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 10 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...

  • Page 11: Chapter 1 Quick Start

    The consigner or carrier shall be liable for the damage to the instrument resulting from shipment. RIGOL would not be responsible for free maintenance/rework or replacement of the instrument.

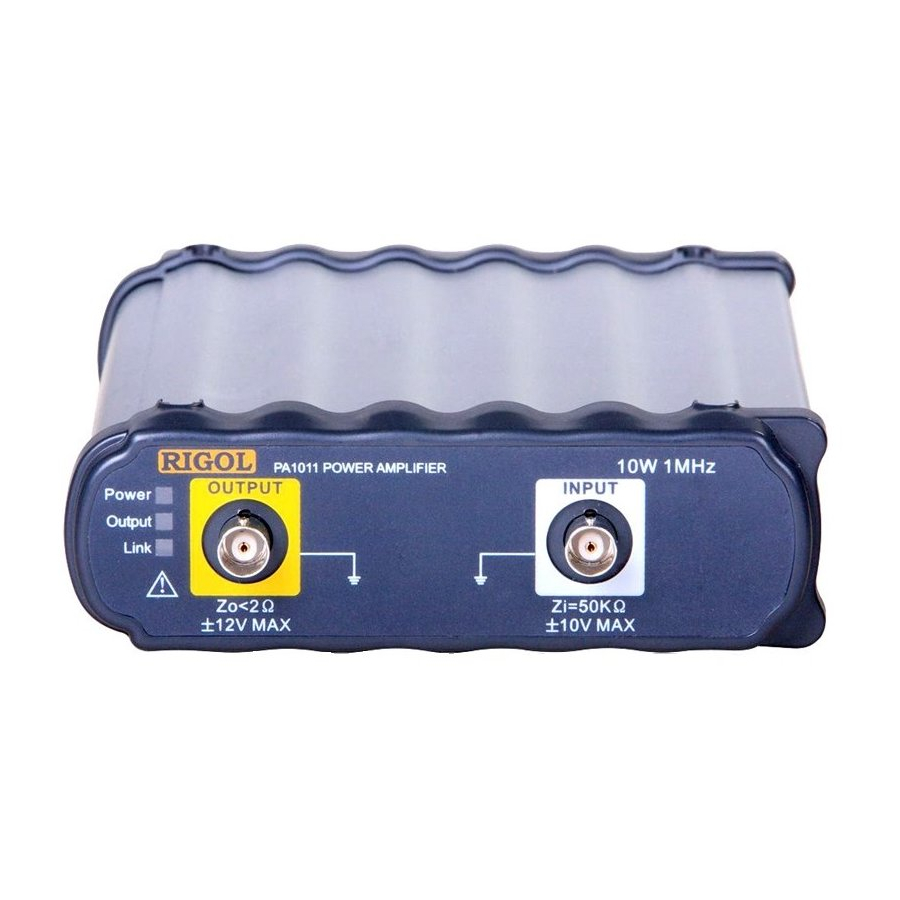

  • Page 12: Front Panel

    The output impedance of the instrument Zo is less than 2, and the range of output voltage is -12V~+12V. Although the amplifier actually enables to output voltages up to ± 12.5V, it may increase the total wave harmonic distortion. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com.
  • Page 13 Power: On Red, indicating the successful power supply to the instrument. Output: On Green, indicating the output is on. Link: On Yellow, indicating the successful connection between USB device and the instrument. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 14: Rear Panel

    Connect the PA1011 to PC with the USB data cable. CAUTION Please make sure the vents at both sides and the fan aperture at the rear panel are visible in operation for normal working. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 15: User Interface

    See figure above, the user interface is a soft panel shown in the computer, users can select or set desired parameters and output status for the instrument by using the keyboard and mouse. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com.

  • Page 16: Installation

    Please correctly connect them together as following steps before use: 1. Software Installation Log in to RIGOL official website (www.rigol.com), and then click Product to select any one of the DG series from the Function/Arbitrary Waveform Generator menu to enter the webpage of the specified product.
  • Page 17 USB driver when connection succeeds for the first time. Figure 1-4 Pop-up Dialog Box Select “No, not this time” and click “Next” to enter the interface below: User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 18 RIGOL Figure 1-5 Select to Install the Driver Automatically Click “Next” to enter the interface below: Figure 1-6 Select the Desired Driver Click “Next” to enter the interface below: User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 19 Quick Start RIGOL Figure 1-7 Install the Driver The figure below will be shown after successful installation: Figure 1-8 Finish the Installation User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 20 For more operations, refer to Chapter 2. Note The instrument should be powered on before USB cable connection if you want to control the instrument by software. Wrong procedures may cause malfunction. 1-10 User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 21: Chapter 2 Operations

    Polarity Sets the desired output polarity. Normal DC Offset ON, OFF Turns on/off the offset setting. ON-OFF ON, OFF Enables or disables the output. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 22: How To Save The Instrument State

    Note: The state saved here is actually the current working state of PA (status sent last time), but not for the options selected on the current control panel. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com.

  • Page 23: Chapter 3 Application Examples

    See the measurement system of a power component below: Power Generator PA1011 Component Probe of Current Monitor User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 24: Magnetization Characteristic Measurements

    PA1011 can measure the magnetization characteristic (B-H curve) of magnetic material (10W driver, with additional impedance transformer), such as the ferrite or amorphous material etc. Magnetic Material Generator PA1011 Oscilloscopes User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 25: Act As Driver Of Piezoelectric Element

    PA1011 because of its tiny output impedance. Generator PA1011 Load Piezoelectric Inverting Element Furthermore, PA1011 could also be used as the driver amplifier in research and development or experiment of other technologies. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 26 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...

  • Page 27: Chapter 4 Troubleshooting

     light is flashing. Overtemperature: The output relay is cutoff, and the green  light is flashing. PA1011 must be restarted after the Circuit Protection is launched. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 28 We kindly suggest you to inspect the load of PA1011 or the ambient temperature and make sure both of these specifications are within the prescribed limits when the Circuit Protection is on. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com.

  • Page 29: Chapter 5 Characteristics And Specifications

    1. DC Working Range Vout/V ( 25 C, Freq≤50Hz) 12.5V 0.5V -0.5A 0.5A Iout/A -0.5V -12.5V 2. AC Working Range User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 30 Please follow the relationship between output voltage and working frequency below when signals are input, in order to maintain the output voltage of PA1011 within curves. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com.
  • Page 31 Thus, we set limits on the relationships between the frequency and the amplitude of output signals which have high amplitude. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com.

  • Page 32: Specifications

    Output Power (RL=7.5Ω) Output Voltage 12.5Vpeak (output: Sine, 100kHz) Output Current 1.65Apeak (input: Sine, 100kHz) Output Impedance <2 Full Power DC~1MHz [Remark1] Bandwidth User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 33 【Remark 3】All above specifications are formed at 25 ℃, the working temperature is between 0 ℃～+35 ℃. Reduce the output power and the working frequency of PA1011 when the ambient temperature exceeds 35 ℃. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com.
  • Page 34 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...

  • Page 35: Chapter 6 Appendix

    An AC Adapter that fits the local standards  A USB Data Cable  A User’s Guide (Hard Copy)  BNC cable  All the accessories below can be ordered from your local RIGOL office. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 36: Appendix B: Warranty

    RIGOL guarantees free replacement or repair for the defective product. To get repair service, please contact with your nearest RIGOL sales or service office. There is no other warranty, expressed or implied, except such as is expressly set forth herein or other applicable warranty card.

  • Page 37: Appendix C: Care And Cleaning

    To avoid damage to the instrument, do not expose it to caustic liquids. WARNING To avoid short-circuit resulting from moisture or personal injuries, ensure that the instrument is completely dry before connecting it to the power supply. User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 38: Appendix D: Contact Us

    Appendix RIGOL Appendix D: Contact Us If you have any problem or requirement when using our products or this manual, please contact RIGOL. E-mail: service@rigol.com Websites: www.rigol.com User’s Guide for PA1000 Series Power Amplifier Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
