Summary of Contents for Strongarm BRK4T
Page 1

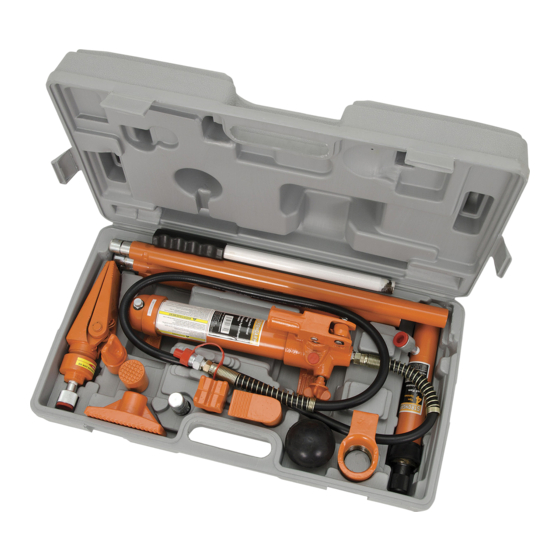

PROD NO. 030202 / 030207 MOD NO. BRK4T / BRK10T 4 & 10 Ton Body Repair Kit Owner’s Manual WARNING: Read all instructions and safety warnings before operating this equipment. Failure to follow the instructions and safety warnings may result in personal injury or property damage.
Page 2
WARNING! The use of shop equipment is subject to certain hazards that cannot be prevented by mechanical means, but only by exercise of intelligence, care, and common sense. It is therefore essential to have personnel involved in the use and operation of equipment who are careful, competent, trained, and qualified in the safe operation of this equipment and its proper use.
Page 3
It is recommended that this equipment be inspected annually by a qualified repair facility. Defective parts, decals, safety labels or signs should be replaced with Strongarm specified parts. SETUP The hydraulic hose is shipped attached to the pump, with a threaded male connector at the opposite end to the pump.
Page 4
OPERATING INSTRUCTIONS A. This kit is designed for the following applications, spreading, bending, stretching, pulling, clamping, pushing, lifting, pressing and straightening. B. Inspect all components prior to using, if any damage, leaking or excessive wear is found, repair or replace prior to using. Hoses should be free from cuts or crimps, all connections to pump and ram should be tight. Keep protective ring on ram when not using threads on the ram. C.
Page 5
PRODUCT NUMBERS 030202, 030207 MODEL NUMBERS BRK4T 4 TON BODY REPAIR KIT, BRK10T 10 TON BODY REPAIR KIT PART NUMBER DESCRIPTION PCN-BRK4T-01 CASE 4 TON PLASTIC PCN-BRK4T-02.1 EXTENSION TUBE I PCN-BRK4T-02.2 EXTENSION TUBE II PCN-BRK4T-02.3 EXTENSION TUBE III PCN-BRK4T-02.4 EXTENSION TUBE IV PCN-BRK4T-02.5 EXTENSION TUBE V PCN-BRK4T-03 FLAT BASE PCN-BRK4T-04 RAM TOE PCN-BRK4T-05 PLUNGER TOE PCN-BRK4T-06...
Page 6
PRODUCT NUMBERS 030202, 030207 MODEL NUMBERS BRK4T 4 TON BODY REPAIR KIT, BRK10T 10 TON BODY REPAIR KIT PUMP REPAIR KIT 4 TON PCN-BRK4T-PRK 10 TON PCN-BRK10T-PRK INCLUDES 1 Each: P02, P06, P07, P08, P09, P11, P14, P19, P20, P21, P22, P24, P25, P26, P27, P28, P29, P30, P31, P32, P33, P34, P35, P43, P44, P45 2 Each: P03, P13, P23 4 TON KIT RAM REPAIR KIT INCLUDES:...
Page 7
PRODUCT NUMBERS 030202, 030207 MODEL NUMBERS BRK4T 4 TON BODY REPAIR KIT, BRK10T 10 TON BODY REPAIR KIT PART NUMBER DESCRIPTION HYD RAM PCN-BRK4T-R01 COVER PCN-BRK4T-R12 PROTECTION CAP SPREADER/PUMP PCN-BRK4T-P17 COUPLER PCN-BRK4T-P18 DUST COVER PCN-BRK4T-P15 RELEASE VALVE PCN-BRK4T-P41 HANDLE WITH GRIP PCN-BRK4T-S4 SPRING PCN-BRK4T-S9 END CAP PCN-BRK4T-S8...
