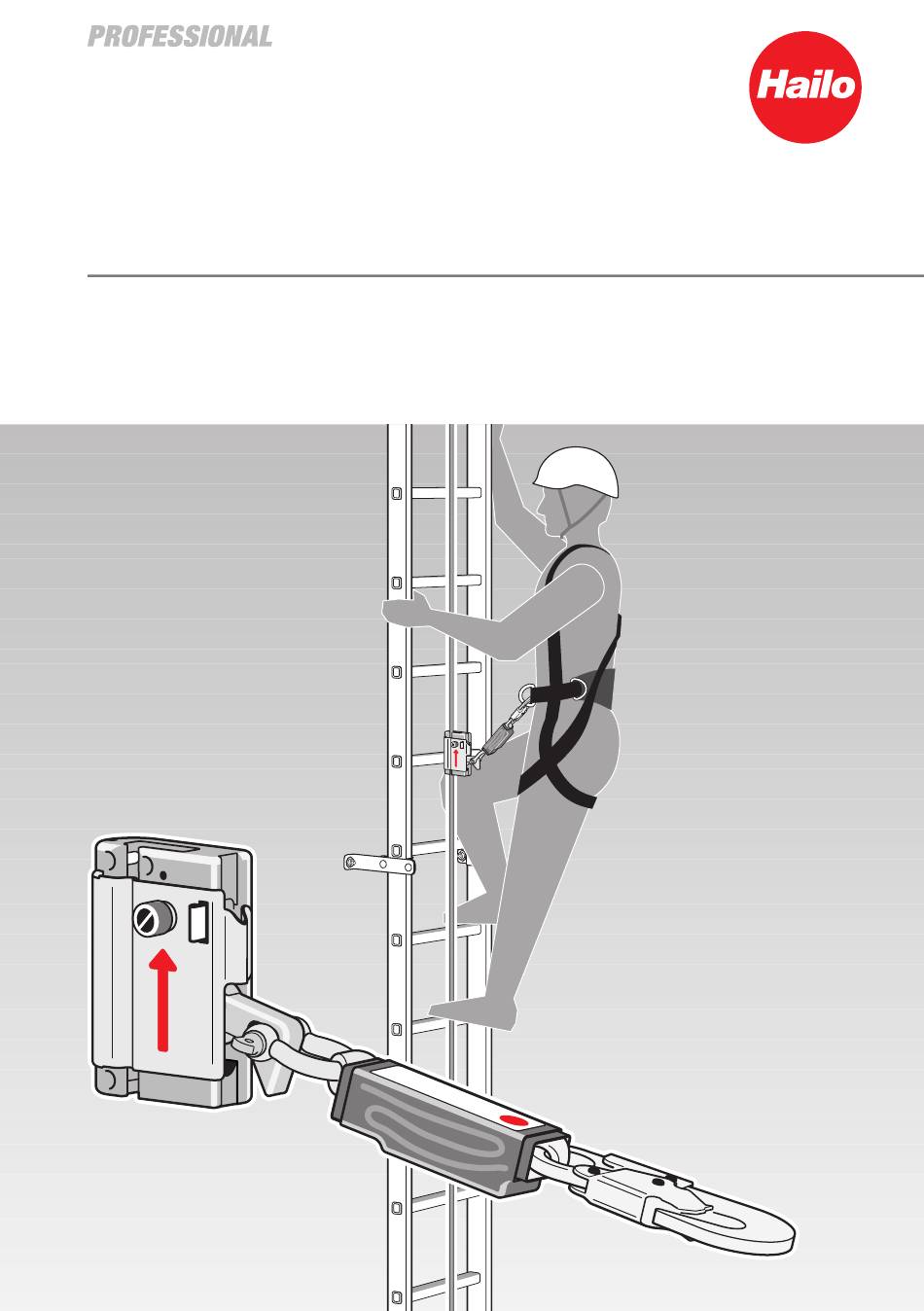

- Page 1 Guided type fall arrester including rigid anchor line - (EU) 2016/425 H-8 System DIN EN 353 -1: 2018 Hailo SSL-8-R1 Fall Arrester and Integrated BFD-50/8-1 Shock Absorber Information booklet about • Using • Care • Inspection...
-
Page 2: General Information, Explanation Of Symbols
For ease of understanding, this brochure has +49 (0) 2773 82-1561 replaced the term used in DIN EN 353-1:2018, “Guided type fall arrester including rigid anchor line”, E-mail: info @ hailo-professional.de with “fall arrest system”. www.hailo-professional.de Certifying and supervising body: DEKRA Testing and Certification GmbH Dinnendahlstr. -
Page 3: Table Of Contents
Contents: WARNING Notes on potentially dangerous situations. 1. General information, If these cannot be avoided, there is a risk of severe explanation of symbols ..2 injuries or death. 2. System data ....4 CAUTION 3. -
Page 4: System Data
2. System data Information on SSL-8-R1 fall arrester SSL-8-R1 fall arrester: ..........BFD-50/8-1 shock absorber . -
Page 5: Intended Use
Any other use (e.g. as workplace positioning or consent of Hailo. Repairs may only be carried out as an anchor point) is prohibited and can lead to using original parts and in accordance with Hai- failure of the safety system in the event of a fall. - Page 6 WARNING a result of a fall, it must be immediately with- drawn from use and returned to Hailo for inspec- Risk of falling! tion and repair. The spring hook on the shock absorber may only...
- Page 7 WARNING Risk of falling! The user should avoid standing in a position directly on the fall arrestor rope above the fall arrester [F]. There is a danger of falling!
-
Page 8: Technical Data
• Max. 3 Personen dürfen das Steigschutzsystem gleichzeitig benutzen. DIN EN 353-1:2018 HAILO H-8 System The H-8 system may only be used with the SSL-8-R1 fall arrester 0158 in conjunction with EN 361 compliant safety belts. ATTENTION! • The safety harness provides protection from a height of 3 m above the access level! (Safety distance = 3 m) •... -
Page 9: Use Of The Ssl-8-R1 Fall Arrester
6. Use of the SSL-8-R1 fall arrester Fall arrester SSL-8-R1 with integrated shock absorber BFD-50/8-1 • The fall arrester SSL-8-R1 [A] is locked to the fall arrester rope before climbing/descending. The fall arrester when attached to the rails is The fall arrester may only be used in the correct fitted with a BFD-50/8-1 shock absorber [B] and direction of pull (red arrow pointing upwards). - Page 10 6. Use of the SSL-8-R1 fall arrester Attaching and removing the fall arrester SSL-8-R1 1. Before using the fall arrester, the fixed and integral spring hook on the shock absorber must be clipped onto the retaining eye on the safety harness, which should be put on beforehand - in accordance with EN 361.
- Page 11 General check and function test • The SSL-8-R1 fall arrester must first be checked visually prior to use. • The fall arrester should only be attached to the wire cable in the correct direction of pull (i.e. with the arrow pointing upwards). The shock absorber must move freely on the fall arrester.
- Page 12 6. Use of the SSL-8-R1 fall arrester Daily functional testing before using the H-8 fall arrest system Carry out this test before using the H-8 fall arrest system. Make sure you are in a safe position before carrying out the functional test. 1.
- Page 13 Additional anchor points WARNING Risk of falling! Both on entering and leaving the fall arrest system, the user must be secured to an approved fastening point appropriate to local conditions to prevent falling. The karabiner [A] is either hooked onto an ap- proved anchor point [B] - according to EN 795 - or another structure! The system may only be entered or left from a...
-
Page 14: Markings
7. Markings SSL-8-R1 Fall Arrester BFD-50/8-1 Shock Absorber [A] Type plate on SSL-8-R1 fall arrester [B] Security advice [C] Test badge [D] Arrow marking THIS WAY UP [E] Type plate on BFD-50/8-1 shock absorber [F] Shock absorber address sticker [G] Packaging label... -
Page 15: Care Instruction
8. Care instruction 9. Inspection instruction Cleaning: • DIN EN 353-1:2018-compliant fall arresters must be inspected and documented for good • Remove soiling from the fall arrester using only working order and functionality at least once a water and an acid-free detergent. year by trained/authorised personnel. -
Page 16: Inspection Plan
10. Inspection plan Test schedule for regular testing of the SSL-8-R1 fall arrester Annual tests are to be documented in the tables below by Result: trained/authorised personnel. In the event of a claim, this documentation must be available in full as evidence. The manufacturer must be granted access to this at all times. - Page 17 Inspection 1 Inspection 2 Inspection 3 Inspection 4 Inspection 5 Inspection 6 Inspection 7 Date Date Date Date Date Date Date (Month / Year) (Month / Year) (Month / Year) (Month / Year) (Month / Year) (Month / Year) (Month / Year)
-
Page 18: Documentation
11. Documentation Inspection of the SSL-8-R1 Fall Arrester Product description Manufacter / Supplier Date of purchase SSL-8-R1 fall arrester HAILO-Werk Daimlerstraße 2, D-35708 Haiger Identification mark Date of the first use +49 (0) 2773 82-0 Serial number +49 (0) 2773 82-1561... - Page 19 Inspection of the BFD-50/8-1 Shock Absorber Product description Manufacter / Supplier Date of purchase BFD-50/8-1 shock absorber HAILO-Werk Daimlerstraße 2, D-35708 Haiger Identification mark Date of the first use +49 (0) 2773 82-0 Serial number +49 (0) 2773 82-1561 Date of manufacture / Expiry date Further information info@hailo-professional.de...
- Page 20 1141289 Revision 2021- 07 Technical changes reserved • •...
