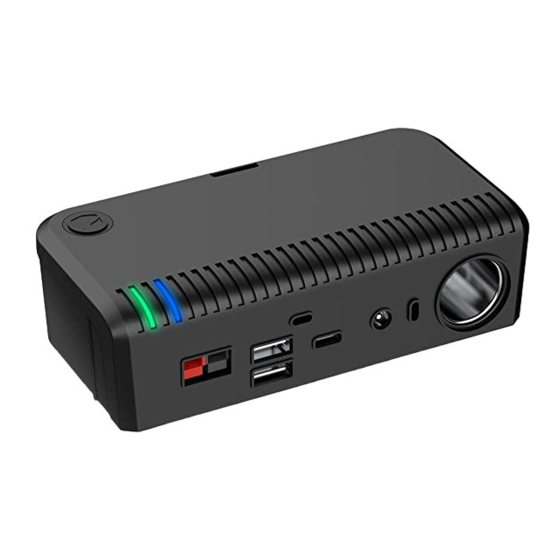

Dr.Prepare PowerMax Instructions

BATTERY CHARGING HUB
FOR 12V LIFEPO4
This user manual offers a brief walkthrough of the
unit's features. Please keep the user manual in
hand for future reference.
Still need help?
Feel free to send us an email at support@drprepare.com
Product Type
Input (Bottom Port)
Output
DSAPMHBT
(Bottom Port)
DC IN
USB-C
USB-A (1)
USB-A (2)
DC OUT
Cigarette Lighter
Size
Weight

Notes:

1. When the DC port and cigarette lighter port are used at the
same time, they deliver 10A Max current in total. Maximum
output wattage depends on the real-time battery voltage.
2. When the USB-C port and USB-A (1) port are used at the
same time, the output is 5V/3A in total. If any of them are
used separately, it supports fast charging.

SPECIFICATIONS

Battery Charging Hub For
(for 12V LiPO4)
Anderson
10V-14.6V
10V-14.6V/12A (Charge Battery)
11V-25V
(Support 100W Solar Panel Charging)
Output
5V/3A, 9V/3A, 12V/2.5A (Max: 30W)
5V/3A, 9V/2A, 12V/1.5A (Max: 18W)
5V/3A, 9V/2A, 12V/1.5A (Max: 18W)
12V/10A
12V/10A
Dimension and Weight
5.51 x 2.79 x 1.57 inches
140 x 71 x 40 mm
0.33 lbs / 150 g

IDENTIFYING PARTS

1
2 3 4 5 6 7 8
1 Power Button 6 USB-A (2) Port (Output)
2 Charging Indicator Light 7 USB-C Port (Output)
3 Discharging Indicator Light 8 DC Port (Output)
4 Dc In Port 9 Cigarette Lighter Port
(Output)
5
USB-A (1) Port (Output)

USING YOUR CHARGING HUB

1. Press the power button to turn on the output, and press the
power button again to turn off the output.
2. When there is no load, or when the BMS detects the output
current is consistently below 100mA, it will automatically
shut down after output in 2 hours.
Anderson Port
1. Anderson port does not have reverse connection
protection. Make sure the positive pole (red) and negative
pole (black) are correctly connected. We advice you to use
this hub with our 12V LiFePO4 battery. If you have other
compatibility requirements, please consult our technical
personnel before use.
9
