CVS Pharmacy KD-2220 - Digital Temple Thermometer Manual

Read instruction manual before using thermometer

Quick Start

1. Install batteries into the thermometer making sure the polarity is correct.
2. Press and release the POWER button. Unit will beep once. Wait until it beeps again twice and only °F shows in the display.
   Do not place the probe to the temple before the 2 beeps or while the hour glass is still displayed
3. Place and hold the thermometer probe firmly to the skin at the temple, wait several seconds for the device to beep once more.
   Once you place the probe to the temple, there is no need to press the POWER button again. Doing so will turn the unit off.
4. Read the temperature on the display.

POWER SOURCE
SIZE AAA 1.5V x 2 (included)

Important Things to Know

1. Use the thermometer to measure your temple temperature only, the area between the outer corner of the eye and the hairline, over the temporal artery.
2. Do not place the thermometer on scarred tissue, open sores or abrasions.
3. Using drug therapies can raise skin temperature, which may lead to incorrect measurements.
4. Do not dismantle the unit except to replace the batteries.
5. Children should not use the thermometer without adult supervision.
6. Do not drop or expose thermometer to electric shock as this may adversely affect its performance.
7. The thermometer is not waterproof. Do not immerse it in water or liquid of any kind.
8. To ensure correct readings, wait at least 2 minutes between continuous measurements for the thermometer to return to room temperature.
9. Do not use the thermometer around flammable materials.
10. Stop using the thermometer if malfunctions appear or if it operates abnormally.
11. Clean the thermometer probe after each measurement.
12. Do not take a measurement if the temple area has just been exposed to direct sunlight, fireplace heat or air conditioner flow, as this may lead to incorrect readings.
13. If thermometer has been kept or stored in a cold temperature, please wait at least 1 hour for it to return to room temperature before measuring.
14. Performance of the thermometer may be degraded if the unit is operated or stored outside the stated temperature or humidity ranges, or if the patient's temperature is below room temp.
15. Body temperature, like blood pressure, varies from person to person. During the day, it can range from 95.9°F to 100.0°F (35.5 to 37.8°C). For some people there can be a difference between their temple and body temp. We recommend learning what your normal temple temperature is while healthy so you can detect an elevated one when you become ill. For accuracy, be sure to measure the same area of the temple each time.
16. Avoid taking a measurement for at least 30 minutes after physical exercise, bathing or eating.
17. Make sure the temporal area is dry and clean of sweat, make-up, etc.
18. The device is intended for consumer use only.
19. Calibration is recommended every two years.

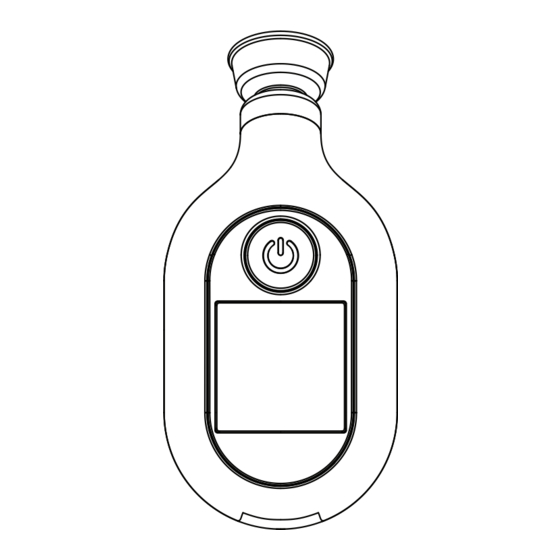

Parts Identification

What are normal temperature values?

Human body temperature varies from person to person. Also, a person's body temperature can fluctuate throughout the day. Therefore, it is very important to know your normal body temperature range. Therefore, we recommend you measure yourself when healthy to establish referenced temperatures which will make you feel more confident of the measured temperature readings when ill.

Preparation for Use

Installing/Replacing the Battery:

1. Pull the battery cover off in the direction shown.
2. Prior to installing new batteries you must clean the metal contact ends of the batteries and the metal springs and contacts for the batteries in the battery compartment.
3. Install 2 new "AAA" batteries into the battery compartment matching correct polarities.
4. Replace the battery cover securely.

1. Do not dispose of batteries in regular household trash, refer to your local disposal laws and manage as hazardous waste.
2. Do not recharge, put in backwards, disassemble or dispose of batteries in fire. Doing so may result in explosion, leakage and injury.

1. Replace both batteries at the same time. Do not mix old and new ones.
2. Never mix alkaline, standard (carbon zinc) or rechargeable (nickel-cadmium) batteries.

How to Operate the thermometer

1. Press the POWER button to turn on the unit. A beep sound follows.

2. The last memory is displayed.

3. You will hear 2 beeps with the measuring scale shown below.

4. Put the thermometer on the temple. It will beep one time to present measurement completion.
5. The display will light according to the reading. Please refer to table below.
6. If the temperature reading is over 99.5°F(37.5°C), eight consecutive beeps will be heard to indicate fever alarm.

7. Once the measurement is done, you will hear 2 beeps indicating the reading has been recorded and it is ready to take the next measurement. However, we do not recommend consecutive measurements.

8. Turn off the unit by pressing the POWER button, or the unit will automatically turn off (and beep) after 1 minute of inactivity.


Switching between Fahrenheit and Centigrade Scale:

You can switch between °F and °C scales. Within 3 seconds after turning on the device, again press and hold the POWER button. The display will show "CH" with "°F" or "°C".

Memory Mode

Recalling Memories:

1. Begin with the unit turned off.
2. Press the POWER button and hold for approximately 3 seconds until the most recent memory is shown, then release.
3. Press and release the button again and again to scroll through the remaining previous memories.

4. When you are finished viewing stored memories, discontinue pressing the button. After a short pause, you will hear 2 beeps indicating the unit is ready to take a new measurement.


Deleting Memories:

If you choose to delete memories on the thermometer, this may be done after step 2 or 3 of Recalling Memories.

It is not necessary to delete memories, it is simply an option. Oldest memories will automatically be deleted as you take new measurements. Removing the batteries will also delete all memories from the unit.

~ NOTE ~
ALL memories will be deleted in this process, you cannot delete just one single memory

1. As you are scrolling through and viewing stored memories, at any time you may press and hold the POWER button for 3 seconds until dEL displays - then release the button.

2. While dEL is still displayed, press and release* the POWER button once more to finish the delete process. OFF will show on the display and all stored memories are now deleted.


*If you do not press and release the POWER button in this step, the thermometer will return to recalling memories

Cleaning and Care

	Do not drop the unit or expose to heavy or electric shock as this will adversely affect it's performance. Unit is not shock proof.
	Wipe the tip and probe with a cotton swab moistened with rubbing alcohol, or use an alcohol wipe, before and after each use. Then wait at least 2 minutes to allow the unit to readjust to room temperature before taking another measurement.
	If necessary, use only a soft cloth to clean the body of the thermometer. Avoid using thinner, benzene or other harsh cleaners. Do not use an abrasive cleanser and NEVER submerge the thermometer in water or any other liquid.
	Remove the batteries if the thermometer will not be used for a long period of time.
	Do not expose the unit to extreme temperatures (cold or hot), high humidity or direct sunlight. Thermometer should be stored at normal room temperature.

Troubleshooting

Message	Instruction
	The temperature measured was higher than the specified measuring range. Wait 2 minutes and try again.
	The ambient (room) temperature was outside the operating range. Keep it at room temperature (approx. 60~104°F ) for 30 minutes before using.
	Poor contact caused the thermometer t o stop measuring. The thermometer will power off automatically. Please measure again.
	The thermometer has malfunctioned. Please contact distributor
	Indicates a low battery condition. Replace with 2 new "AAA" batteries as soon as possible.
	Replace with 2 new "AAA" batteries immediately.

Specifications

Measurement Time:
6-10 seconds

Measurement Location:|
Temporal artery area of forehead

Measurement Range:
95.0ºF - 107.6ºF (35ºC - 42ºC)

Operation Environment:
60.8ºF - 104ºF (16ºC - 40ºC)
Humidity: 15 - 95% non condensing

Storage Environment:
-4ºF - 122ºF (-20ºC - 50ºC)
Humidity: 15 - 95% non condensing

Measurement Readout:
Fahrenheit or Celsius

Accuracy:
±0.2ºF (98-102ºF) ±0.1ºC (37-39ºC)
±0.3ºF (96.4-97.9ºF) ±0.2ºC (35.8-36.9ºC)
±0.3ºF (102.1-106ºF) ±0.2ºC (39.1-41ºC)
±0.5ºF less than 96.4ºF ±0.3ºC less than 35.8ºC
±0.5ºF greater than 106ºF ±0.1ºC greater than 41ºC

Batteries:
2 AAA 1.5V batteries (included)

Battery Life:
Min. 1000 full duty cycles over 24 month period

Weight:
1.9 oz (55 gr) including batteries

Dimensions:
3.82 x 1.81 x 1.26 inches
9.7 x 4.4 x 3.2 centimeters

Memory:
Nine sets

Auto Shut Off:
after 60 seconds

Warranty:
1 year - excluding batteries

Classification:
Internally powered Type BF equipment

This device complies with requirement of ASTM 1112 Standard Specification for Electronic Thermometer for Intermittent Determination of Patient Temperature, EN 12470-3 Clinical thermometers Part 3: Performance of compact electrical thermometers (non-predictive and predictive) with maximum device.
