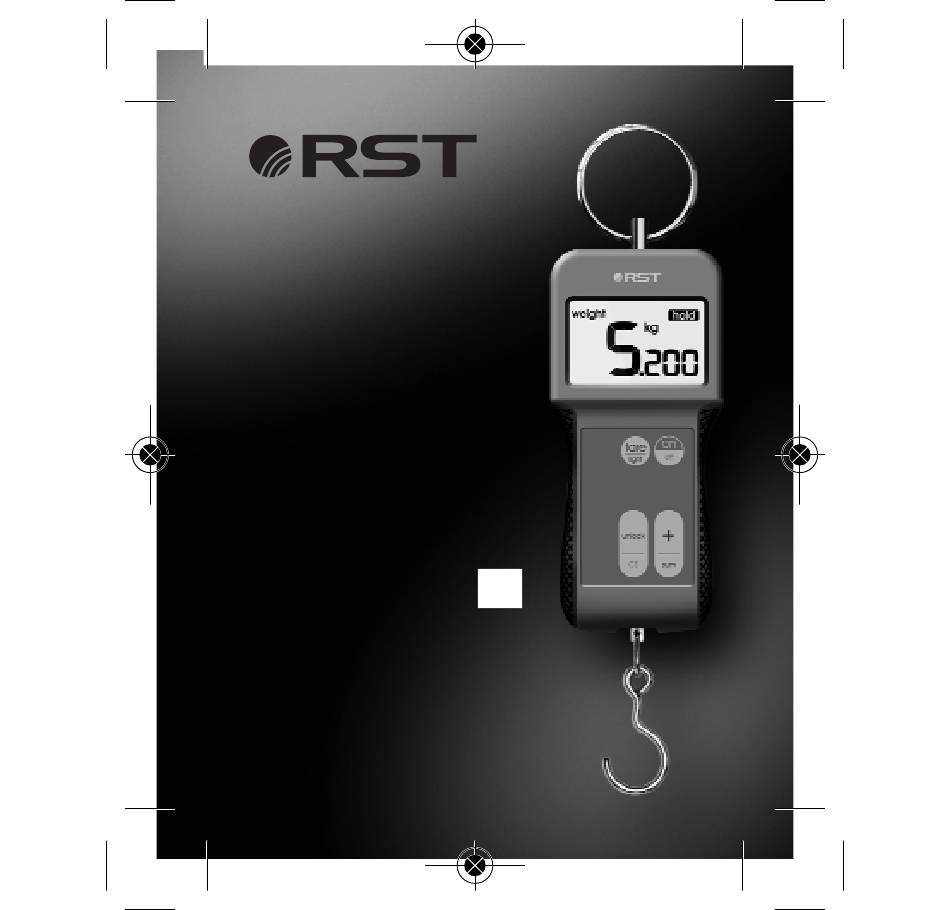

- Page 1 08087_Manual:08087Manual 05.12.2011 13:26 Page 1 08087 DIGITAL SCALE user manual...
- Page 2 08087_Manual:08087Manual 05.12.2011 13:26 Page 2 Main functions • 4 buttons: on/off, tare/light, +/sum, un- lock/ce • Working Voltage: 3 V • Working temperature: -20... 50 • Maximum weight: 30 Kg • Minimum weight: 0.010 Kg • Scale division: 0.010 Kg •...
- Page 3 08087_Manual:08087Manual 05.12.2011 13:26 Page 3 turn on or turn off the backlight. After turn on the backlight, press any button can light the backlight for 7 seconds, it will turn off after 7 seconds without any operation. When the scale turns off, the backlight will turn off automatically.
- Page 4 08087_Manual:08087Manual 05.12.2011 13:26 Page 4 Pic.2 Operation and display 1.Button RST08087...
- Page 5 08087_Manual:08087Manual 05.12.2011 13:26 Page 5 2.Button detailed operation 2.1 on/off (power on and power off) A. Press on/off button once, MCU will let it power on, it will be in full display in 2 sec- onds, just as the display in Pic.1, then enter to the weighing mode (as pic.2).
- Page 6 08087_Manual:08087Manual 05.12.2011 13:26 Page 6 and hold “on/off” button for 3 seconds to make it power off and then enter the shut- off mode. C. it will power off automatically in 90 sec- onds without any operation. 2.1 on/off (power on and power off) A.
- Page 7 08087_Manual:08087Manual 05.12.2011 13:26 Page 7 Pic.3 B. If after tare, the tare is lower than 10 Kg, the LCD will show the minus, it will show -9.99 kg as pic.5), then press “tare” button once again, it will reset to zero. If tare is over than 10 Kg, on the LCD will show Err.
- Page 8 08087_Manual:08087Manual 05.12.2011 13:26 Page 8 C. After power on, press and hold “tare” button for 3 seconds, it will turn on the backlight and light for 7 seconds. After the backlight turns on, press any button can light the backlight for 7 seconds, it will turn off after 7 seconds without any operation.
- Page 9 08087_Manual:08087Manual 05.12.2011 13:26 Page 9 Pic.6 B. After weighing all the things, press and hold “sum” for 3 seconds to calculate total weight of weighing things, it will show “sum” on the LCD (as Pic.7). (the sum total weight can’t be over 100 Kg, otherwise, it will show HI on the LCD (as pic.8) and with alarm sound “overload”, and with third sounds.
- Page 10 08087_Manual:08087Manual 05.12.2011 13:26 Page 10 Pic.8 C. The time for showing the total weight is 30 seconds, after 30 seconds, it will exit and return to the weighing mode, or press sum button again to return to weighing mode. 2.4 unlock/ce (clear the sum total weight) A.
- Page 11 08087_Manual:08087Manual 05.12.2011 13:26 Page 11 Pic.9 Function description 1. weighing A. Maximum weight 30kg B. Scale division: 0.010 Kg C. Auto-lock: when it locks, the LCD show hold symbol (as pic.6) with sound “Click” twice (Hold), the time for lock is 30 sec- onds, within seconds,...
- Page 12 08087_Manual:08087Manual 05.12.2011 13:26 Page 12 Specification Item Unit Min Typ. Max Power Voltage Current for Power off Current for Backlight Current for working Weighing range 0.010 --- 31.000 Scale division --- 0.010 --- Power Voltage 2х1.5V "AAA" Room temperature о С...
