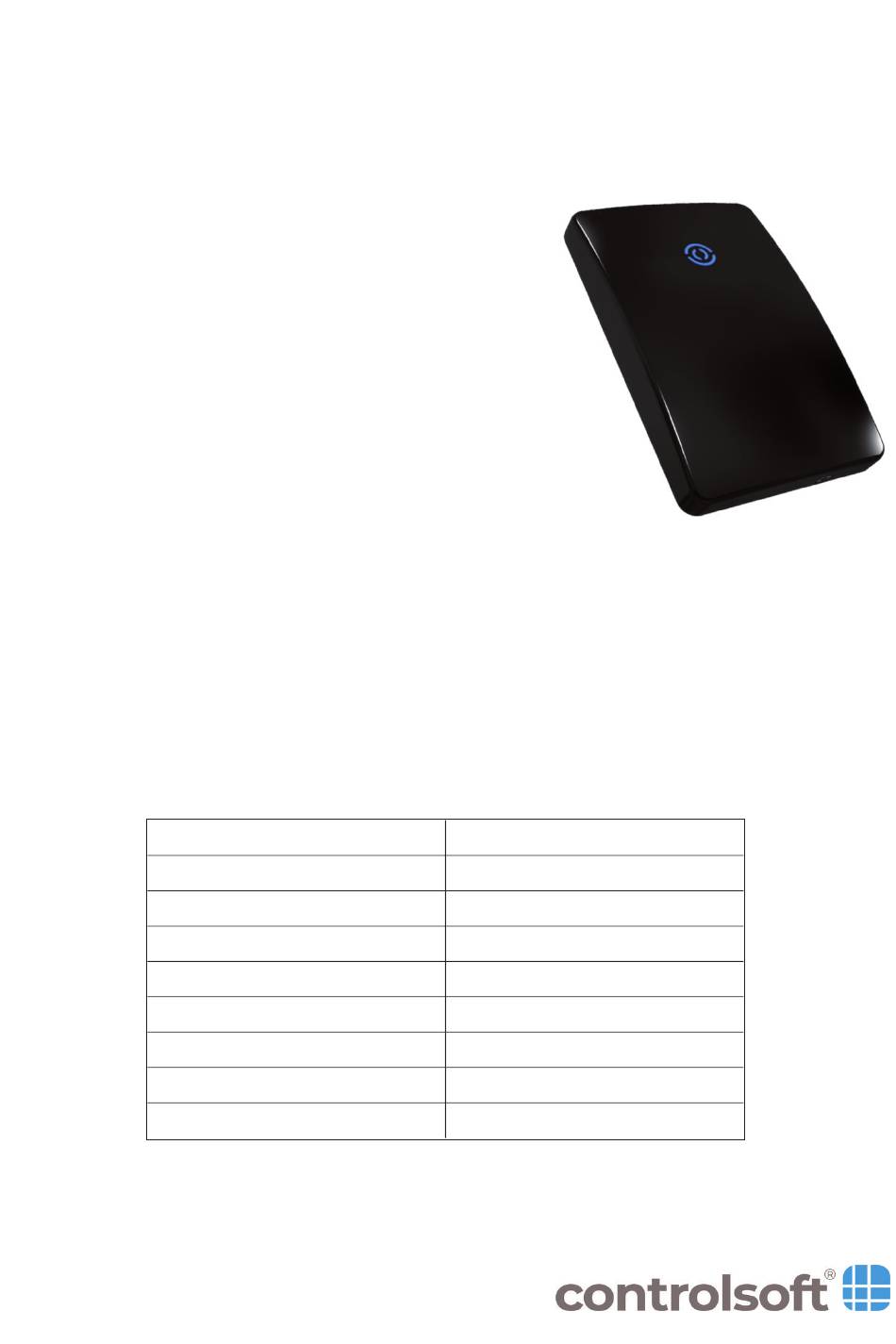

Installation Instructions
Introduction
The RX Series readers are attractive and durable
proximity readers. A piezo buzzer and tri-colour
LED indicate reader status to make the device
very easy to use. The reader circuitry is encased in
a durable, waterproof resin, making it suitable for
both internal and external use.
"00" variants use 125KHz Controlsoft Proximity cards
and tags
"80" variants support 13.56MHz MIFARE & DESfire
"80+" variant support all above cards and tags.
"K" variants include an integral keypad
Step 1: Mount the Reader
Use the reader base to mark the position of the fixing screws, plus one hole for the
connection cable. Drill the holes and plug the mounting holes, connect the cable as
shown below, fix the base to the wall and fit the reader to the base. Alternatively, the
"RX-1" Series are designed to mount to a standard UK single gang backbox.
Step 2: Connect the Reader to the Access Control Unit
The reader has 8 terminal blocks for connection to the Access Control Unit (ACU):
Connect the reader as described in the Installation Instructions for the ACU, using
screened, non-twisted cable such as Belden 9538. The distance between the reader
and the ACU must not exceed 150 metres.
Terminal
1
2
3
4
5
6
7
8
9010-0041 Issue 3
Part Code: RX-100; RX-180; RX-180+
RX-1K00; RX-1K80; RX-1K80+
RX-300; RX-380; RX-380+
RX-3K00; RX-3K80; RX-3K80+
RX-400; RX-480; RX-480+
Signal Description
+12Vdc (100mA)
Data 1
Data 0
Green LED Control
Red LED Control
Buzzer Control
Not Used
Ground (0V)
Proximity Reader
www.controlsoft.com
