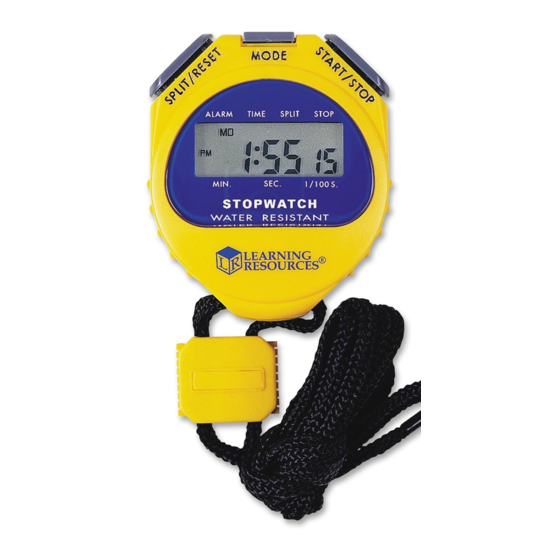

Stopwatch (C-510)
User Manual
Time/Calendar display:
Hour, minute, second, month, date and day.
Stopwatch:1/100 sec. for 30 min., 1 sec. up to 24 hours.
Changeover between 12 and 24 hour indications.
Note: Depress A to select the desired mode.
NORMAL MODE:
TIME
Hour, minute and seconds are displayed.
ALARM
Keep C depressed to read the alarm time.
(This illustration shows that the alarm keeps at 6:30am).
ALARM ON/OFF
Alarm engaged.
Keep B and C depressed at the same time.
CALENDAR
Month/Date
Keep B depressed, month, date and day are displayed.
12 or 24 HOUR INDICATION
Select 12 or 24 hour cycle option when setting normal time,
hour by advancing figure to A for 12 hour mode or H for 24
hour mode.
STOPWATCH MODE:
Depress A to activate this mode.
B Start/Stop C: Split/Split release/Reset
Depress C to reset the stopwatch to "0.00
Accumulated elapsed time measurement: B-B-B-B-C
0 : 00
00
Split time measurement: B-C-C-B-C
0 : 00
00
Measurement between two competitors: B-C-B-C-C
0 : 00
00
Depress A to return to the normal mode.
TIME/CALENDAR SETTING MODE:
Depress A three times to activate this mode.
Depress C to select the digits to be adjusted(flashing).
0 : 09
36
Depress B to reset the seconds to 00 or to set the other digits. Keep B depressed to
advance the digits quickly.
Note:When the seconds count any number from "30" to "59" and C is depressed one
minute is added. Depress A to return to the normal mode.
ALARM SETTING MODE
HOUR
Depress A twice to activate this mode.
Depress B to advance the hour.
MINUTE
Depress C to activate this mode. Depress B to advance
the minute. Depress A to return to normal mode.
HOW TO SET THE HOUR CHIME ON
Depress C, alarm time displayed. Hold it.
Depress A, until all the days of the week appear,
the hour chime is on. The stopwatch is set with hour chime.
HOW TO SET THE CHIME OFF
Depress C, alarm time displayed. Hold it.
Depress A, until all the days of the week have disappeared,
the hour chime is off. No hour chime.
HOW TO SET THE SNOOZE FUNCTION ON
When the alarm is on, depress B, then the alarm will be off. In around 5 minutes, the alarm
will be on again.
HOW TO SET THE SNOOZE FUNCTION OFF
If you do not need the snooze function, depress C, when the alarm is on. The alarm will be
off, and the snooze function also off. When the alarm button is on around one minute, if no
button is depressed, the alarm will be off and the snooze function is also off automatically.
0 : 10
08
26 : 13
29 : 21
21
0 : 12
08
0 : 09
0 : 09
36
2 : 8
before using the stopwatch.
00°"
0 : 18
20 : 00
08
2 : 10
45
0 : 15
0 : 15
08
2 : 8
36
2 : 8
A
C
MODE
ALARM
TIME
SPLIT
TU
24 : 08
05
MIN.
SEC.
STOPWATCH
WATER RESISTANT
5 : 30
AM
6 : 30
AM
6 : 30
AM
2 : 10
10 : 09
22 : 09
0 : 00
08
00
0 : 00
12
00
0 : 00
08
00
3 : 30
3 : 30
12 : 00
12 : 00
B
STOP
1/100 S.
36
A
A
P
H
A
A
A
A
