Summary of Contents for AllSportSystems STUDIOBAY

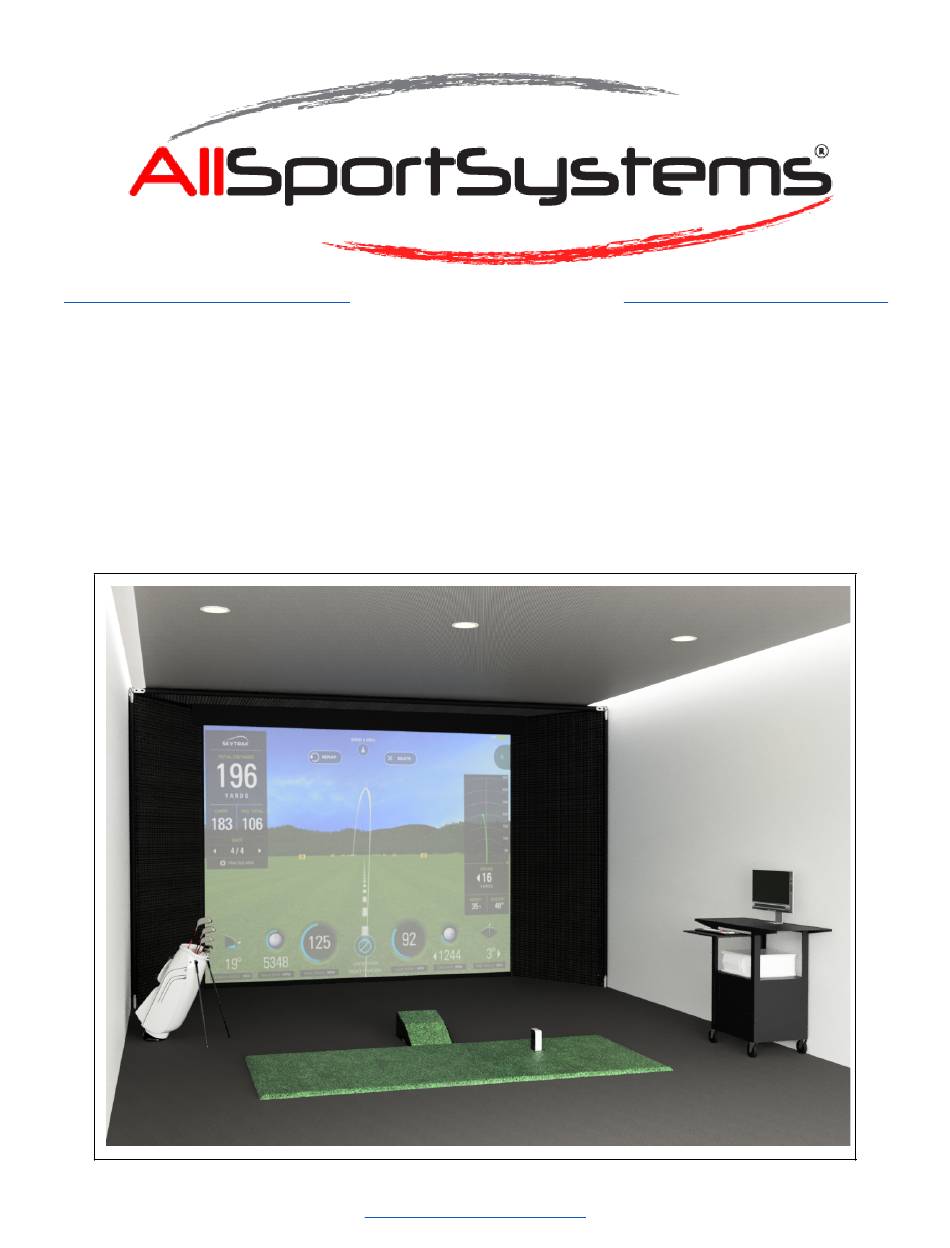

- Page 1 © AllSportSystems, Inc. 2021 sales@allsportsystems.com 877-847-1280 www.allsportsystems.com SETUP GUIDE FOR THE STUDIOBAY™ Golf Simulator Screen Systems Page 1 of 35 Return to Table of Contents Last Revised 6/7/22...
- Page 2 © AllSportSystems, Inc. 2021 Page 2 of 35 Return to Table of Contents Last Revised 6/7/22...
-
Page 3: Table Of Contents
© AllSportSystems, Inc. 2021 Table of Contents ITEMS YOU WILL NEED MEASURING AND CUTTING EMT POLES ITEMS PROVIDED BY ALLSPORTSYSTEMS BUILDING THE FRAME TOP NETTING BLACKOUT CABLES FOR SIDE SHADE AND SIDE NETTING BAFFLE NET GOLF IMPACT SCREEN SHOTDEFENDER™ ANGLED SIDE SHADES... -
Page 4: Items You Will Need
© AllSportSystems, Inc. 2021 For safety we recommend at least two persons to be on hand to assemble your enclosure. ITEMS YOU WILL NEED Tools/Equipment Six foot step ladder Wrench Set Screwdriver Scissors/Utility Knife Hacksaw/Tubing Cutter (or ask the store to... -
Page 5: Measuring And Cutting Emt Poles
CENTER SUPPORT: Only required on Purchase Locally: Purchase Locally: StudioBay systems 16’ wide or larger. 11 ea 10ft - EMT pole (1" Common) 11 ea 10ft - EMT pole (1" Common) Customers with a SkyRailPLUS will not 3 ea 10ft - STRUT (shallow channel) 3 ea 10ft - STRUT (shallow channel) need the Center Support Strut. - Page 6 © AllSportSystems, Inc. 2021 EMT poles Strut Channels for custom sized bay: Review the chart below to determine the number and sizes of EMT and STRUT needed for your custom bay. The general concept is to make the poles slightly smaller than the finished height, depth or width to allow for connectors.
-
Page 7: Items Provided By Allsportsystems
© AllSportSystems, Inc. 2021 ITEMS PROVIDED BY ALLSPORTSYSTEMS OTHER ITEMS: ITEM QTY DESCRIPTION ITEM QTY DESCRIPTION Cable zip ties Multiple BlackOut™ Wrapper Kit pieces Stainless Steel Cables & 4 ea Netting Sections 3 ea Turnbuckles: 1 ea for ShotDefender™ 2 ea for Netting Support... -
Page 8: Building The Frame
© AllSportSystems, Inc. 2021 BUILDING THE FRAME Frame Diagram Refer to this diagram often to identify connectors and poles needed for the step by step instructions on the following pages. Note: Corner brackets add approximately 3” to the size of your enclosure. Therefore, once poles and brackets are assembled an additional 3”... - Page 9 © AllSportSystems, Inc. 2021 Back, Bottom and Depth Poles If the hitting bay is closer than 6” to ceiling see APPENDIX B - BUILDING THE FRAME (For Low Ceilings). Two persons recommended along with use of a stepladder. Position connector eye bolts inward.
- Page 10 © AllSportSystems, Inc. 2021 Add Height poles with T-connectors Attach the four T-Connectors to the ends Slide the two height poles onto the top of two height poles. and bottom depth poles through the T-Connector. Secure these height poles 12 inches from the back of the frame.
- Page 11 © AllSportSystems, Inc. 2021 Add Front Height poles with 90o-Elbows Attach the four 90 Degree Elbows to the Slide the last two height poles onto the ends of the last two height poles. ends of the top and bottom depth poles.
- Page 12 © AllSportSystems, Inc. 2021 Add extender struts and SkyBridge brackets Add extender struts to each of the 10’ Attach SkyBridge Brackets to each width struts using strut couplers. end of width struts. Page 12 of 35 Return to Table of Contents...
- Page 13 © AllSportSystems, Inc. 2021 Install 2 Width Struts Attach width Struts to enclosure by clamping them around the 1” EMT Pole connectors. Attach with open strut channels facing each other Add Center Support (if applicable) For Systems 16’W and Larger: Attach the center support strut in between the front strut and screen strut.
- Page 14 © AllSportSystems, Inc. 2021 Verify All Measurements Page 14 of 35 Return to Table of Contents Last Revised 6/7/22...
- Page 15 © AllSportSystems, Inc. 2021 Using a tape measure, verify and adjust the height, width, and depth of your enclosure to match your ordered dimensions. 1” EMT Poles and Strut are cut to allow for small adjustments within their connectors. Page 15 of 35...
-
Page 16: Top Netting
© AllSportSystems, Inc. 2021 TOP NETTING AND PIPE SLEEVES Install Pipe Sleeves Install pipe sleeves on the two back height poles. Pipe sleeves wrap around the pole and then velcro onto themselves. Install strut sleeve on center support (for systems 16’ Wide and larger) -
Page 17: Blackout
© AllSportSystems, Inc. 2021 BLACKOUT Add BlackOut Side Panels Attach your BlackOut Side Panels using the velcro and zip tie attachments. Starting with the side panels Wrap BlackOut Velcro around front pipe Cutout Triangle Corner should go around front 1” EMT Connector... - Page 18 © AllSportSystems, Inc. 2021 Add BlackOut Side Corner panels Attach your BlackOut Side Corner panels using the velcro and zip tie attachments. Wrap BlackOut Velcro around front pipe/strut Cutout Triangle Corner should go around front 1” EMT Connector/SkyBridge Bracket Zip Tie BlackOut to cage via the...
- Page 19 © AllSportSystems, Inc. 2021 Adding BlackOut Center Panel Place Center Panel on top of system Place Center Panel on top of system Wrap BlackOut Velcro around front pipe Zip Tie BlackOut to cage via the grommets on the back Center Panel will overlap Corner Panels without attaching to them...
- Page 20 © AllSportSystems, Inc. 2021 OPTIONAL UPGRADE: Add BlackOut Back Panel Attach BlackOut Back Panel using velcro and zip tie attachments. Hang the Back Panel from the rear width pole using zip ties through the grommets. The Back Panel will wrap around back corner poles and secure to the side panels via velcro strips.
-
Page 21: Cables For Side Shade And Side Netting
© AllSportSystems, Inc. 2021 CABLES FOR SIDE SHADE AND SIDE NETTING Prepare 2 ea cables as follows: Follow the steps below to attach one end of the cable to eye of turnbuckle: (1) Place two wire clips on the cable. - Page 22 © AllSportSystems, Inc. 2021 Install cables on cage Top View of cage with netting cables in place (shown without netting or BlackOut) Page 22 of 35 Return to Table of Contents Last Revised 6/7/22...
- Page 23 © AllSportSystems, Inc. 2021 Complete cable assembly Complete cable assembly by 1) determining proper length 2) forming the eye and 3) trimming off extra cable. Follow the steps below … 1) Thread two wire clips onto 2) Thread the dead end of the...
-
Page 24: Baffle Net
© AllSportSystems, Inc. 2021 BAFFLE NET Using zip ties hang your Baffle Net from the screen strut. Tension Sides of baffle net with zip ties. Depending on the height of your cage there may be extra netting on the floor. -
Page 25: Golf Impact Screen
DO NOT USE BLEACH OR PLACE SCREEN IN DRYER IDENTIFY THE FRONT SIDE of your screen: The AllSportSystems logo will be sewn into the bottom left face of your screen.The smooth face of the grommets will always be on the front side of your screen. - Page 26 Hang Screen The Screen Pole should be approximately 48 inches from the front of the enclosure. Screen Front: Be sure to hang the screen with the AllSportSystems logo or smooth side of grommets facing toward the front of the enclosure.
- Page 27 © AllSportSystems, Inc. 2021 Attach Black Bungee Hooks the black bungee to the front bottom corner of the enclosure, and then to the adjustable metal sleeve. Black Bungee runs underneath screen. Move the adjustable metal sleeve so that the black bungee crosses under the screen 2’ into the enclosure.
-
Page 28: Shotdefender
© AllSportSystems, Inc. 2021 SHOTDEFENDER™ The ShotDefender™ hangs on a tension cable about 6 inches in front of the screen. Any shots hit toward the screen pole will be caught by the ShotDefender™, eliminating the risk of a ricochet. Cable Assembly The cable first needs to be assembled. -
Page 29: Angled Side Shades
AllSportSystems, Inc. 2021 ANGLED SIDE SHADES You will receive two (2) Angled Side Shades. These will create the viewport for your screen and chosen StudioBay aspect ratio. Side Shades are installed from the floor up. Step 1: Attach LEADING EDGE to Velcro... -
Page 30: Side Netting
© AllSportSystems, Inc. 2021 SIDE NETTING You will receive two (2) sections of Side Netting. These will hang directly in front of your previously installed side shades. Side Netting is installed from the floor up. Step 1: Attach LEADING EDGE to Velcro... -
Page 31: Safety Precautions
2021 SAFETY PRECAUTIONS The StudioBay™ is designed for the back and sides of the enclosure to sit directly against a wall. Your screen is fully capable of handling real golf balls. However, for added safety, consider using “Almost Golf Balls” or foam balls rather than real golf balls when hitting indoors. -
Page 32: Appendix A - Siderite™ And Shotdefender™ Cable Assembly
© AllSportSystems, Inc. 2021 APPENDIX A - SideRite™ and ShotDefender™ Cable Assembly When installing the SideRite™ Screen Tension Kit and/or the ShotDefender™ Safety Valance the cabling must first be assembled. SideRite™ Tension Kit: Requires two cables; two turnbuckles and 8 wire clips. - Page 33 © AllSportSystems, Inc. 2021 Step 1 - Attach Cable to Turnbuckle Follow the steps below to attach one end of the cable to eye of turnbuckle: (1) If the end is frayed or unraveled, tape cable (2) Cut the cable at the tape so that cable end is as shown with electrical tape.
- Page 34 © AllSportSystems, Inc. 2021 Step 2 - Add eye and trim cable to proper length Complete cable assembly by first determining the proper length of the cable, forming the eye and then trimming off extra cable. Follow the steps below …...
-
Page 35: Appendix C - Emt Pole Schematic
© AllSportSystems, Inc. 2021 APPENDIX C - EMT POLE SCHEMATIC Page 35 of 35 Return to Table of Contents Last Revised 6/7/22...
