Summary of Contents for VigilLink VLML-4X1H20

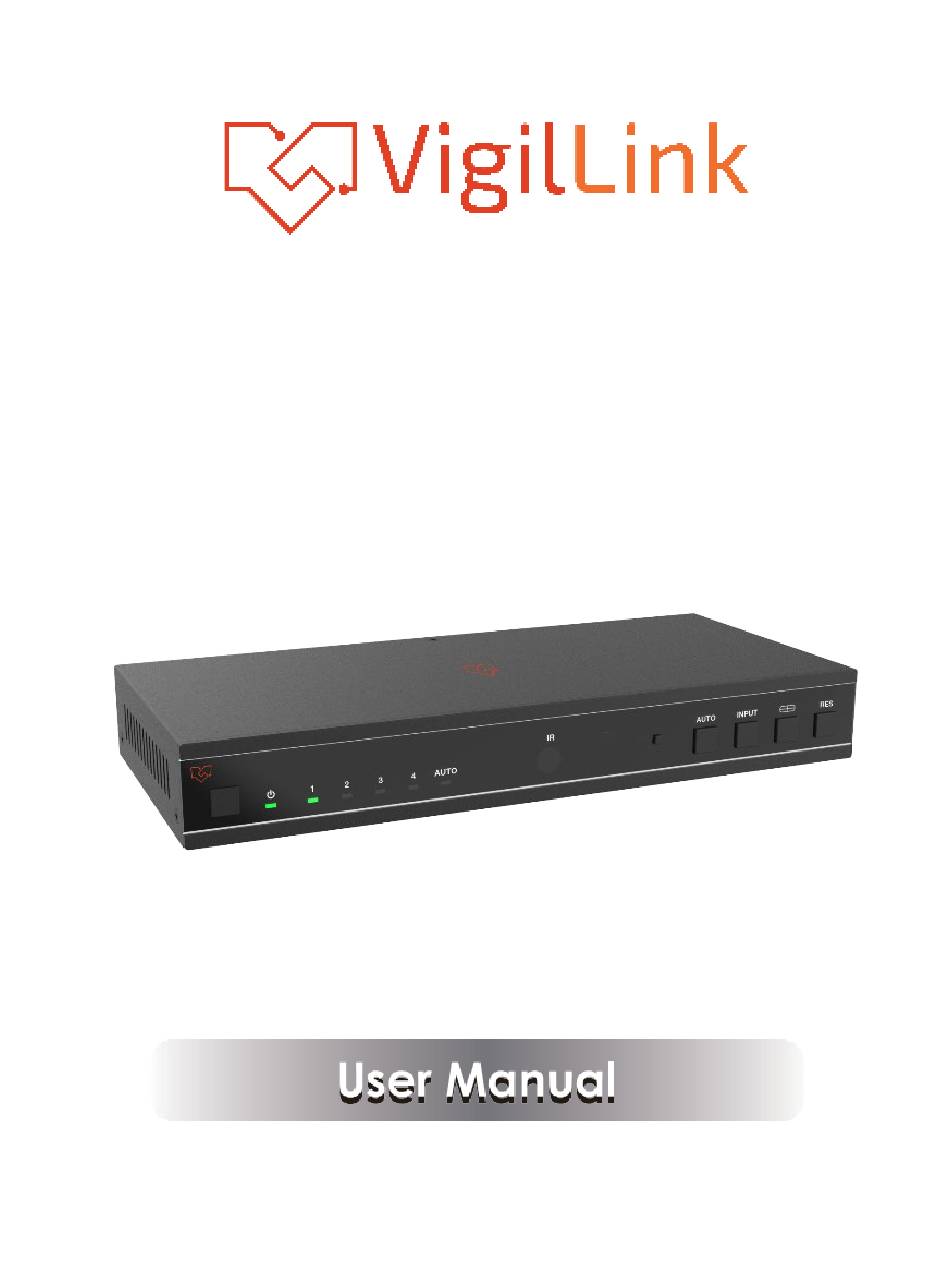

Page 1 VLML-4X1H20 4x1 HDMI 2.0 4K60 Multiviewer with Seamless Switching VER 1.0...
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A Surge protection device is recommended. This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc.
Page 3: Introduction
1. Introduction This 4K60 4x1 Multiview Seamless UHD Video Switcher was developed to support higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can easily manage each input via the supplied Control Software and create the layout and position of any of the four inputs on a single monitor.
Page 4: Package Contents
3. Package Contents ① 1 x 4K60 4x1 Multiview Seamless UHD Video Switcher ② 1 x IR Remote ③ 1 x 3pin-3.81mm Phoenix Connector (male) ④ 1 x 38KHz IR Wideband Receiver Cable (1.5 meters) ⑤ 2 x Mounting Ears ⑥...
Page 5: Operation Controls And Functions
Connection Input ports 4 x HDMI IN [Type A, 19-pin female] 1 x HDMI OUT [Type A, 19-pin female] Output ports 1 x L/R OUTPUT [RCA] 1 x OPTICAL OUTPUT [S/PDIF] 1 x RS-232 [3pin-3.81mm phoenix connector] Control ports 1 x IR EXT [3.5mm Stereo Mini-jack] Mechanical Housing Metal Enclosure...
Page 6 Name Function Description ▪ Short press this button to power on the device. Power button ▪ Long press this button for 1 second to enter the standby mode. The Power LED will light in green when the product is Power LED powered on and red when the product is on standby.
Page 7: Rear Panel
5.2 Rear Panel OUTPUT INPUT OPTICAL HDMI HD 1 HD 2 HD 3 HD 4 RS-232 IR EXT DC 12V Name Function Description PCM2.0 Analog audio output port. L/R port Optical fiber digital audio output port. OPTICAL port HDMI signal output port, connected to HDMI display device HDMI OUTPUT such as TV or Monitor with HDMI cable.
Page 8: Edid Settings
: Multiview display mode switching button. ▪ Short press this button to circularly select: SINGLE - PIP - PBP (1) - PBP (2) - Triple (1) - Triple (2) - Quad (1) - Quad (2). ▪ Long press this button for 3 seconds to select the aspect ratio for PBP (1) / PBP (2) / Triple (1) / Triple (2) / Quad (1) / Quad (2).
Page 9: Video & Audio
8. Video & Audio The switcher supports multiple resolution video input up to 3840x2160@60 and supports multiple audio formats such as LPCM, AC3, DD+, DTS, DTS- HD, and up to 7.1 can pass-throughout function via HDMI cable. Users can control the volume of the audio in LPCM format. The switcher supports the following video output resolutions via a powerful scaling engine.
Page 10: Osd Menu Navigation
10. OSD Menu Navigation (1) A total of seven buttons on the IR Remote are used for OSD menu navigation, including MENU, EXIT, UP, DOWN, LEFT, RIGHT, and OK. Menu contents are as follows: 4096x2160p 60Hz/ 4096x2160p 50Hz/ 3840x2160p 60Hz/ 3840x2160p 50Hz/ 3840x2160p 30Hz/ 3840x2160p 25Hz/...
Page 11 HDMI1,HDMI2,HDMI3,HDMI4 Win1 Select HDMI1,HDMI2,HDMI3,HDMI4 Win2 Select HDMI1,HDMI2,HDMI3,HDMI4 3xWIN Win3 Select MODE 1, 2 Aspect Full, 16:9 Win1 Select HDMI1,HDMI2,HDMI3,HDMI4 HDMI1,HDMI2,HDMI3,HDMI4 Win2 Select HDMI1,HDMI2,HDMI3,HDMI4 Win3 Select 4xWIN HDMI1,HDMI2,HDMI3,HDMI4 Win4 Select MODE 1, 2 Aspect Full,16:9 WIN1,HDMI1,HDMI2,HDMI3, WIN1 Audio Select HDMI4 AUDIO Volume 0..100 AUDIO-MUTE...
Page 12: Rs-232 Command
(2) A total of four buttons on the IR Remote are used for audio settings on OSD menu navigation, including A-IN, Mute, VOL-, and VOL+. Menu contents are as follows: WIN1,HDMI1,HDMI2,HDMI3, A-IN Audio Input WIN1 HDMI4 Mute Audio Mute ON, OFF VOL-/VOL+ Audio Volume 0..100...
Page 13 Command Code Function Description Example Feedback Reset to factory defaults System Initializing... reset! reset! Reset to factory defaults Initialization Finished! MCU FW version x.xx.xx SCALER FW version x.xx.xx Output Setting Set Output Resolution (x=1~14) 1. 4096x2160p60, 2. 4096x2160p50, 3. 3840x2160p60, 4.
Page 14 Command Code Function Description Example Feedback EDID Setting Set HDMI input EDID mode (x=18) 1. 4K2K60_444,Stereo Audio 2.0 2. 4K2K60_444,Dolby/DTS 5.1 3. 4K2K60_444, HD Audio 7.1 4. 4K2K30_444, Stereo Audio 2.0 5. 4K2K30_444,Dolby/DTS 5.1 6. 4K2K30_444, HD Audio 7.1 7. 1080P, Stereo Audio 2.0 input EDID:4K2K60_444, Stereo 8.
Page 15 Command Code Function Description Example Feedback r output audio r output audio Get output audio mute on/off output audio mute: off mute! mute! Single Screen Mode Setting Enable/disable auto switch feature(x=0~1) s auto switch 0! auto switch off s auto switch x! 0.
Page 16 Command Code Function Description Example Feedback Get windows selected input source (x=0~4) 0. ALL 1. window 1 window 1 select HDMI 1 r window 1 in! r window x in! 2. window 2 3. window 3 4. window 4 Set PIP window position (x=1~4) 1.
Page 17: Application Example
Command Code Function Description Example Feedback Get quad windows display mode r quad mode! r quad mode! quad mode 1 Set quad windows display aspect ratio (x=1~2) s quad aspect 1! quad aspect: fullscreen s quad aspect x! 1. Fullscreeneen 2.
