Summary of Contents for STONKAM WT-479

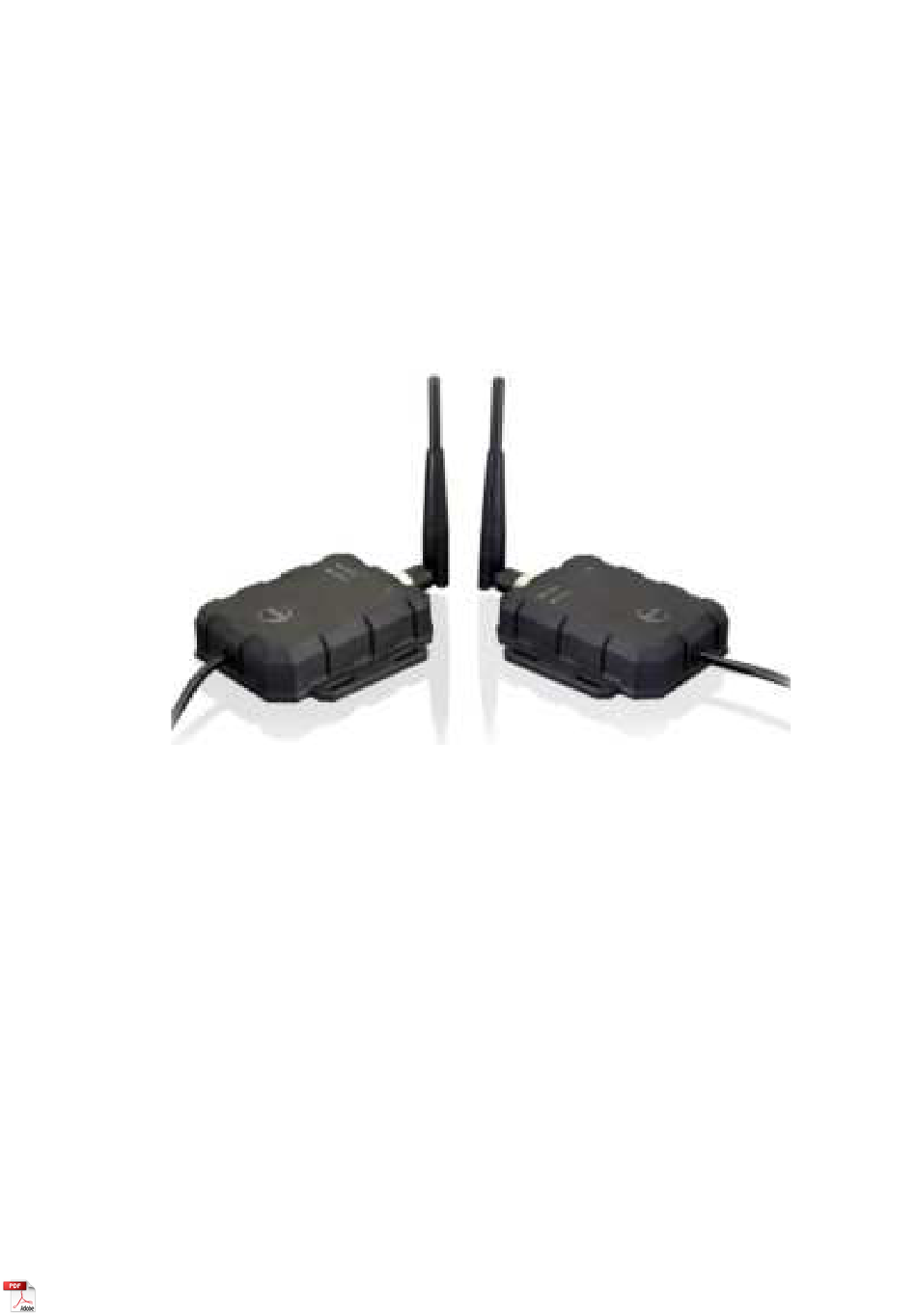

- Page 1 Operating Instructions 2.4GHz Digital Wireless Receiver/Transmitter Please read this manual thoroughly before operating the unit, and keep it for future reference. V2.1...
-
Page 2: Table Of Contents
Contents 1. Precautions ............1 2. Transmitter Product Features ........ 5 3. Transmitter Technical Specifications ..... 5 4. Receiver Product Features ........6 5. Receiver Technical Specifications ......6 6. Application............. 7 7. Operation Instructions ........... 7... -
Page 3: Precautions
1. Precautions ● Storage and Keeping (1) Do not expose the device to excessive heat or cold. The storage temperature of this device is -30~+80℃,and the operating temperature is -20~+70℃.The humidity is Rh90﹪. (2) Avoid dropping or striking this device. (3) Avoid using this device in enclosed spaces, areas with excessive vibration or subjecting this device to severe impacts. - Page 4 ● Maintenance Remove all cable connections from the device before cleaning the unit. Caution Risk of electric shock Do not open Caution: to reduce the risk of electric shock, Do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage"...
- Page 5 This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more...
-
Page 6: Transmitter Product Features
2. Transmitter Product Features Antenna ″PAIR″ Button Power 4PIN Male (1) 2.4G digital wireless transmitter (2) Power supply: DC10-32V (3) Supply 12V voltage for camera (4) Support CVBS or AHD 720P or AHD 1080P camera (5) Metal housing, solid, suitable for outdoor use (6) Waterproof protection level equals to IP69K (7) Indication Power: the “POWER”... -
Page 7: Receiver Product Features
4. Receiver Product Features Antenna ″PAIR″ Button 4PIN Female (1) 2.4G digital wireless receiver (2) Power supply: DC 10-32V (3) Metal housing, solid, suitable for outdoor use (4) Waterproof protection level equals to IP69K (5) Indication: Power: the “POWER” indicator turns red when power is on. Pairing: press “PAIR”... -
Page 8: Application
6. Application 7. Operation Instructions ● Transmitter: (1) Connect the transmitter to a DC power, and connect a camera to the transmitter. When the transmitter is powered on, the “POWER” indicator turns red. (2) When the transmitter is powered on, it will automatically connect to the paired receiver if the transmitter is paired before( the receiver should be working at the same time). - Page 9 ● Receiver: (1) Connect the receiver to the monitor and the monitor should be switched to the receiver channel. When the receiver is powered on, the “POWER” indicator turns red. When powered on, the receiver will always wait for connecting to the transmitter with which it paired before.
- Page 10 (5) If the transmitter does not have a connected camera, or if the camera “NO is broken, the receiver will display a picture which indicates INPUT”. (6) The video output of the receiver will automatically match the format of the camera which is connected to the transmitter (e.g., if a 1080P camera is connected to the transmitter, the transmitter will output a AHD 1080P video signal).
