Summary of Contents for Rosani Classic SW736619

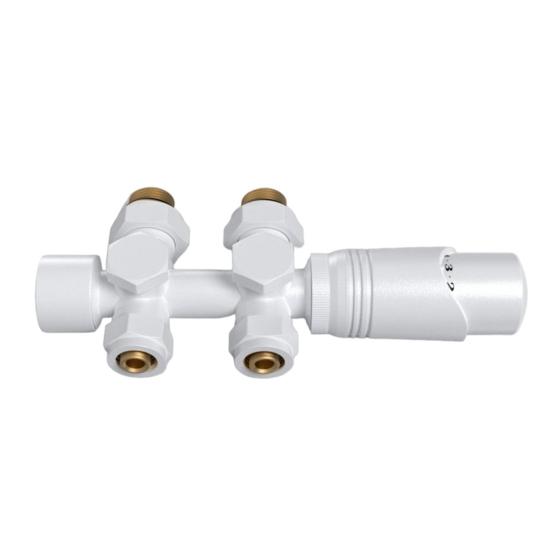

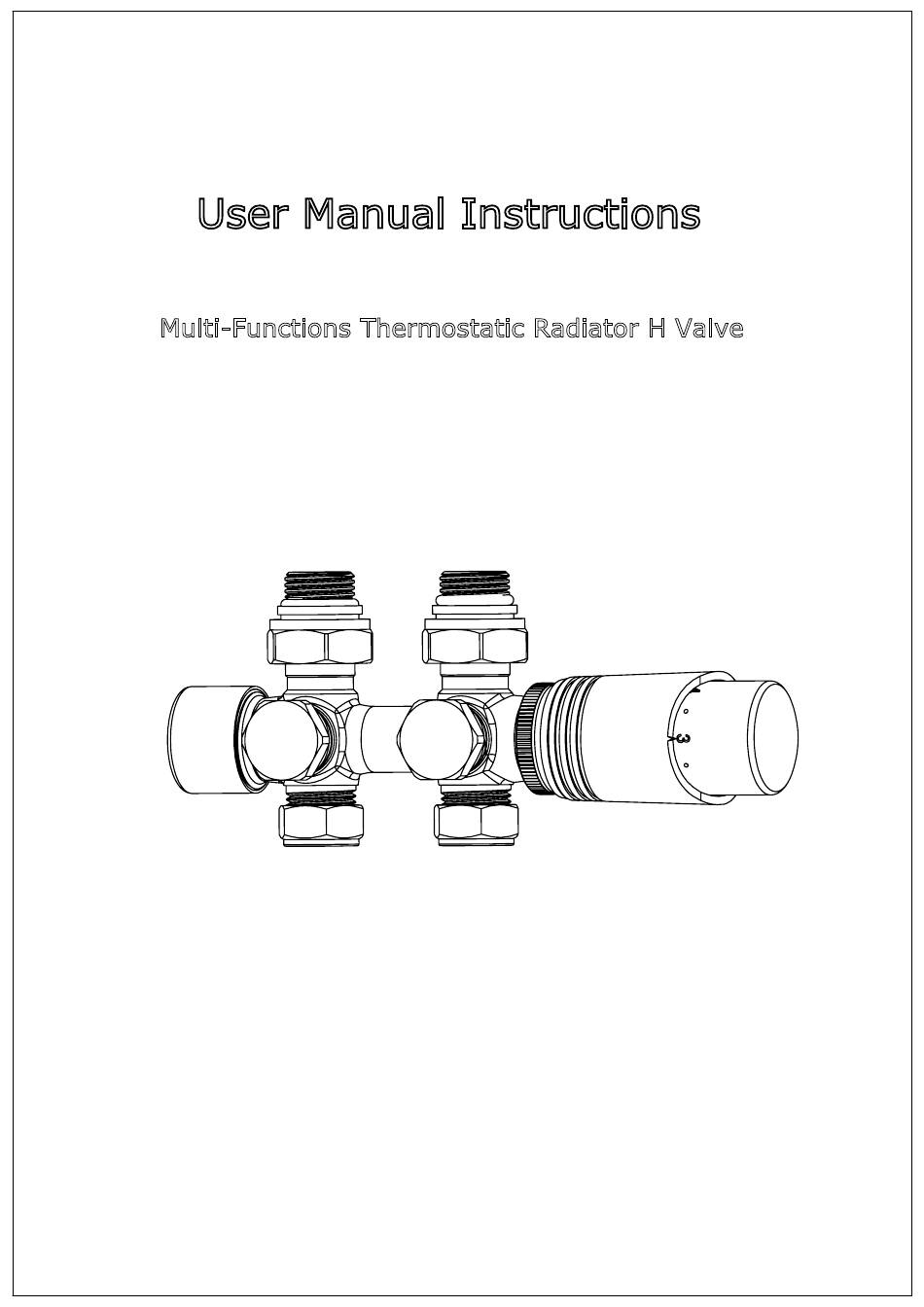

- Page 1 User Manual Instructions Multi-Functions Thermostatic Radiator H Valve...
- Page 2 Product Introduction Product Name: Multi-functions Thermostatic Radiator H Valve Material: Brass Dimension:G1/2''* 15mm & 16mm * 50mm center distance Working Medium: Cold / Hot Water Range of Temperature Adjustment: 7-32 ℃ Max Working Temperature: 100 ℃ Max Working Pressure: 10 bar Max Pressure Difference: 0.6 bar 50mm This product is applicable to the towel radiator with a center...
- Page 3 Installation Instructions 1. Open the package, take out the valve's body and disassemble the fittings B, D, E, F , H Rotate and disassemble the fittings B, D, E, F ,H Install the part B to the valve's body A1 side. Screw in part B until it just covers the thread. Do not screw in too much, otherwise the valve will not work normally.
- Page 4 Plug the rubber ring side of fitting G into radiator's connection G3/4'' Attention: Part of radiators can be directly G3/4 connected to the valve's A2 end and sealed. Such radiators do not need to install fittings G. copper pipe. 5. Check the pipe if it is 16mm PEX pipe or 15mm If it is...
- Page 5 7. After installing the pipes, connect the A2 to the towel radiator. Warning: As the the product surface is chrome plating or painting, the direct contact of metal tools and product during installation may damage the surface and affect the overall beauty. Therefore, it is suggested that isolating the products with thin cloth or paper to avoid the tool directly contacting and damaging the surface when using force, or avoid any scratching or paint peeling.
