Summary of Contents for V-Show S718 Elf

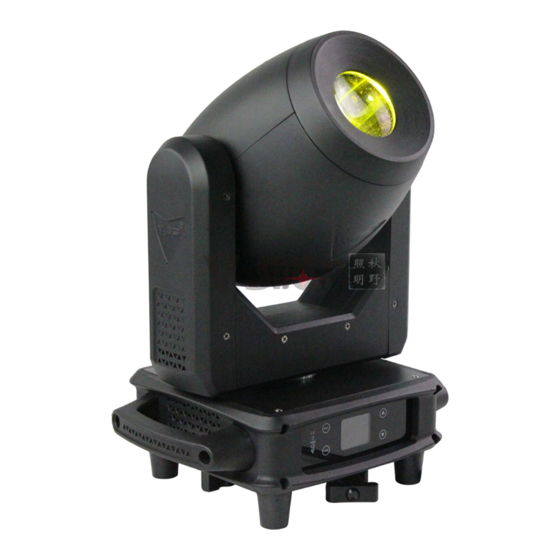

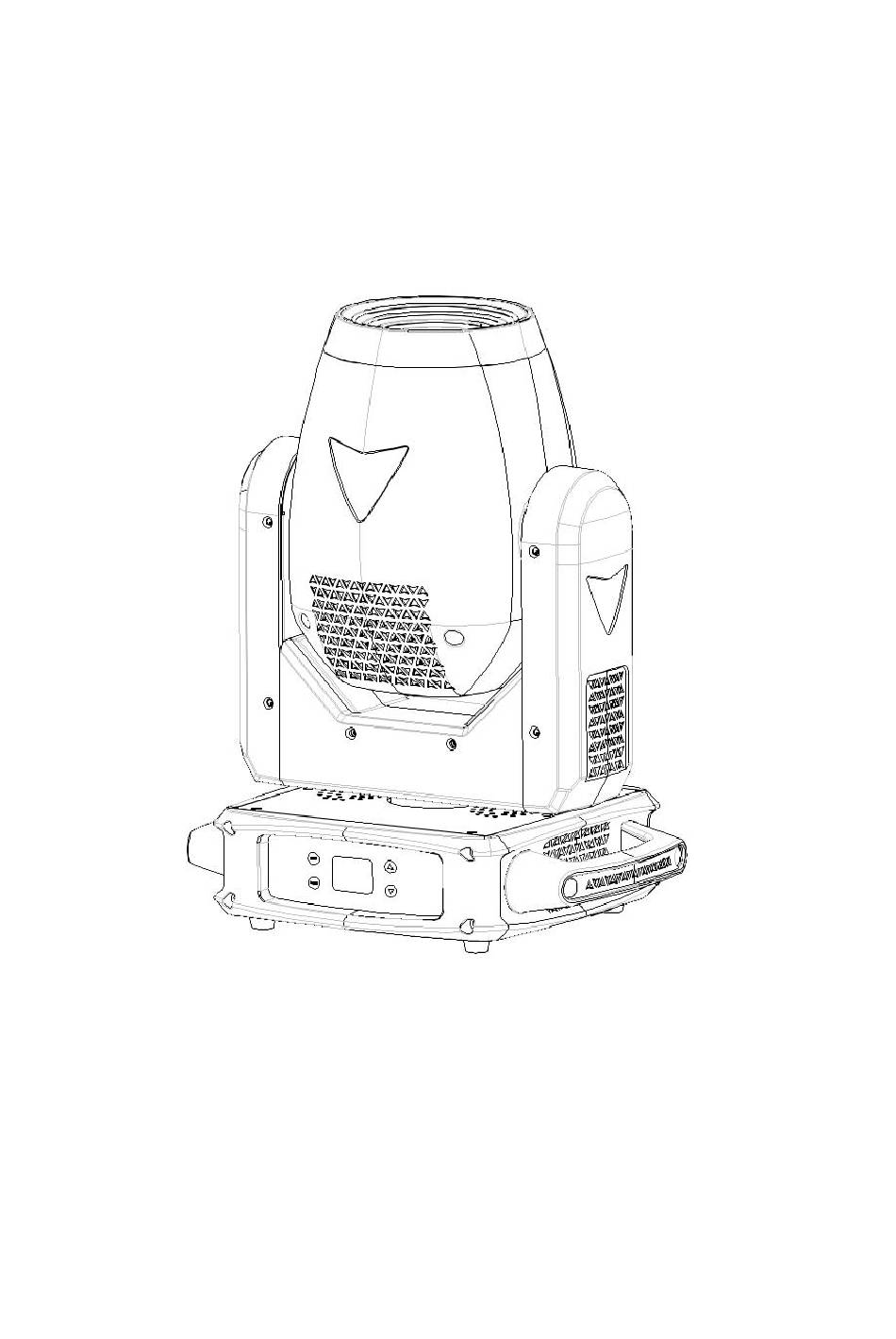

- Page 1 S718 Elf User Manual...
- Page 2 1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
-
Page 3: Installations
In the event of serious operating problem, stop using the unit immediately. Never turn on and off the unit time after time. The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs yourself. -
Page 4: Dmx-512 Control Connections
Installation point: Overhead installation requires a wealth of experience, including calculation of working load limits, in-depth understanding of the installation materials used, and regular safety inspections of all installation materials and fixtures. If you do not have these qualifications, please do not try to install it yourself. -
Page 5: Address Code Setting
120Ω PIN 3 PIN 2 4.Address code setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blink in the display, use the UP/DOWN button to adjust the address from 001 to 512, press the... - Page 6 Channel UNIT1 UNIT2 UNIT3 UNIT4 MODE ADDERSS ADDERSS ADDERSS ADDERSS 17CH 5.Fixture size 6.Illuminance chart:...
-
Page 7: Static Gobo Wheel
7. Effect Wheels STATIC GOBO WHEEL COLOR WHLLE Rotation GOBO... - Page 8 8. LED technical parameters Input Voltage: 100-240V, 50/60Hz Output Voltage: V1:29V(Master board+LED driver), V2:12V(cooling fan+Displa Power consumption: 180W Power supply: 250W Light source: 150W Osram LED Chip (24-27V,6A) Color temperature: 8000K Diameter of optic lens: 65mm Beam angle: 15-17° Color wheel: 1 color wheel, 7fixed colors plus white, two-way rainbow effect Static gobo: 7 gobos plus 1 white circle Rotation Gobo: 6 Gobo plus 1 white circle Prism: 5 prism,can be rotated in both directions...
-
Page 9: Menu Description
9. Touch key description Up and down keys to select edit Confirm key: execute function, start editing, exit editing menu key: return to the previous interface The following takes "Modify DMX Address Code" as an example to describe the use of buttons: 1. - Page 10 10.1set up Option Description operating Slave state: receive DMX signal from console mode or host AUTO Master status: self-propelled and send DMX signal to slave voice control DMX address 1~512 Press the "OK" key to enter the editing state. At this time, the hundreds digit is selected, and the "up"...
- Page 11 XY velocity Dimming Strobe color pattern glass pattern glass pattern rotation atomization Prism Prism rotation focusing enlarge reset 10.3factory Sensor X Hall detection Y Hall color hall Pattern Hall glass pattern hall Focus Hall X-coded step value Y-coded step value reset calibration X axis After entering the sub-interface, you can...
- Page 12 the lamp is running incorrectly, and the details can be viewed from this sub-interface. After viewing, you can press the "Clear" button to clear the error record total usage time This time of use temperature Display the current temperature of the lamp bead Common error illustrate...
- Page 13 104-107 Shutter open Strobe 108-207 Pulse strobe from slow to fast 208-212 Shutter open 213-251 Random strobe from slow to fast 252-255 Shutter open 000 - 007 white light 008 - 015 white light + color 1 016 - 023 color 1 024 - 031 color 1+color 2...
-
Page 14: Common Malfunctions
030 - 039 Rotation Gobo4 040 - 049 Rotation Gobo5 050 - 059 Rotation Gobo6 Rotation 060 - 069 Rotation Gobo7 Gobo 070 - 079 Static Gobo2shock (from slow to fast) 080 - 089 Static Gobo3shock (from slow to fast) 090 - 099 Static Gobo4shock (from slow to fast) 100 - 109... - Page 15 Add a signal amplifier; The signal line adopts high-quality shielded twisted pair; Connect a signal terminating resistor (120 ohms) at the end of the fixture. 2. The lamps cannot be started Check that the lamps have poor contact or fall off due to extrusion deformation, vibration of internal parts, moisture and other reasons during long-distance transportation.
