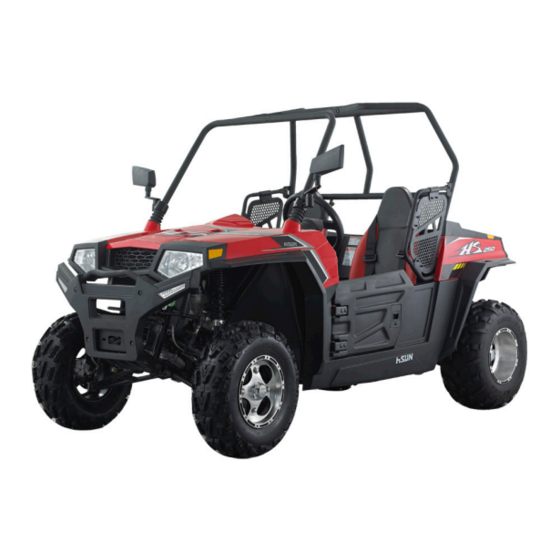

HiSUN STRIKE 250 LIFT KIT INSTALLATION INSTRUCTIONS
NOTE:
Ensure the UTV is safely secured prior to working on it, you will have to remove the
front and rear wheels so a jack stand is recommended for your safety.
Some of the tools needed to install the lift kit will include:
Floor jack
Jack stands
Basic hand tools, wrenches, screwdrivers and some common mechanical experience
Wrenches are in MM not inches
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hisun STRIKE 250
Summary of Contents for Hisun STRIKE 250
- Page 1 HiSUN STRIKE 250 LIFT KIT INSTALLATION INSTRUCTIONS NOTE: Ensure the UTV is safely secured prior to working on it, you will have to remove the front and rear wheels so a jack stand is recommended for your safety. Some of the tools needed to install the lift kit will include:...
- Page 2 Step 1: Secure the rear of the HiSUN Strike 250 by using a floor jack and raise the rear of the UTV until the rear wheels are off of the ground and you are able to place jack stands under the frame. By placing the jack stands on the frame/chassis, you will allow the rear swing arm free to swing up and down as you install the rear plates.
- Page 3 STEP 5: Next, install the lift plates on the outside of the swing arm base, using the new bolts supplied. Step 6: Using the smaller shims On the inside of the lift plates To center the lower shock Mount as shown in the pic. There should be two per side.
- Page 4 Step 9: Copying the left side, install the lift kit plates on the right side Step 10: This is where you will need to make sure the routing of the brake cable and hose is done Correctly. They must be routed Towards the inside of the shock And lift plate.
- Page 5 Step 12: Once the rear lift kit plates are secured and tight, make sure the upper shock mounting bolts are tightened. If you removed the rear wheels you can install them back on at this point. The rear lift kit is done and now installed. Step 13: NOTE: you might have to check the chain adjustment at this point since it might have moved.
- Page 6 Step 2 front: Take the front upper lift plates and slide then inside the upper crossmember. This is where the upper front shock mounts to. Step 3 front: using the supplied spacer, you will install the spacer in-between the upper lift plates, it might be a tight fit, as some of the OEM brackets are tight and some are loose.
- Page 7 In this photo, you can see how the plates are placed, one is on the inside of the OEM shock mount, and the forward plate is on the outside of the U channel. Put the upper spacer as shown. The lower shock mount does not take any spacers. It uses OEM bolts to secure it.
- Page 8 These photos help to show the proper placement of the lift kit plates. Once the are installed and tightened, you can re-install the front wheels and tighten to OEM specs. NOTE: be sure to check for clearance with all hoses, lines, and movement of the shocks prior to driving.
- Page 9 2” on our units. The wheel pattern is the same as the Yamaha Banshee, so finding a set online is very easy if you want that same look as our units. Have fun and enjoy your taller Hisun for some more off road adventures. STOCK 2”...
