Summary of Contents for EUNORAU BC280 PRO

Page 1 Manual BC280 PRO Model Version: CH-20220223...
Page 2: Table Of Contents
 Operation ....................5  Power on/off ...................5  Cycling interface ..................6  Assist level switch ..................7  Error Code ....................7  User Menu....................8  Connect to APP (only for Bluetooth version) ............12  Attentions ....................13 EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.
Page 3: Product Description And Specifications

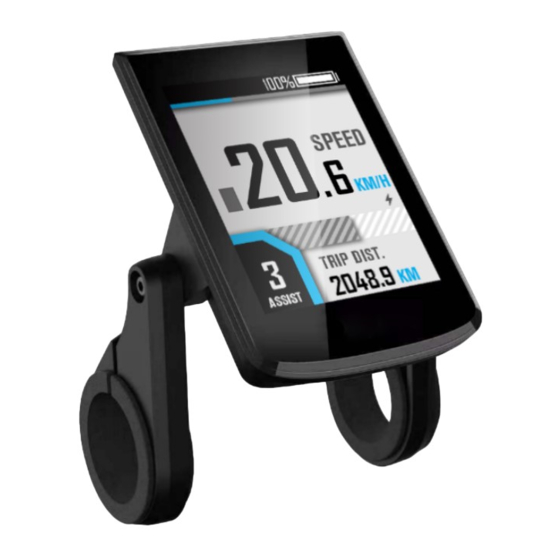

BC280PRO Manual  Product Description and Specifications DTK3 Button BC281 Display  Parts Description Display Dimensions EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.
Page 4: Function Introduction
 Auto headlights, Brightness adjustment, automatic backlight  Auto Power-off  USB Port（5V/500mA） In addition, the Bluetooth version also supports the following functions:  APP connection  Data synchronization  Cycling ranking  Cycling track record  Buttons Functions EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.
Page 5: Operation
In any interface of startup, long press the [Power] button to enter the shutdown logo interface, and shut down after 2s:  Cycling interface BC281 provides various styles of riding interface, you can switch the display by clicking the [Power] button: EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.
Page 6 Battery indicator Cycling time Real-time speed Speed Unit burnt Calorie Real-time motor power Assist Trip 3. Statistical Mode Battery indicator Trip time Trip Average Speed Max speed burnt Odometer Calorie Real-time Assist speed Speed Unit EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.
Page 7: Assist Level Switch
Motor Phase Error Motor Hall Error Brake Error Low-voltage protection Communication Error protocol Error Code Error Code Meaning Brake Error Low-voltage protection Motor Phase Error Throttle Error Current or Mos Error Motor Hall Error Communication Error EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.
Page 8: User Menu
1、 Clear Data （1）Clear Trip Data Select "Trip Distance", click the [Power] button, select Yes according to the interface prompts and click the [Power] button again to confirm, you can clear the single mileage: EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.
Page 9 [Note] Clearing Trip Dist will also clear the Trip time, average speed, ma speed, and calories burnt. 2、 Setup （1） Auto Headlight Select Auto Headlight submenu and click the [Power] button to enter, you can set whether to enable the automatic headlight function: EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.
Page 10 Select Set Unit and click the [Power] button to enter, you can select the speed unit: （3） Set Brightness Select Set Brightness and click the [Power] button to enter, you can use the [+] / [-] to adjust the backlight brightness level, the adjustment range is 0-5: EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.
Page 11 Select Auto Power-Off and click the [Power] button to enter. You can use the [+] / [-] to adjust the automatic power off time. The adjustment range is 0-99, unit: minutes. When set to 0, it means to cancel the automatic power off: 3、 Check System Info. Enter System Info，to view system information： EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.
Page 12: Connect To App (Only For Bluetooth Version)
 Connect to APP (only for Bluetooth version) 1、 Scan the following QR code to download the APP: 2、 Select Connect to APP in the user menu, get the Bluetooth connection QR code, and scan it with the APP to pair: EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.
Page 13: Attentions
7. The damage and failure of the instrument caused by improper installation or use are not covered by the after-sale warranty. 8. Please contact info@eunorau-ebike.com for inquiries and after-sales services. EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.

This manual is also suitable for:

Bc281
