Summary of Contents for jbc GSF Series

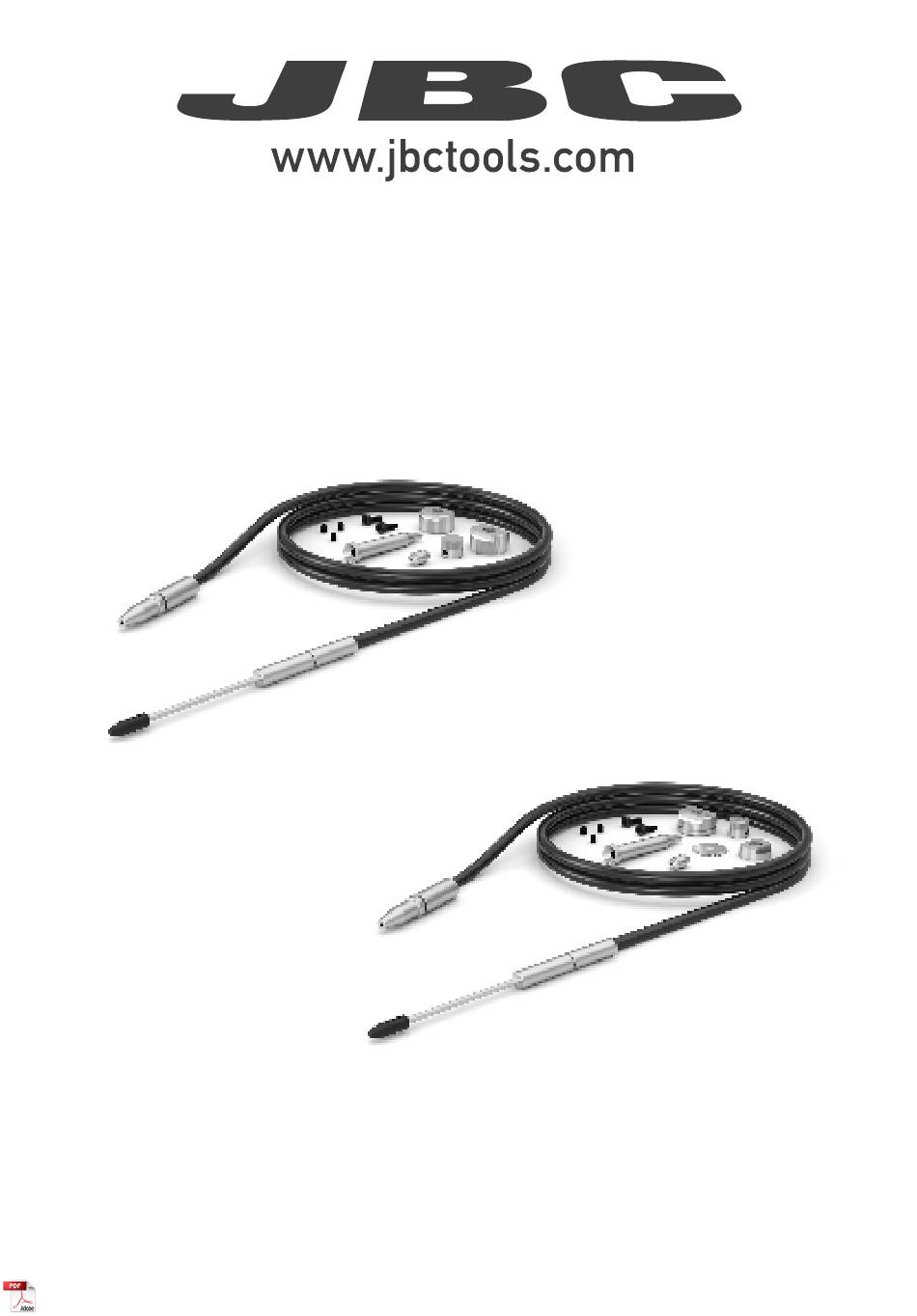

- Page 1 INSTRUCTION MANUAL Guide Kits for SF280...
-
Page 2: Packing List
This manual corresponds to the following references: With Solder Wire Perforation: Without Solder Wire Perforation: GSF08V-B for wire Ø 0.8 mm / Ø 0.032 in GSF04D-B for wire Ø 0.4 mm / Ø 0.016 in GSF10V-B GSF05D-B for wire Ø 1.0 mm / Ø 0.040 in for wire Ø... - Page 3 GSF Guide Kit for SF280 without Solder Wire Perforation Allen Screws Traction Wheel Inlet Nozzle Headless Screws Support Wheel Guide Tube Counter Wheel Outlet Nozzle Intermediate Nozzle Packing List The following items are included: Guide Tube* ..........1 unit Allen Screws* ......... 2 units Inlet Nozzle* ..........
- Page 4 GSF Guide Kit for SF280 with Solder Wire Perforation...
- Page 5 GSF Guide Kit for SF280 without Solder Wire Perforation...
- Page 6 Mode Con�nuous Mode Con�nuous 20.0mm/s 20.0mm/s Speed Changing Guide Kits Speed Mode Con�nuous Mode Con�nuous Feeder parameters lock Off Feeder parameters lock 20.0mm/s Off Speed 20.0mm/s Speed Changing Wheels and Blade Tin reload process Feeder parameters lock Off Feeder parameters lock Off...
- Page 7 Replacing the Guide Tube Once the tool is disconnected from the control unit follow the instructions below: Disassemble the outlet nozzle (1) from the guide tube. Open the guide clamp (2), take off the guide tube (3) and insert the new one. Note: The guide tube length can be easily adjusted (4) when the guide clamp knob (2) is open.
-
Page 8: Tool Assembly
Tool Assembly Connect the tool to the control unit following this steps: Insert and push the guide nozzle until the end (1) and tighten the screw (2). Connect the jack (3). Insert to the end Solder Wire Loading Intermediate Put the solder reel into its support (1). To Guide Tube Nozzle Introduce the solder wire into the inlet nozzle (2) - Page 9 Notes...
- Page 10 Notes...
-
Page 11: Specifications
Specifications Guide Kits for SF280 Total Net Weight: Package Weight: With Perforation: 108 g / 0.24 lb 200 g / 0.44 lb Ref.: GSF08V-B wire Ø 0.8 mm / Ø 0.032 in 108 g / 0.24 lb 200 g / 0.44 lb Ref.: GSF10V-B wire Ø... - Page 12 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
