- Page 1 OA-1 Ozone Alarm Installation and Operation Manual Page 1 214 West Highway 18 Inwood, IA 51240 PH: (515) 635-5854...
-
Page 2: Cautions, Warnings And Hazards
Ozone is a powerful oxidizing agent. Observe strict operating procedures when using ozone equipment. Ensure that the ozone system is in a well-ventilated area. The OA-1 Ozone Alarm must be used indoors mounted 5-6 ft. from the floor. Note: If the operator has asthma, he/she must not enter an ozonated airspace. -
Page 3: Table Of Contents
Table of Contents Table of Contents Cautions, Warnings and Hazards......................2 Table of Contents..........................3 Introduction............................4 Features...…………………………..................... 4 Specifications............................5 Installation.............................5 Operation...............................6 Internal Components..........................7 Wiring Diagram.............................8 System Maintenance….………. .…..………………………………………………………….…9 Contact Info …………………………………………………………………..………………………10 Page 3 214 West Highway 18 Inwood, IA 51240 PH: (515) 635-5854... -
Page 4: Introduction

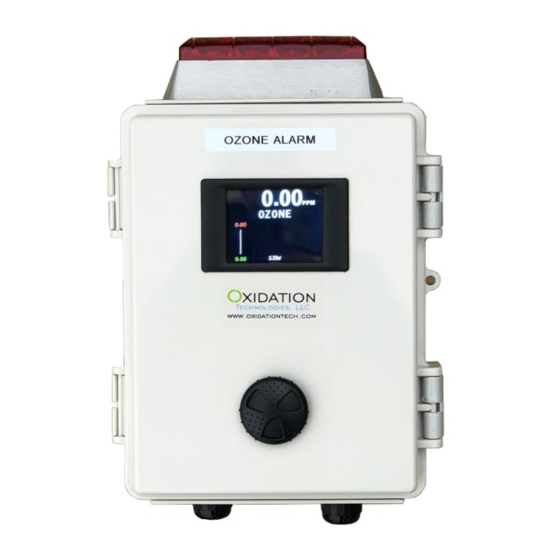

Introduction The OA-1 ozone alarm is a fixed mount device with an audible alarm and visual strobe light designed specifically for use in human safety applications. This device features a user-settable alarm point with an auxiliary relay to control external devices such as fans, ozone generators, etc. The relay and alarm trigger together at the user-selected ozone set-point. -
Page 5: Specifications
Analog output: 4-20 mA output linear with ozone level Calibration: Replace your sensor annually Installation Mount the OA-1 Ozone Alarm in a clean, dust free environment that is non condensing. Recommended mounting height is 5-6 ft. Ambient Temperature should be between 50 and 86 deg. F. -
Page 6: Operation
Operation - Plug OA-1 into 120 VAC outlet. - The alarm will engage immediately upon powering it up - This is because the sensor needs to warm up. Initial warm up may take from 30 minutes to 1 hour - 12 hours for full warm up. -
Page 7: Internal Components
Internal components Page 7 214 West Highway 18 Inwood, IA 51240 PH: (515) 635-5854... -
Page 8: Wiring Diagram
Wiring Diagram Page 8 214 West Highway 18 Inwood, IA 51240 PH: (515) 635-5854... -
Page 9: System Maintenance
System Maintenance In the event of any of these components fail, please contact the manufacturer. MONTHLY ◦ Perform a zero calibration ◦ Clean Alarm ◦ Bump test with ozone ANNUALLY SM-3 Ozone Leak Sensor Replace Page 9 214 West Highway 18 Inwood, IA 51240 PH: (515) 635-5854... -
Page 10: Contact Info
Contact Info By mail: Oxidation Technologies, LLC 214 West Highway 18 Inwood, IA 51240 By telephone: (515) 635-5854 By e-mail: info@oxidationtech.com Page 10 214 West Highway 18 Inwood, IA 51240 PH: (515) 635-5854...
