Sales and Service................(306) 653-3200
Downloads/FAQ's.............reedsecurity.com
24/7 Monitoring Station.......1-800-268-6870
ACCOUNT NUMBER:
Simon XTi Alarm Systems – QUICK REFERENCE

Arming Your System

Note: Before arming, ensure all doors and windows are closed.
1.

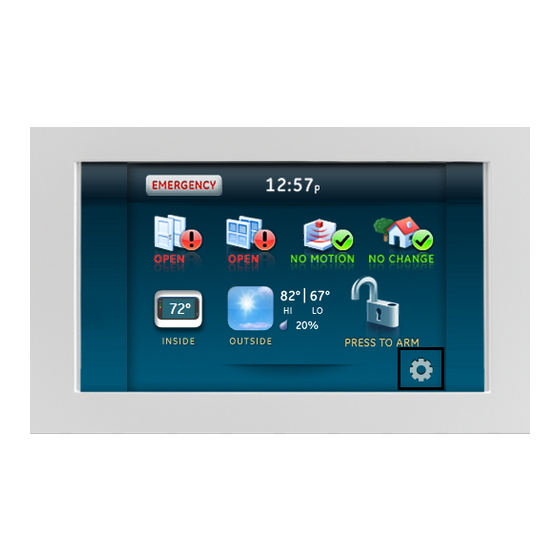

On the home screen, hit the padlock labeled [Press to Arm]
2.
Choose one of the following:
a.
[Doors & Windows Only], otherwise known as Stay Mode. Any Motion Sensors are bypassed
and you are free to move around. Opening a door will trigger the Entry Delay.
b.
[Arm All], otherwise known as Away mode. Once the Exit Delay expires, all zones, including
Motion Sensors, will be armed.
3.
The system will begin the countdown immediately. To cancel, hit [Cancel Arming].
Note 1: If you do not want to hear the exit beeps, press [Silent Exit ON]. This will silence the
beeping and it will give you two minutes of Exit Delay instead of one.
Note 2: Press [Entry Delay Off] if you want your alarm to go off immediately when a door has been
opened, without any Entry Delay.

Disarming Your System

1.
Touch [Press to Disarm] and then key in your 4 digit code
OR
2.
Touch the red surface and then key in your master code (if the system went into alarm during the
last arming period).

Changing Codes

1.
Touch the 'gear' icon on the lower right of the screen to get to the settings menu.
2.
Scroll down and select [Programming], followed by your existing 4 digit master code.
3.
Touch the icon labeled [Access Codes].
4.
Now the Master Code will appear, followed by the user codes 1 to 5. Touch the white box next to
the code you want to change and either enter a new code, or hit [Delete].
5.
To change codes 6-8 or the Duress Code, scroll down to the next page.
6.
Be sure to hit the [Save] button in the top right-hand corner before leaving the screen.
7.
Exit Code Programming by hitting the [Close] button in the top right-hand corner twice.
8.
It is a good idea to test your code immediately to confirm that it saved correctly.
PASSWORD:
