PTW-3300S
Intelligent Touch Screen Addressable Fire Alarm System

General

The PTW-3300S is a powerful intelligent networkable touch
screen color display fire alarm controller designed with many
levels of flexibility to meet virtually any application. Features such
as fire detection & alarm, networking and graphical workstations
allow this modular solution to accommodate the simplest systems
up to the most complex solutions.
With one to sixteen Signaling Line Circuits (SLCs), the
PTW-3300S supports up to 3,168 intelligent addressable devices
when it connects with PW-600P or PW-330DP Series detectors,
up to 2,544 intelligent addressable devices when it connects with
PW-300P Series detectors.
Information is critical to fire evacuation personnel, and the
PTW-3300S's large 1024x600 pixel touch screen Liquid Crystal
Display (LCD) presents vital information to operators concerning a
fire situation, fire progression, and evacuation details.
A host of other options are available, including LED, LCD, LDM, or
PC based graphic annunciators; fire or integration networking;
advanced detection products for challenging environments, and
many additional options.

Features

One to sixteen isolated intelligent Signaling Line Circuits (SLC)
Style 4, 6 or 7.
With PW-330DP and PW-600P series, up to 99 detectors
(photo, thermal) and 99 modules or any configuration of 198
devices per SLC. 198 devices per loop/3168 per FACP or
network node.
With PW-300P series, up to 159 intelligent devices per
loop/2544 per FACP or network node.
large 1024x600 pixel touch screen displays with user friendly
menu.
English, and Chinese language support.
Connect to the Graphical Workstations (Proworkse-3S) for
centralized management.
Network option–supports PTW-3300S, PW-NCA-3S Network
Annunciator, or Proworkse-3S Network workstations. Up to 99
network Nodes.
P-VFT-3S Tools online/offline program option.
Application code is saved in Flash memory, eliminating the
need to change EPROMs.
RS-232 output for remote system printer.
40,000-event capacity for each type. Automatically records the
latest fire alarms, faults and system events, and stores in a
classified manner to facilitate query.

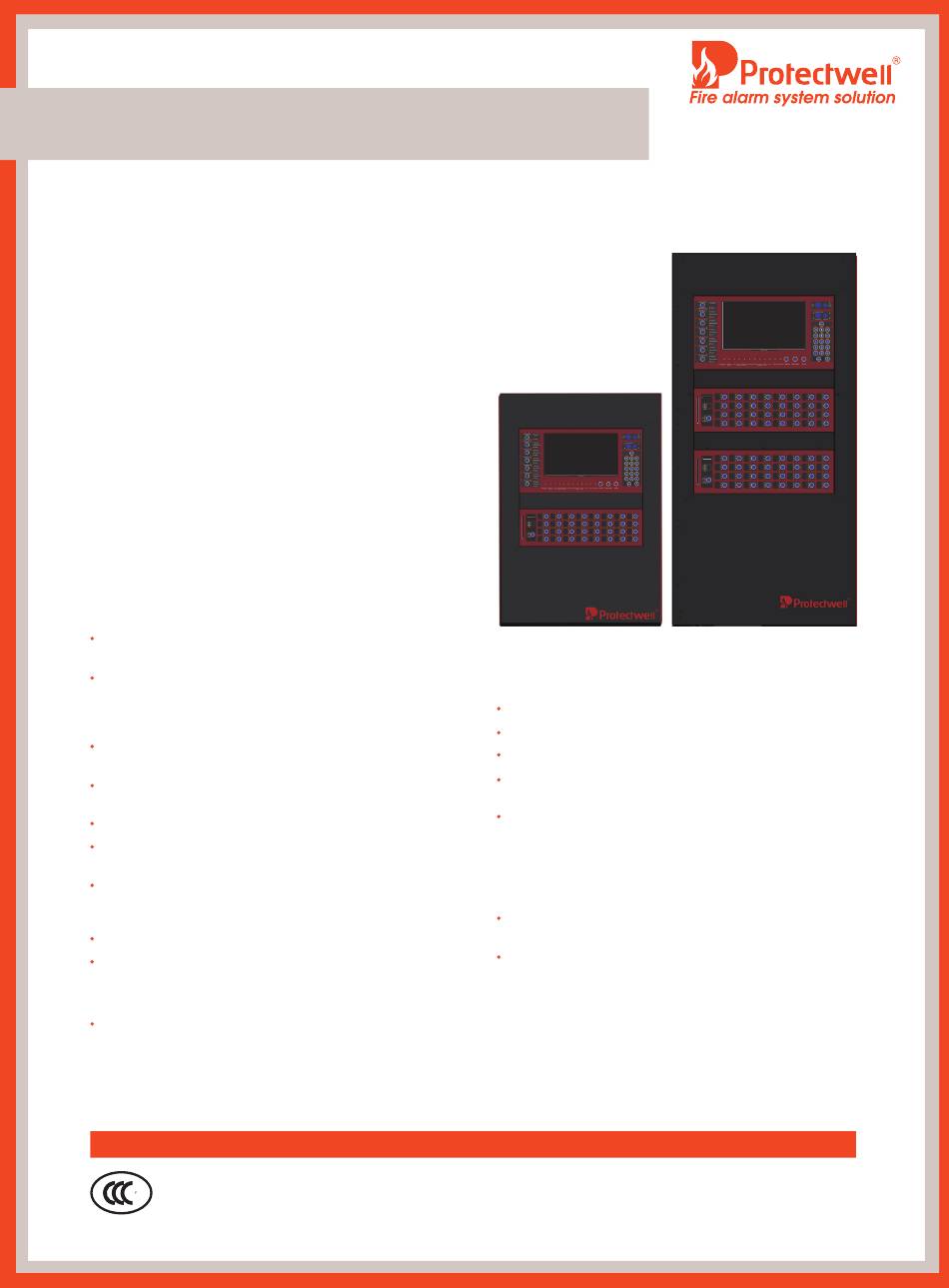

PTW-3300S B (left) and PTW-3300S C (right)
Advanced history filters allow sorting by event, time, date.
Field-programmable on PC or controller.
Non-alarm points for lower priority functions.
Support remote offline programming, LAN and WAN remote
debugging.
Multiple network ports and interface：RJ45, RS232,
RS485, CAN Bus.
LARGE 1024*600 PIXEL TOUCH SCREEN DISPLAY
FEATURES
Program keypad: Alphanumeric keypad and Virtual full
QWERTY keypad.
15 LED indicators: Power; Battery; Fire Alarm; Linkage;
Delayed start; Supervisory; Point Disabled; System Failure;
Feedback; Trouble; Signals Silenced; Self-test.
