Thank you for choosing AirDesign and The Sock.
This harness is the work of a team of pilots, mountaineers, adventurers, hikers, climbers, who love to
share their passion with you.
Based in the Alps, we spent hundreds of hours flying this harness during the development process to
ensure you will have lot of pleasure using it for your next adventure.
Please read carefully the manual for this harness.
Please register your harness online on our website at https://ad-gliders.com/product-
.
registration/?lang=en
Check the website Product registration page for more details.
If you wish, you can enroll for the AirDesign newsletter. Simply provide us with your e-mail address
and you will always be up to date with the very latest news from the AirDesign world.
Up to the minute news and information is available on our Facebook page under "AIRDESIGN
gliders". Become a fan and you are online with us whenever you login to Facebook.
More information about The Sock can be found on our website:
www.ad-gliders.com
For any further questions, please contact your nearest AirDesign dealer –
https://ad-gliders.com/dealerlist/?lang=en
AIRDESIGN – The Sock Manual – V1.7– 2022 09 30
WELCOME TO AIRDESIGN
AirDesign GmbH | www.ad-gliders.com
Rhombergstraße 9 | 6067 Absam | Austria
+43 (0)5223 22480 | info@ad-gliders.com
Paragliding harness
Gleitschirm-Gurtzseug
Sellette parapente
Size:
S
M
L
Größe:
Tailles :
Prod. M/Y:
Prod. M/J:
Prod. M/A :
Serial number:
Werk Nr.:
N° de serie :
Maximum pilot weight:
120 kg
Maximum Pilotengewicht:
Poids max. du pilote :
Rescue Container Volume:
2,5 - 5L
Rettungscontainer Volumen:
Volume conteneur secours :
Test Standard:
EN1651:2018
Prüfrichtlinie:
NfL 2-565-20
Test standard :
Air Turquoise S.A.
Test Center:
Prüfstelle:
CH-1844 Villeneuve
Centre de test :
READ USER MANUAL BEFORE USE!
VOR GEBRAUCH
BETRIEBSANWEISUNG LESEN!
LIRE LE MANUEL AVANT UTILISATION !
CHANGE CARABINERS EVERY 5 YEARS / 500 HOURS
WECHSELN SIE IHRE KARABINER ALLE
5 JAHRE / 500 STUNDEN
CHANGER LES MOUSQUETONS TOUS LES
5 ANS / 500 HEURES
Back protector
Rückenprotektor
Protection dorsale
Air Turquoise S.A.: PH_371_2022
AIRDESIGN GmbH
Rhombergstraße 9,
6067 Absam
AUSTRIA
Page 1/19
Advertisement
Table of Contents
Summary of Contents for AirDesign The Sock
-
Page 1: Welcome To Airdesign
Check the website Product registration page for more details. If you wish, you can enroll for the AirDesign newsletter. Simply provide us with your e-mail address and you will always be up to date with the very latest news from the AirDesign world. -
Page 2: Table Of Contents
COMPOSITION, CARE AND MAINTENANCE ........................18 ROUTINE INSPECTION ..............................18 PRODUCT REGISTRATION AND GUARANTEE ........................19 Product registration – Produktregistrierung - Enregistrement de produit ............... 19 RESPECTING NATURE AND ENVIRONMENT ........................19 AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 2/19... -
Page 3: Safety
SAFETY The Sock is certified according to the EN 1651 and the NfL 2-565-20 for a maximum pilot weight of 120kg. As a light harness, it is not advised to perform any acrobatic maneuver. Towing is permitted providing it’s done under professional supervision, with a specific quick release system, connected to the main carabiners, taking care that there is no possible interaction of the towing system with the reserve container. -
Page 4: Discovering Your Harness

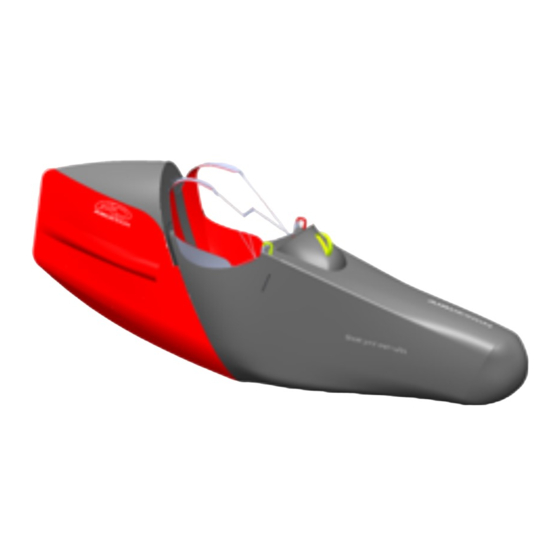

DISCOVERING YOUR HARNESS General description Safety elements Seat structure AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 4/19... -
Page 5: Large Volume Containers
Large volume containers Inflight accessible pockets AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 5/19... -
Page 6: Preparation For Flight
This protection is EN/LTF and CE certified (Reference : PH_371_2022 Before using your harness, you need to inflate the AirPillow. You can use the Sock Bag to inflate it using the pipe. Once the Air Pillow is completely filled up, close the pipe using the clamp to lock it tight. -
Page 7: Back Container
The back container offers a large storage volume. Hydration system hooking and slots: Nose container You can use the Nose container for your Sock Bag and AirPack. Warning: Avoid storing heavy objects in this pocket. AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 7/19... -
Page 8: Cockpit
The Cockpit is covered with Velcro and allows you to display all your instruments. The Mesh pocket underneath is perfect for all kinds of energy reserves (batteries, power bars). Furthermore, The Sock is delivered with a Hook-Knife and leash – for emergency. -
Page 9: Clipping-In Your Harness
Make sure the connection is free and nothing is tangled with other lines from the pod. Then close the right panel passing the rescue container loop around the left red toggle. Red to Red. AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 9/19... -
Page 10: Chest Cross Straps
Chest cross straps Close chest strap using the clip. Connection to the paraglider risers Warning! Ensure that carabiners are locked and not twisted before take-off. Connecting the speed bar AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 10/19... -
Page 11: Harness Adjustments
HARNESS ADJUSTMENTS 1: Seat Inclination adjustment (thigh support) Adjust the strap height to reach a comfortable thigh support and inclination. AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 11/19... -
Page 12: Leg Length Adjustment (Footplate)
Adjust the lumbar straps symmetrically for a comfortable fit and balanced back support. 6: Upper back adjustment (Shoulder straps) Adjust the shoulders symmetrically for a balanced back support. AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 12/19... -
Page 13: 7: Speed Bar Adjustment
Remark: Perform all adjustments with shoes on and all your gear in flight configuration (Weight distribution matters) In flight Adjustment You can adjust Back and Shoulders during the flight, but we recommend you to do it before take-off. AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 13/19... -
Page 14: Enjoy Your Flight
Enjoy your flight! AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 14/19... -
Page 15: Preparing Your Harness (Details)
The harness is delivered with Carabiners. In case you have to remove them, please respect the mounting as here below. Rescue installation Risers’ connection To connect your rescue to the risers, please proceed as shown here below. AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 15/19... -
Page 16: Rescue Handle Connection
Follow then the instructions related to your rescue or ask a flight instructor or professional with experience in paraglider rescue installation. By any mean, avoid friction with unsheathed Dyneema lines or ropes. Rescue handle connection Container closing AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 16/19... -
Page 17: Rescue Deployment
We recommend a rescue pull out at least once a year and at every repacking in order to verify its proper functioning. Warning : User must check that the length between the handle and the container does not allow entanglement with the rescue lines. AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 17/19... -
Page 18: Harness Packing
Do not use the carabiners if any sign of damage is visible or if they have been used in a wrong way (lateral load for example) on a previous flight, or if they have suffered from a shock. AIRDESIGN – The Sock Manual – V1.7– 2022 09 30 Page 18/19... -
Page 19: Product Registration And Guarantee
Do not make unnecessary noise and respect sensitive biological areas. The materials used on the harness should be recycled. Please send old AIRDESIGN harnesses back to AIRDESIGN offices. We will undertake to recycle the harness. Thank you, now put your Sock on, go out and enjoy your flights! AIRDESIGN –...
