Summary of Contents for HELI HYC-L300

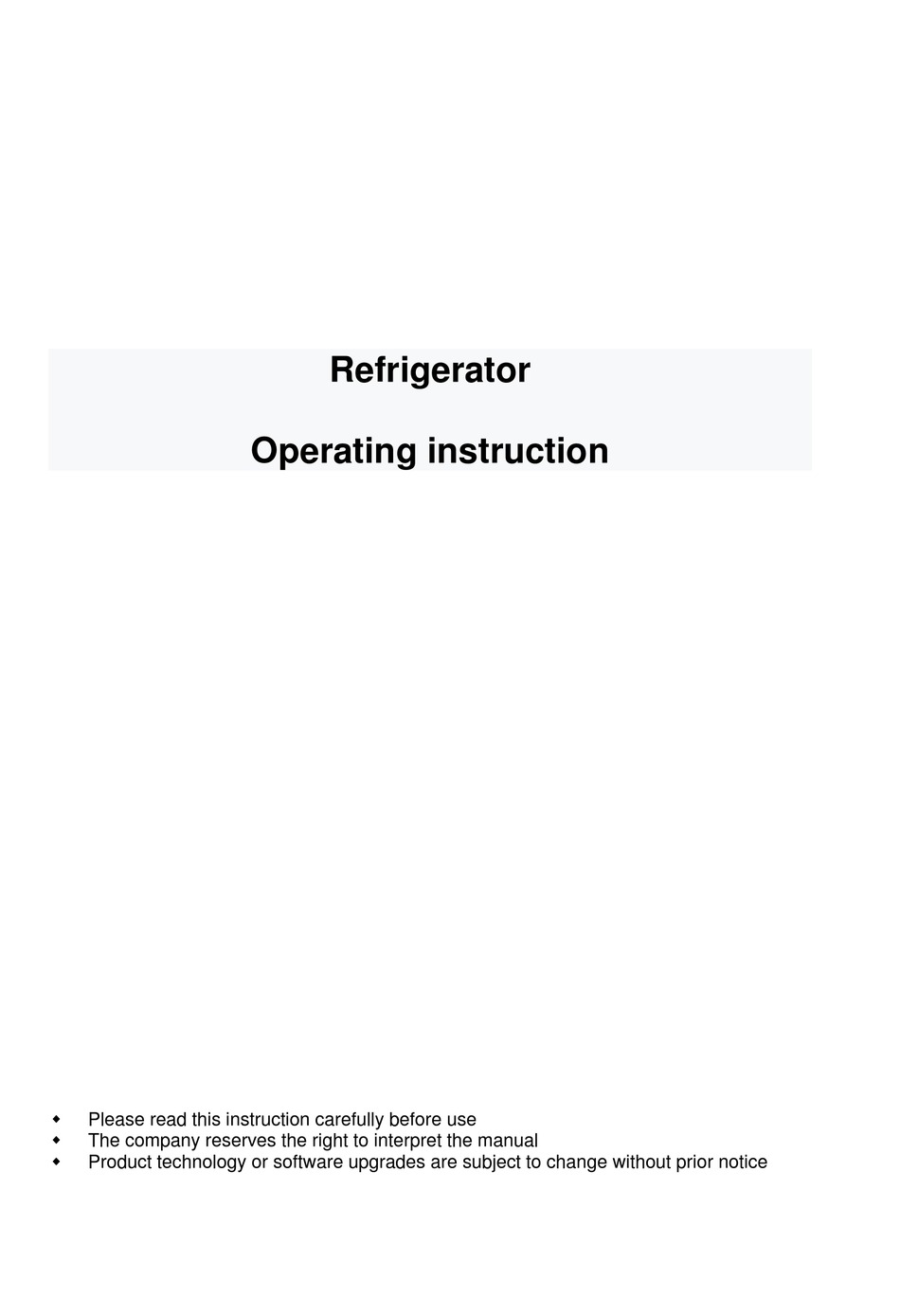

- Page 1 Refrigerator Operating instruction Please read this instruction carefully before use The company reserves the right to interpret the manual Product technology or software upgrades are subject to change without prior notice...
-
Page 2: Table Of Contents
Catalogue 1.Statement…………………………………………………………1 2.Product appearance diagram…………………………………2 3.Product install and precautions ………………………………4 4.Control state……………………………………….………………5 4.1 Key function……………………..……………………………….5 4.2 Temperature setting……………………………………………6 4.3 Over temperature alarm…………………………………………7 4.4 Open door alarm…………………………………………………7 4.5 Error code…………………………………………………………7 5.Routine maintenance………………………………………………9 6. Main performance indicators……………………………………10 7. Main performance indicators……………………………………11 7.1 Main technical parameters………………………………………11 7.2 Packing list…………………………………………………………11 7.3 Electrical schematic diagram……………………………………12... -
Page 3: Statement
Try to use the accessories provided by heli refrigeration, if the user wants to use other accessories, heli refrigeration will not be responsible for the adverse consequences.However, users can apply to heli refrigeration to verify whether the accessories meet the requirements of heli refrigeration. -
Page 4: Product Appearance Diagram
Once the power supply is interrupted in use, please wait for 5 minutes before reconnecting to avoid damage to the compressor. In case of machine failure or power failure, the temperature in the normal temperature cabinet will rise. If it cannot be repaired within a short time, please take out the stored items and transfer them to other places that meet the storage temperature requirements to avoid damaging the items. - Page 5 Product installation and precautions Handling:handling should lifted from the bottom, cant more than degrees, gently lift and put Must not grasp the door body or liner as a stressed part. Please check the random attachments and materials according to the packing list。 The product should be cleaned before use。...
- Page 6 Relative humidity: ≤80% No strong vibration and corrosive gas around, electromagnetic interference No direct sunlight and other cold and heat sources ☞ Working system of normal temperature cabinet: intermittent operation • • safety precautions Figure: N and E are not connected Power supply voltage: the machine USES 220V/50HZ ac power supply.
-
Page 7: Temperature Setting
1 overtemperature alarm mark 2 door opening alarm mark 3 battery status mark 4 cabinet temperature display 5 mute key 6 set key 7 up key 8 down key 9 print key 10 light on key It is recommended not to adjust the set temperature at will during normal use.When the alarm sound prompt needs to be cancelled, you can press the mute button to cancel the sound prompt, but the alarm indicator light and alarm code will be displayed until the alarm state is cancelled.If there is special need to adjust, please call the after-sales service number or by... -
Page 8: Overtemperature Alarm
The number is 5 ℃ Default setting temperature Hold down the Settings key for 3 Save the user Settings and display the temperature inside the seconds refrigerator 4.3 overtemperature alarm: In order to ensure the safety of stored goods in the box, electronic temperature controller has alarm function.When the room temperature inside temperature is higher than 6 degrees or below 2 degrees and lasts 10 minutes (alarm delay, prevent to open the door to normal temperature, such as frequent alarm buzzer alarm, alarm characters on the screen at the... - Page 9 displayed again, so as to avoid the failure of the normal temperature cabinet due to the change of control parameters. In case of power failure or other faults, the normal cabinet will be temporarily stopped, and the temperature inside the normal cabinet will rise, and the temperature of the box may rise from 5℃...
- Page 10 5. Daily maintenance During routine maintenance, in order to prevent electric shock or injury, be sure to cut off the power of the equipment before any repair or maintenance.Make sure that you do not inhale drugs or aerosols around the device during maintenance, which may endanger your health.Be sure to wear dry gloves to protect your hands during maintenance.Fingers may be cut on the edges or corners of the case without gloves.
- Page 11 6. After-sales service Any product may fail. Please timely observe the operation of the normal temperature cabinet during use. If there is any abnormality, please check and deal with it according to the following table.If you can't change the situation, please inform our service center in time. We will serve you wholeheartedly to avoid any loss to you.
-
Page 12: Main Performance Indicators
7 Main performance indicators 7.1 Main technical parameters Set in the Rated Equipment refrigerator Outside size Effective The input CLIMATE （D×W×H safety ITEM voltage ~ Rrefrigerant TYPE power （W） capacity （mm） Temperature classification frequency range HYC-L300 220/50~60 4±1℃ 300L R134a 595*605*1940 （HXC-L300）... -
Page 13: Electrical Schematic Diagram
7.2 Electrical schematic diagram P power plug L live wire N null line PE ground K1 power switch C2 capacitor M condensate fan M1 compressor M2 evaporator fan WK microcomputer controller PT temperature probe K1 door switch R heating wire L1 lamp Quality Guarantee Card Product name: ---------------------------------...
