Hellmertz Radiolink GSM-A2 Quick Start

Radiolink GSM-A2 Quick-start

Technical data

Measurements 105 x 80 x 30 mm
Voltage 10-28 VDC
Current Standby approx 16 mA, 500 mA peak
Inputs 4 inputs NO or NC, alternative temperature
Outputs 2 Closing rely outputs 1A 24V AC/DC
Temperature- Internally or optional temperature sensors on input
measurement 1-4. measurement area +50 till –35 grader
Ambient
-20 to +55 centigrade's, non condensing
temperature
8
Selhella 13
220 Hafnarfjörður
Sími: 554 0500
E-mail: info@bodtaekni.is
Hemsíða www.bodtaekni.is
Radiolink GSM-A2 Quick-start
I shooting with SMS saves a lot of time
NTRODUCTION
and travel
Application for ANDROID and internet
Thank you for choosing the GSM-A2.
programming are in preparation and
For using the product to its full poten-
coming in Q3 2011.
tial, please note that this is a quick-
start guide. A complete manual are in
Package:
preparation and will be ready Q3 2011
GSM-A2 unit

Function

GSM-antenna
Quick-start instruction

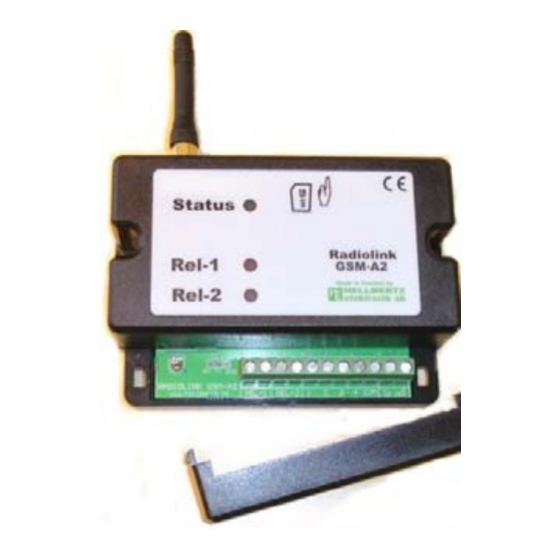

GSM-A2 is compact universal GSM
communicator that can alert on vari-
ous events by sending SMS as power
Options:
fail, triggering of inputs, temperature,
Antennas
or other sensors.
Antenna cables
Temperature sensor

Alarm types

Magnetic contacts
PIR sensors
GSM-A2 is designed to send SMS to
GSM Toolkit compact disc with cables
subscribers in the mobile phone net-
work. Some mobile operators have
SMS to mail service.

SIM card

GSM-A2 is designed for operation in
the GSM network and a valid SIM card
must be inserted in the unit.
It works in the 2G network and SIM-
card with only 3G can not be used.
We recommend subscription but pre-
paid can be used.

Presets:

In GSM-A2 it is possible to select
different presets that covers the most
common applications and lets you
start-up the unit quick and simple.
With one SMS command you select
one of 3 applications described on
page 4-6.

Programming

With the PC program GSM Toolkit you
have power tool to program your
GSM-A2 and optimize it for your appli-
cation.
Distance programming and trouble
1
Selhella 13
220 Hafnarfjörður
Sími: 554 0500
E-mail: info@bodtaekni.is
Hemsíða www.bodtaekni.is
ANDROID APP
