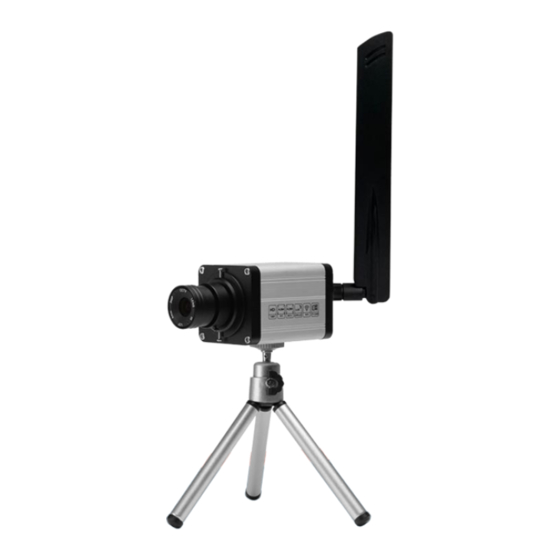

Summary of Contents for HaiweiTech V1-W
- Page 1 USER MANUAL FOR HaiweiTech V1-W IP CAMERA...
- Page 2 Contents Ⅰ Interfaces Ⅱ Getting Start Ⅲ Web GUI 1-Status 11- Time code 6- TS code 2- Network 12- Recording 7- Audio 3- Protocols 13- P2P- Lens 8- OSD 4- RTMP/ RTMPS 9- Image optimize 14- System 5- SRT 10- ONVIF Ⅳ...
- Page 3 Interfaces Audio out Line-in Wifi antenna Red: Power Yellow: Streaming RS485 port USB Port Power In Factory reset * Dismountable lens Network port Start recording...
- Page 4 ① Getting V1-W, Router, and PC connected ① V1-W ② ① Connect the IP camera to router via a RJ45 cable ② Connect the PC to the router that has already connected to the V1-W...
- Page 5 ② Configure the PC Net 4- Enter IPV4 and fill the 1- Get current IP IPv4 address you get from Windows+ R → cmd the 1 step and its subnet mask →Enter: ipconfig and default IP gateway →Get the IPv4 Add Fill the correct dns, 8.8.8.8 suggested for global streaming 2- Enter...
- Page 6 ③ Configure the IPC Net 1- Open a Browser and enter Default IP address of the IPC 192.168.1.168. if it not accessible, please reset it by pressing the RST for 15s and try again. • If transmission over LAN required, you may need to configure an unusable IP and gateway for the WIFI connection;...
- Page 7 ④ Getting WiFi connection * Mount the WiFi antenna before getting start 4 -If transmission over WIFI required, you may need to configure an unusable IP and gateway for the LAN connection. 1- Switch to STA mode Reboot the device 2- Get the Wi-Fi by clicking 5- Reboot the IPC...
- Page 8 Web GUI 1- Status The status of the processing and the streaming URL displaying here (1 and 2 RTSP, HTTP, UDP, RTP, HLS here). The statistics of the encoded information will keep going if it works correctly; besides that, it provides overall view for current encoding information. HTML5 based preview could be implemented by enabling the HLS function, but ensure it is H.264 based, for it does not support HLS over H.265.
- Page 9 APP—LiveX, control the encoder and record the video at anywhere, any network, any device. Android/ IOS: download it on its apple/ Google play store Or scan the QR code to get the APP downloaded from our website Video about LiveX on YouTube: https://www.youtube.com/watch?v=GyAD7EhDvAc=210s Or Search “Haiwei softwares”...
- Page 10 3- Protocols Protocols display on the HTTP, RTMP, HTTP, RTSP, UDP, RTP, SRT can be configured here HTTP/ RTSP/ Unicast/ Multicast relevant protocol then Fill the server/ destination IP and port then...
-
Page 11: Network Configuration
RTMP/S Get the stream URL and stream key on the platform (use Facebook as instance ) Fill rtmps://live-api-s.facebook.com:443/rtmp/2541… on the URL option the RTMPs then Network configuration required before streaming to platform... - Page 12 Caller mode Listener mode Encoder Decoder Caller server Enter the Server/ destination IP and its Port then SRT stream URL srt://current IP:port...
- Page 13 TS Code Current TS info Video ID= Stream ID Audio ID= video ID+1...
- Page 14 Audio Set up the audio encoding information here Set up OSD (On Screen Display) here, the logo should be named logo.bmp ( at 24bit), the size of the file should not exceed 100kb. The logo for 2 stream should be named as logo_ext.bmp...
- Page 15 Color Those features would be of help under some different environment, different figures should be considered if the video is dim or over bright and other video performance related issues. ONVIF Time Code The server could be time.windows.com, or national NTP server...
- Page 16 Recording More • This function is for remote control or P2P transmission, explained its steps to get connected in THIS page • LDC Correction This function is designed for adapting different type of lenses if the video distorted Here are some suggestion for different lenses 4mm- 400, 6mm- 200.
- Page 17 System System * Timing reboot If the streaming is connection based (except UDP and RTSP over UDP), setting up 168 hours is necessary so as to avoid network cache and latency accumulation. Version Upgrade...
