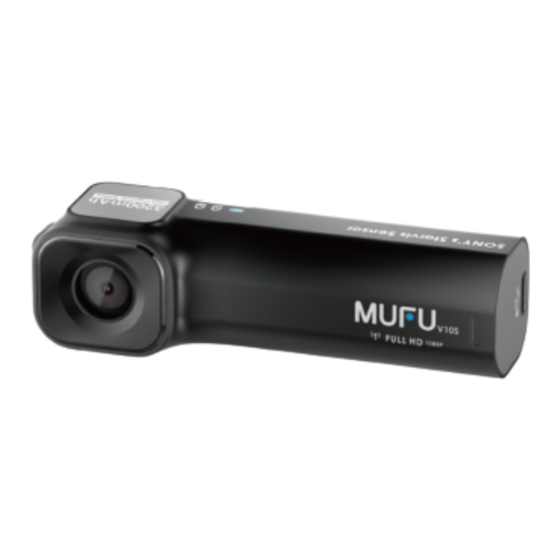

MUFU V10S User Manual

Moto cam
Hide thumbs
Table of Contents

Advertisement

Quick Links

V10S
Moto Cam
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V10S and is the answer not in the manual?

Questions and answers

Related Manuals for MUFU V10S

Summary of Contents for MUFU V10S

  • Page 1 V10S Moto Cam User Manual...
  • Page 2 6 months to maintain the battery's health and avoid low-voltage related damage. 5. Please download MUFU MoTo app from iOS app store or Google Play Store before use. The Wi-Fi password is 12345678. 6. By default, Wi-Fi is ON for 3 minutes when the camera is powered on. If it doesn’t connect to the MUFU MoTo app within 3 minutes, the camera...

  • Page 3: Prohibition Of Co-Location

    10. Due to local laws and for your own safety, DO NOT operate the camera or MUFU MoTo app while driving or riding. 11. Use the MUFU MoTo app to synchronize your date and time before first use. 12. This product is intended only for non-commercial use, within the maximum limits permitted by law.

  • Page 4: Ce Regulatory Notice

    CE Regulatory Notice The product herewith complies with the requirements of IEC 62368-1:2014, the EMC Directive 2014/30/EU, the RED-Directive 2014/53/EU and the RoHS Directive 2011/65/EU. EU Health Protection: This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Regulatory Compliance This device complies with Part 15 of the FCC Rules.

  • Page 5: Rf Exposure Compliance

    Contains FCC ID: 2ACFIGM2WM RF Exposure Compliance This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 6 “Switch Off 2-way Radios” sign by switching off camcorders that may interfere with the radio frequency.  MUFU is NOT responsible for the loss of any data/content during operation. By using the product, it is assumed that you agree to all of...
  • Page 7 Step 1: Check What’s Inside The package contains the following items. If any items are missing or damaged, please contact the original place of purchase immediately. Main Unit 3-in-1 Mount Hex Wrench Safety Cord USB Cable (type C) User Manual...

  • Page 8: Step 2: Product Overview

    Step 2: Product Overview Description Description LED indicator microSD slot / Reset Power on/off USB port (type C) sensor area Microphone Lens...

  • Page 9: Step 3: Insert Microsd Card

    Step 3: Insert microSD Card Insert the micro SD memory card with the pins facing forward and the Main Unit lens facing forward too. (See below for proper installation orientation.) Once the memory card locks into place, replace the slot cover securely over the slot.
  • Page 10 The slot cover must be tightly sealed to prevent moisture from entering, causing the lens to fog. Insert the lower edge of the slot cover, then press the top edge and sides of the slot cover to create a good seal. See below.

  • Page 11: Step 4: Led Indicator

    Step 4: LED Indicator Indicator Light Status Description Blue, slow flashing Recording Recording Blue, solid Power on, No recording Blue, rapid flashing Emergency recording Red, solid Charging Charging No Red light Full charged Battery Green, rapid flashing Low battery Note: Before first use, use the supplied USB type-C charging cable to fully charge the Main Unit.

  • Page 12: Step 5: Download The App

    Step 5: Download the App When using the camera for the first time, use your smartphone to download and install the MUFU MoTo app. Scan below QR code or search “MUFU MoTo” in the iOS App Store Google Play Store. Android APP layout and features may be changed subject to different software versions.

  • Page 13: Step 6: Wi-Fi Connection

    1. Wi-Fi is turned on automatically when Main Unit powers on. If the Main Unit doesn’t connect with the MUFU MoTo app within 3 minutes, Wi-Fi will be disabled automatically to save battery life. If you want to turn on Wi-Fi once...

  • Page 14: Step 7: Main Unit Installation

    Step 7: Main Unit Installation Main Unit can be installed either on the right or left rearview mirror. Please use Rear-mirror Mount and Adjustable Mount to adjust and fine tune installation position of the camera. See below for an example of a left side installation. Unbolt the rearview mirror and install 3-in-1 Mount as seen below.
  • Page 15 Note: Regardless of whether the Main Unit is installed on left or right side, the MUFU logo on the mount must always be upright and face out, with the LED indicator lights always facing up. Below are installation examples for reference.
  • Page 16 Make Sure your smartphone is connected via Wi-Fi with MUFU_V10S_xxxxxx, open the MUFU MoTo app check preview image, and adjust Rear-mirror Mount and Adjustable Mount to optimize recording view angle. When you have the desired position, use the included hex tool to tighten the mount screws.
  • Page 17 Fasten the safety cord from the Main Unit to the safety ring on the mount to protect your camera from accidentally falling out of the mount while riding.
  • Page 18 Step 8: Main Unit Calibration and Use After adjusting your viewing angle, tap in the MUFU MoTo app to enter “Camera Setting”. On first use, be sure to calibrate “Tilt Sensor” and “Format” microSD card. Calibrate the Tilt Sensor Hold your motorcycle upright, straight and still as possible, then tap on “Tilt Sensor”...

  • Page 19: Step 9: Change Password

    Step 9: Change Password To change the Wi-Fi password, follow the steps below. If left unchanged, the default password is 12345678. Open MUFU MoTo app , and tap to enter “Camera Setting”. Next, tap “Wi-Fi Password”, 12345678) Enter old password. (Default password: →...
  • Page 20 iPhone users: Open the Wi-Fi connection and tap the icon (i) by side of MUFU_V10S_xxxxxx. Next, tap “Forget This Network”. Below image will show up, tap “Forget”. *Note: Android phone user can skip this step. Next, tap MUFU_V10S_xxxxxx network again to re-enter your new password and reconnect your smartphone to the camera.
  • Page 21 Step 10: App Operation Main Screen...
  • Page 22 Full screen preview Preview image Note: 1. The MUFU MoTo App will auto synchronize camera’s date/time with your smartphone. 2. App layout and features are subject to change depending on the software version. Refer to Google Play Store or iOS App Store for the latest updates.
  • Page 23 Playback, delete and download Use this feature to playback or delete the file saved in the Main Unit, or to download the file from Main Unit to your smartphone. 1. Tap the icon [Video playback] or [Picture playback] to enter file playback list. Recording will stop. 2.

  • Page 24: Icon Description

    Icon Description Download file to smartphone Delete file Exit Note ： 1. If recording has no audio, check if Audio Recording is OFF in the menu. If you do turn it on, it means the smartphone itself doesn’t support the video decoding. It’s not the problem of the file. We recommend you to install free media player such as VLC to playback the file.
  • Page 25 Local Album Use this feature to playback or delete the file that you download to your smartphone. 1. Tap the icon [Local Album]. Recording will stop. 2. Tap the file from preview thumbnail you are going to playback. 3. Tap the right top corner “Select” and pick up the files that you want to delete, and tap icon to execute.
  • Page 26 Yes / No detection. Default Reset the camera to factory default settings. Yes / No Setting Format the memory card in V10S. This will Format Yes / No delete all contents permanently. Wi-Fi Set the Wi-Fi activation duration. Always on /...

  • Page 27: Step 11: Final Checks

    Firmware Indicates the current firmware version of Version V10S. Indicates the current application version. Version Step 11: Final Checks □ Peel off lens protective film □ Fully charge the Main Unit (Red LED off) □ Tilt Sensor calibration done □...

  • Page 28: Specifications

    Specifications Item Description Image Sensor SONY’s Starvis Sensor Effective Pixels 1920 (H) x 1080 (V) Storage Media Suggest V30 or higher microSD card, up to 128GB Wide angle fixed focus lens Lens Aperture ： up to F/2.2 Resolution ： 1080P/ 30 fps Video File Format ：...
  • Page 29 Sony’s Starvis Sensor, AI noise reduction perfect night vision. Topple-over detection, auto TS video format emergency recording and lock the file. Dedicated MUFU app for Multiple optional preview, download and accessories for various setting. demands.

  • Page 30: Terms & Conditions Of Warranty

    Terms & Conditions of Warranty Within the scope of the warranty, we commit a 12-month  warranty of the MUFU products from the date of purchase. If there is no purchase receipt to prove the date of purchase,  the manufacture date of this device should be deemed as the effective date of this warranty.
