Summary of Contents for DCA M1Q-FF-85

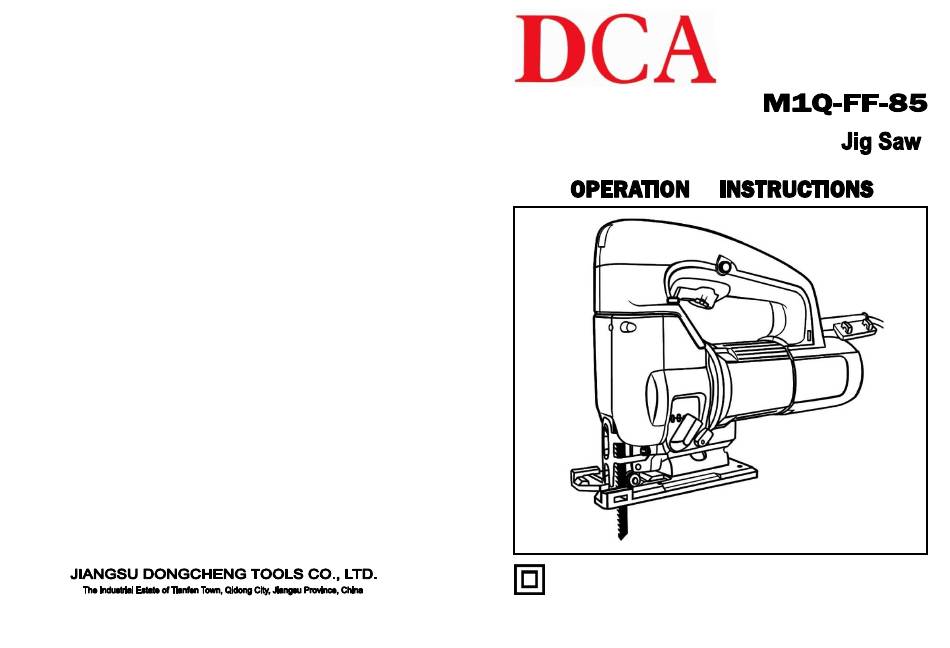

- Page 1 Read through carefully understand these instructions before use. Edition 2 July, 2011...
-
Page 2: General Safety Rules
Personal Safety GENERAL SAFETY RULES 9. Stay alert, watch what you are doing and use common sense when operating (For All Tools) a power tool. Do not use tool while tired or under the influence of drugs, WARNING! Read and understand all instructions. Failure to alcohol, or medication. -
Page 3: Specifications
20. Maintain tools with care. Keep cutting tools sharp and clean. Properly SPECIFICATIONS maintained tools with sharp cutting edges are less likely to bind and are easier to control. Rated Power Input 580 W 21. Check for misalignment or binding of moving parts, breakage of parts, 500-3100 …/min Strokes per Minute and any other condition that may affect the tools operation. -
Page 4: General Description
Remove all obstacles both on and under the cutting line of the workpiece GENERAL DESCRIPTION during operation. 10. Check for the proper clearance beyond the workpiece before cutting so that the blade will not strike the floor, workbench etc. 11. Do not cut oversize workpiece. 12. -
Page 5: Instructions For Operation
INSTRUCTIONS FOR OPERATION Speed Control Speed can be infinitely adjusted between Safety Protector 500 and 3,100 strokes per minute by turning the adjusting dial. Higher speed is CAUTION: obtained when the dial is turned clockwise; Always keep the safety protector in lower speed is obtained when it is turned place during operation for your counterclockwise. - Page 6 — Turn the saw blade with the teeth facing in the cutting Selecting Orbital Action direction. Slightly lift the saw blade so that the back of the saw blade comes to rest in the groove of the blade roller CAUTION: guide.
- Page 7 To achieve precise cutting angles, the base can be fitted at 0° and 45° (left and right). Cutting/Sawing Operation For this, however, the base must be pushed back (towards the motor) to the stop so CAUTION: that the notch in the base engages in the positioning pin. Always hold the tool with the base flush with the workpiece.
- Page 8 For splinter-free cuts, the splinter Metal Cutting guard can be used. To install the splinter guard, simply Always use a suitable coolant (cutting oil) when cutting metal or similar materials. press it into the base. (Fig. 8) Failure to do so will cause significant blade wear. Guide Rule (optional accessory) CAUTION: Always be sure that the tool is switched off and unplugged before installing or...
-
Page 9: Maintenance And Inspection
MAINTENANCE AND INSPECTION CAUTION: Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance. After Metal Cutting When cutting metals under extreme working conditions, conductive dust can accumulate in the interior of the machine and impair its protective insulation. In such cases, it is recommended to use stationary dust extraction equipment, to blow out the ventilation slots frequently and to power the tool via a ground fault circuit interrupter. - Page 10 EXPLAINATION OF GENERAL VIEW EXPLAINATION OF GENERAL VIEW Handle Cover Snap Washer Spring Stroke Rod Pan Head Tapping Screw Retaining Sleeve Slide Support Washer ST4.2×19 Switch for Sawdust Blower Slide Groove Pan Head Screw M4×14 Cross Recessed Countersunk Pan Head Screw M4×20 (with Grip Ring Needle Bearing HK0608 Head Screw M3.5×10...
