Quick Links

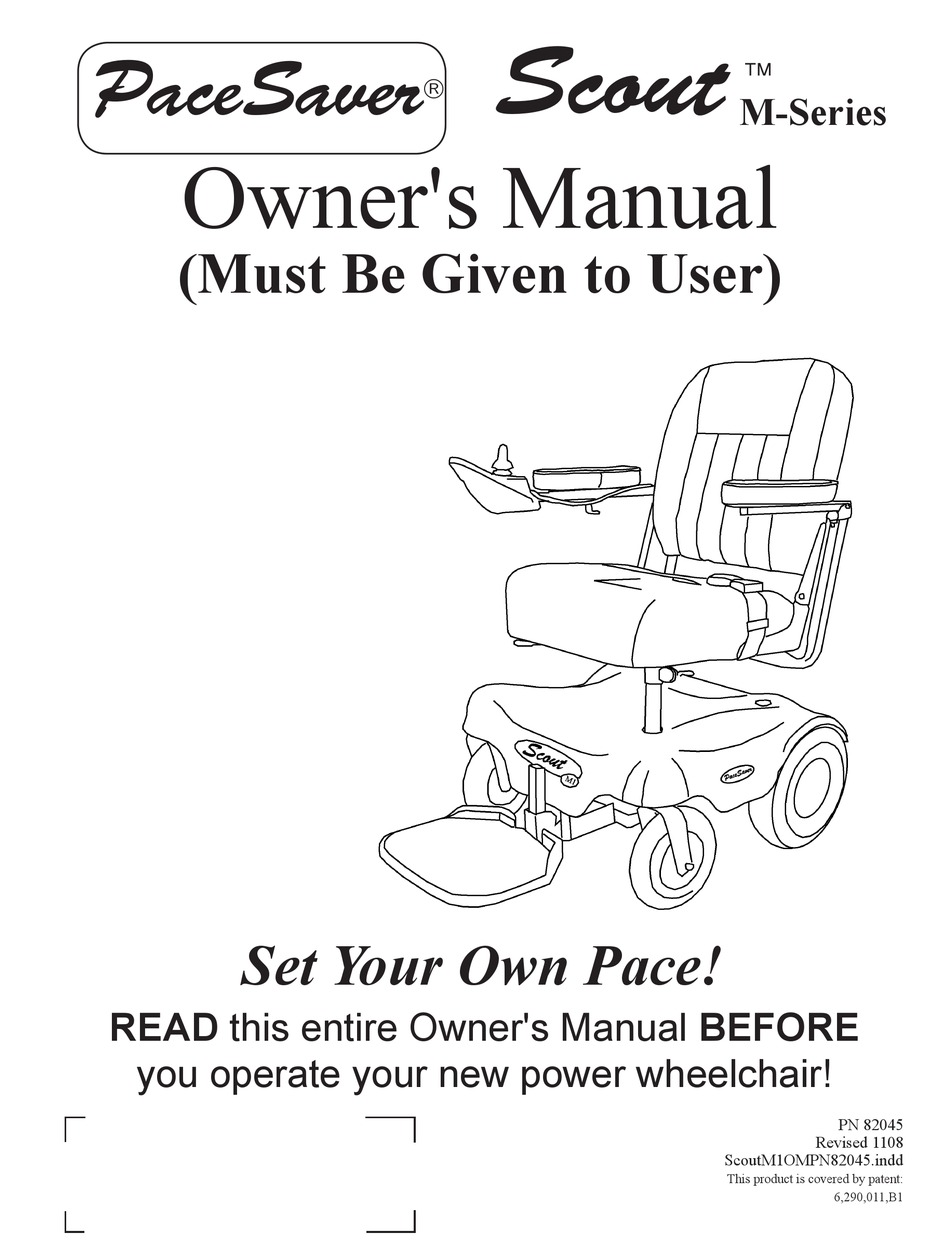

Scout
PaceSaver
M-Series
Owner's Manual
(Must Be Given to User)
Set Your Own Pace!
READ this entire Owner's Manual BEFORE
you operate your new power wheelchair!
PN 82045
Revised 1108
ScoutM1OMPN82045.indd
This product is covered by patent:
6,290,011,B1
47

Advertisement

loading
Need help?

Need help?

Do you have a question about the Scout M Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PaceSaver Scout M Series

Summary of Contents for PaceSaver Scout M Series

  • Page 1 Scout PaceSaver   M-Series Owner's Manual (Must Be Given to User) Set Your Own Pace! READ this entire Owner's Manual BEFORE you operate your new power wheelchair! PN 82045 Revised 1108 ScoutM1OMPN82045.indd This product is covered by patent: 6,290,011,B1...
  • Page 2 "SPECIAL OPTION" WARNINGS...

  • Page 3: Table Of Contents

    Table of Contents THIS MANUAL COVERS THE OPERATION OF YOUR NEW PaceSaver Scout "M"-series POWER WHEELCHAIRS. BE SURE AND FIND THE INFORMATION THAT PERTAINS TO YOUR NEEDS BEFORE OPERATING. Introduction Important Safety Information Specifications 13 Getting On and Off the Power Wheelchair Operating the Power Wheelchair Drive System Instructions Your First Ride...

  • Page 4: Introduction

    PaceSaver Scout "M"-series OWNERS MANUAL Introduction Congratulations on your choice of power wheelchair! It is a de- pendable vehicle built for power and performance. Its easy to operate controls give you more of what you are looking for in a wheelchair.
  • Page 5 NOTE: MODIFYING AND/OR TAMPERING IN ANY UNAUTHORIZED MANNER WITH THE POWER WHEELCHAIR WILL VOID THE WARRANTY AND MAY CAUSE THE WHEELCHAIR TO MALFUNCTION, EXPOSING YOU TO PHYSICAL HARM. ATTENTION: This manual contains specific information about your power wheel- chair. While some of the information is the same for all power wheelchairs, make sure that you follow the specifications and directions that apply to your powerchair.
  • Page 6 Keep your feet on the footrests while riding the power wheelchair to avoid hitting them on objects as you drive. Always wear shoes while operating your power wheelchair. Always wear your lap belt when riding your power wheelchair. Secure the removable seat assembly before operating the power wheelchair to prevent yourself from falling from the seat while moving.
  • Page 7 Disconnect the batteries before performing any maintenance or if you will not be rid- ing the power wheelchair for more than a few days. This avoids both the possibility of injuries due to shock and helps lengthen the battery life. Make sure that the batteries are secure when you are using the power wheelchair.
  • Page 8 CONVENIENT TIE DOWN POINTS The following is a list of convenient locations that the straps from a 4 point secure- ment system could be anchored on PaceSaver products. These products have not been crash tested and certified as crash worthy using these locations.
  • Page 9 ride your power wheelchair without wearing your lap belt at all times or DO NOT serious injury may result. This is especially important on ramps or inclines. drive up, down or across inclines greater than the rating for your style power DO NOT wheelchair or tipping will result.
  • Page 10 power wheelchair DO NOT use an escalator to move a between floors. Serious bodily injury may occur. power wheelchair ALWAYS turn the power OFF and engage the motor locks/clutches to power prevent the wheels from moving BEFORE attempting to transfer in or out of the wheelchair .
  • Page 11 ELECTRICAL EXTREME care should be exercised when using oxygen in close proximity to electric cir- cuits. Contact your oxygen supplier for instruction in the use of oxygen. Grounding instructions: DO NOT, under any circumstances, cut or remove the round grounding prong from any plug used with or for Leisure-Lift products.
  • Page 12 WEIGHT TRAINING power wheelchair Leisure-Lift DOES NOT recommend the use of its as a weight training Power wheelchairs apparatus. have NOT been designed or tested as a seat for any kind of weight training. If occupant uses said wheelchair as a weight training apparatus, Leisure- Lift shall NOT be liable for bodily injury and the warranty will be voided immediately.
  • Page 13 STAIRWAYS WARNING DO NOT attempt to move an occupied power wheelchair between floors using a stairway or escalator. Use an elevator to move an occupied power wheelchair between floors. If moving a power wheelchair between floors by means of a stairway, the occupant MUST be removed and transported independently of the power wheelchair Again, DO NOT use an escalator to move a wheelchair between floors.
  • Page 14 REACHING, LEANING, BENDING AND BENDING - FORWARD Position the rear casters so that they are extended as far rearward as possible and engage motor locks/clutches. DO NOT LEAN FORWARD OF THE ARMRESTS. REACHING, BENDING - BACKWARDS WARNING DO NOT lean over the top of the back upholstery. This will change your center of gravity and may cause you to tip over.

  • Page 15: Specifications

    SPECIFICATIONS Scout "M"-series Scout "M1-CC" 300 lb. Scout "M1-350-CC" 350 lb. Seat Width Range: 18" - 24" 18" - 24" Seat Depth: 18" 18" Seat-to-Floor 20" - 22" 20.75" - 22.75" Seat-to-Footplate 13.5" - 18.5" 14.25" - 19.25" Overall Width ( No joystick): 23.5"...

  • Page 16: Getting On And Off The Power Wheelchair

    Getting On and Off The Power Wheelchair The following is a recommended method for getting on your Power Wheelchair 1. The wheelchair should be stopped on a flat, level surface with the power switch in the OFF position (no visible lights). (SEE WARNING BELOW) 2.

  • Page 17: Operating The Power Wheelchair

    Operating the Power Wheelchair Controls for the power wheelchair operation are located on the arm mounted joystick console and the power module mounted to the frame. Become familiar with all controls with the power button in the OFF position. Each is described in the following section ...
  • Page 18 Each of the speedometer's 6 large LEDs Top Speed 3 typically represent 0%, 20%, 40%, 60%, 80% Top Speed 2 and 100% of the chair's absolute maximum top speed. Top Speed 4 Top Speed 1 REMD supports 2 modes of top speed adjustment - "5 Speed"...
  • Page 19 3. BATTERY INDICATOR. The SHARK Information Gauge (located on the joy- stick console) is the primary source of user feedback. It displays every possible status that SHARK may have. True state-of-battery-charge, including notification of when the battery desperately requires charging. •...
  • Page 20 6. LOCKING THE SHARK Most SHARKs are supplied with a factory programmed LOCK Feature that prevents unauthorized people from turning the SHARK on. TO LOCK: While the power is ON, press and hold the Power button for 4 seconds. The horn will sound a short beep and all LED's will flash briefly. The powerchair will then turn off.
  • Page 21 METHODS FOR CONTROLLING THE DIRECTION OF YOUR POWER WHEELCHAIR. Pushing the joystick Moving the joystick di- straight forward will rectly to the left (while cause the wheelchair stationary or moving) will to move in a forward cause the chair to turn to the direction.
  • Page 22 For your first ride, we recommend the following. When possible, always work with your dealer or therapist to learn how to use your power wheelchair. Different chairs have different adjustable features such as spring suspension, programmable controllers, front anti-tips, footrest height & angle, length adjustments and arm adjustments etc. Work with your dealer to make sure the wheelchair is specifically fitted to YOUR needs.

  • Page 23: The Power Wheelchair Braking Systems

    The Power Wheelchair Braking Systems The power wheelchair brake systems allow for smooth start up and safe braking with- out undue jerking. There are three (3) separate modes to the braking system: Regenera- tive, Dynamic, and Posi-Lock Electric Braking. All braking occurs automatically during wheelchair operation and can be adjusted by your dealer.
  • Page 24 Power Seat Operation Optional power seat actuators will be operated using one of the following control systems. Joysticks with integral actuator controls The controller has two modes of operation. One is called the “drive mode”. It is used to drive the chair. The second mode is the #1 ACTUATOR “actuator control mode”...
  • Page 25 Seat Assembly Operation is available with removable, adjustable arms. These arms are de- The power wheelchair signed to provide support for your arms while seated on the wheelchair, and for some assistance when getting on and off of the wheelchair. THEY ARE NOT DESIGNED TO HOLD A PERSONS WEIGHT! Persons with no use of their legs, or no ability to transfer weight to the floor should seek other means of assistance (slide board, helper, etc.) when transferring in and out of the wheelchair.
  • Page 26 7. Replace the seat assembly and test the new height. It is recommended that the seat assembly be positioned at the lowest comfortable seat height. PaceSaver Scout "M"-series's stability will be improved with a lower height. Some models have a height adjustment, see your dealer for details.
  • Page 27 Disassembly and Assembly of the Power wheelchair The power wheelchair's easy separation makes it very convenient to disassemble and assemble the unit. Complete disassembly can be accomplished in seconds WITHOUT tools. The procedure is as follows. Make sure the power button has been placed in the off (no lights) position. Remember, it should already be in the OFF position since it was placed there when you last got off the wheelchair.
  • Page 28 CHARGING THE WHEELCHAIR BATTERIES Charging the batteries is the most important part of operating and maintaining your new wheelchair. Be sure you do it properly! It is recommended that only a gel cell or sealed suspended lead-acid type deep cycle battery be used on the Wheelchair. These batteries do not require water and have no danger of spillage.
  • Page 29 PLEASE NOTE: For your safety the wheelchair is equipped with a charger safety lockout that will not allow the wheelchair to operate while the charger plug is plugged in. Plug the battery charger into the charging socket located at the front of the Shark Joystick Console then into a properly wired wall outlet.
  • Page 30 All operation of the charger is the same as that of the off-board Micro-Lite charger outlined in your owners manual. Should you need additional information or assistance with this option, please direct your inquiry to your PaceSaver representative. ON-BOARD CHARGER ACCESS PORT ...
  • Page 31 Important Safety Instructions: ++WARNING++ Because you will be connecting and disconnecting AC voltage to the wheel- chair, DO NOT do so in the presence of moisture (i.e. rain, puddled water, snow, etc.). Electrical shock hazard could be present. Observe caution and safety warnings. a.) Observe the caution on lead-acid batteries being charged.
  • Page 32 7. Do not disassemble the charger. If there is a perceived problem with the equipment, refer to the servicing section of this manual or refer to a qualified technician for service. Incorrect assembly of the charger could result in a risk of electrical shock or fire. 8.
  • Page 33 Battery Charging The satisfactory performance of the SHARK system is critically dependent on the type and state of the batter- ies. The battery charger used must be correctly selected and adjusted according to the battery manufacturer’s instructions. Failure to do so may damage or destroy the batteries, give poor range, or be potentially danger- ous.
  • Page 34 • SHARK Lock Mode countdown. • Program, inhibit or charge modes. • Fault indication (Flash Codes) The following table indicates what the gauge will display for any given state. Display Description This means . . . Notes Power is OFF All LED's OFF Power is ON Less LED's imply...
  • Page 35 !! CAUTION !!: Be certain the wall cord is disconnected from the electrical outlet before moving the wheelchair. Moving the wheelchair without disconnecting the wall cord could result in damage to the wheelchair, the wall outlet or create a shock hazard condition. ++WARNING++: Because you will be connecting and disconnecting AC to the wheelchair, be cau- tious of doing so in the presence of water (i.e., rain or puddled water).
  • Page 36 Useful Battery Information 1. The battery indicator in the control panel takes into account time as well as bat- tery voltage to provide a more accurate estimate of battery capacity while you are driving. The display simulates a bar graph where all LED's lit represent a full state of charge and a single red LED represents the lowest state of charge.
  • Page 37 Storage of the Power Wheelchair Short Term and Overnight Storage When ending power wheelchair's use for the day, if the batteries do not need charging, simply turn the power OFF. The next morning, get in, lock the seat, activate the key, turn power ON and you are ready to go again.
  • Page 38 Twice a Year - Inspect all wheels for looseness and tire wear. - Clean the upholstery as needed. Yearly - Thoroughly examine your wheelchair to look for undetected wear and other potential prob- lems and have problems repaired immediately. The expense involved is always less than repair bills caused by a lack of proper maintenance.
  • Page 39 DIAGNOSTICS Note: SHARK is not user serviceable. Specialized tools are necessary for the repair of any SHARK component. INTRODUCTION A flashing SHARK information gauge indicates there is an abnormal condition somewhere on the powerchair. The components that SHARK provides fault information for include, the motor, the park brakes, the batteries, the cabling and the SHARK modules themselves.

  • Page 40: Commonly Asked Questions And Possible Answers

    Commonly Asked Questions and Possible Answers Why has there been a sudden loss of power? 1. Undercharged batteries. Check the BATTERY indicator. The BATTERY in- dicator indicates the charge condition of the batteries while you are driving. The indicator will not indicate the “true condition” of their capacity until the wheelchair has been setting on, in an idle condition, for several minutes.
  • Page 41 Can a regular liquid lead-acid battery be used, like in a car? No! A DEEP CYCLE battery must be used. A car battery is not deep cycle. Deep cycle batteries (boat type batteries) are available in both suspended liquid lead- acid and gel cell lead-acid.
  • Page 43 If you do not understand any portion of it, please consult the factory for details before proceeding! The PaceSaver “M” series Scout comes pre-programmed so it may be reversed and still have optimum programming. When the direc- tion control switch is activated to front or rear wheel drive modes the drive system automatically selects a program to optimize the chair’s performance in that direction.
  • Page 44 Scout M1 “PBR” (Push Button Reversible) Instructions STEPS TO CONVERT YOUR SCOUT M-Series WHEELCHAIR FROM FRONT-WHEEL DRIVE TO REAR-WHEEL DRIVE Turn power off at the joystick console. Locate the pull pin holding footplate assembly to main frame. Pull upward on ring until pin is removed from square frame tube. Pull the footplate assembly outward until it is separated from main frame.
  • Page 45 Scout M1 PBR (Push Button Reversible) Instructions STEPS TO CONVERT YOUR SCOUT M-Series WHEELCHAIR FROM REAR-WHEEL DRIVE TO FRONT-WHEEL DRIVE Turn power off at the joystick console. Locate the pull pin holding footplate assembly to main frame. Pull upward on ring until pin is re- moved from square frame tube. Pull the footplate assembly outward until it is separated from main frame.
  • Page 46 EFFECTIVE DECEMBER 2, 1994 THE FEDERAL GOVERNMENT REQUIRES THIS STATEMENT TO BE INCLUDED. ELECTROMAGNETIC INTERFERENCE CAUTION: IT IS VERY IMPORTANT THAT YOU READ THIS INFORMATION REGARDING THE POSSIBLE EFFECTS OF ELECTROMAGNETIC INTERFERENCE ON YOUR POW- ERED WHEELCHAIR. Electromagnetic Interference (EMI) From Radio Wave Sources Powered wheelchairs and motorized scooters (in this text, both will be referred to as powered wheelchairs) may be susceptible to electromagnetic interference (EMI), which is interfering to electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
  • Page 47 Powered Wheelchair Electromagnetic Interference (EMI) Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand -held radio wave sources (transceivers are of special concern). It is possible to un- intentionally bring high levels of EM energy very close to the powered wheelchair's control system while using these devices.
  • Page 48 Scout M-Series PaceSaver Scout   Limited Warranty Power Wheelchair Leisure-Lift, Inc. will repair or replace at its option to the original PURCHASER any of the following components found upon examination by an authorized representative of Leisure-Lift, Inc. to be defective in material and/or workmanship under normal use and service for a period of .
  • Page 49 WHEELCHAIR AND HAVE THEM CONTACT Leisure-Lift. If Leisure-Lift did not receive your original registration and proof of purchase you will be required to resubmit proof of purchase. Warranty is not transferable. All other terms and conditions of Leisure-Lift’s regular PaceSaver warranty apply. Failure to return a completed registration form within the time limits will void this offer.
