Summary of Contents for ScopeAround Fit
- Page 1 Fit - Focus - Flexible USER MANUAL...

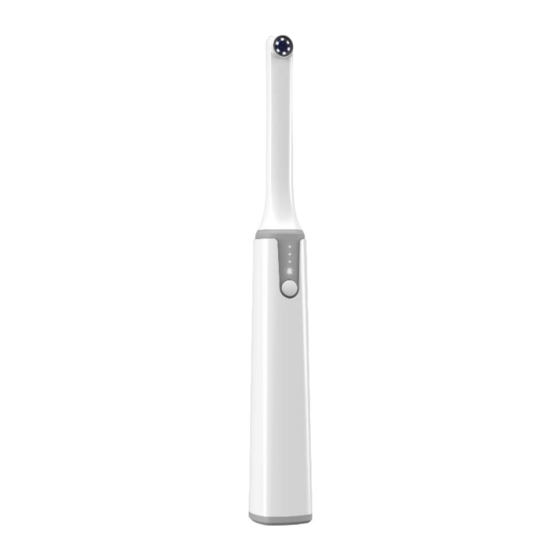

- Page 2 The FIT is a macro lens camera that can be placed as close as 1cm (0.4”) away from an object. Camera/LEDs To attach arm 1. Press the lock button 2. Insert the arm Battery Level Indicator (Recharge the device when light drops to first level) Power Button Long press to power the device on and off.
-
Page 3: Power Button
Flexible The FLEXIBLE is an endoscope that is just 5.5 mm in diameter and has 6 LEDs on the camera tip. To attach arm 1. Press the lock button 2. Insert the arm Flexible probe with camera (IP67 waterproof) Battery Level Indicator Power Button MicroUSB Charging Port Reset Button... - Page 4 Focus The FOCUS microscope features an adjustment wheel that can zoom up to 150x. It has a backlit tray for a brighter field of vision and uses two clips to hold the subject. Focus Wheel Rotate the head Clockwise to zoom in and counter clockwise to zoom out Lock Nut...
- Page 5 1. Press the lock button 2. Insert the arm 3. Insert the handle into the lock nut and tighten it. Brightness Adjustment Wheel 4. Insert the connector into the handle. 5. Push the pen through the ring and tighten the lock nut. Clamp Tray with Backlight...
- Page 6 Charge the battery Only use chargers marked: Output 5V 1A, or 5V 2A. If you do not know the voltage and current of your charger, use the USB cable to charge the camera with your computer. The camera charges to 100% in approximately 3.5 hours under 5V 2A and 4.5 hours under 5V 1A.
- Page 7 Download ScopeAround App ScopeAround www.scopearound.com/sa.exe...
- Page 8 Step 1: Long press the power button for 2 seconds to power on the device (Make sure the battery level is high) Step 2: Enter Wi-Fi settings on your phone Connect to ScopeAround_xxxxx with password 00000000...
- Page 9 Run the app and enjoy!
-
Page 10: Technical Data
Technical Data Description Data Network Standard IEEE 802.11 b/g/n Antenna Built-in antenna Operating Frequency 2.4GHZ Data Rate 802.11 b/g/n: up to 300Mbps Camera Diameter 11mm (0.433 inch) Camera Length 88 mm (3.46 inch) Image Sensor CMOS Video Resolution 800x600, 1280x720 Viewing angle 45°... - Page 11 Technical Data Flexible Description Data Network Standard IEEE 802.11 b/g/n Antenna Built-in antenna Operating Frequency 2.4GHZ Data Rate 802.11 b/g/n: up to 300Mbps Camera Diameter 5.5mm (0.217 inch) Probe Length 1000 mm (39.37 inch) Image Sensor CMOS Video Resolution 800x600, 1280x720 Viewing angle 60°...
- Page 12 Technical Data Focus Description Data Network Standard IEEE 802.11 b/g/n Antenna Built-in antenna Operating Frequency 2.4GHZ Data Rate 802.11 b/g/n: up to 300Mbps Camera Diameter 8 mm (0.315 inch) Camera Length 150 mm (5.9 inch) Image Sensor CMOS Video Resolution 800x600, 1280x720 Max.
- Page 13 • Use only branded AC adapter approved for use with this device. • Place the AC adapter and the ScopeAround equipment in a ventilated area, such as desk top or on the floor, when you use it to charge the battery.
- Page 14 Uncover new views in your daily life! Please email support@scopearound.com to get support. ScopeAround ScopeAround Inc., San Francisco, CA 94115 USA TM and © 2016 ScopeAround Inc. All rights reserved. www.scopearound.com...
