QUICK START GUIDE for GOelectronic Streaming Kit –
No Computer Needed (SDI Version)

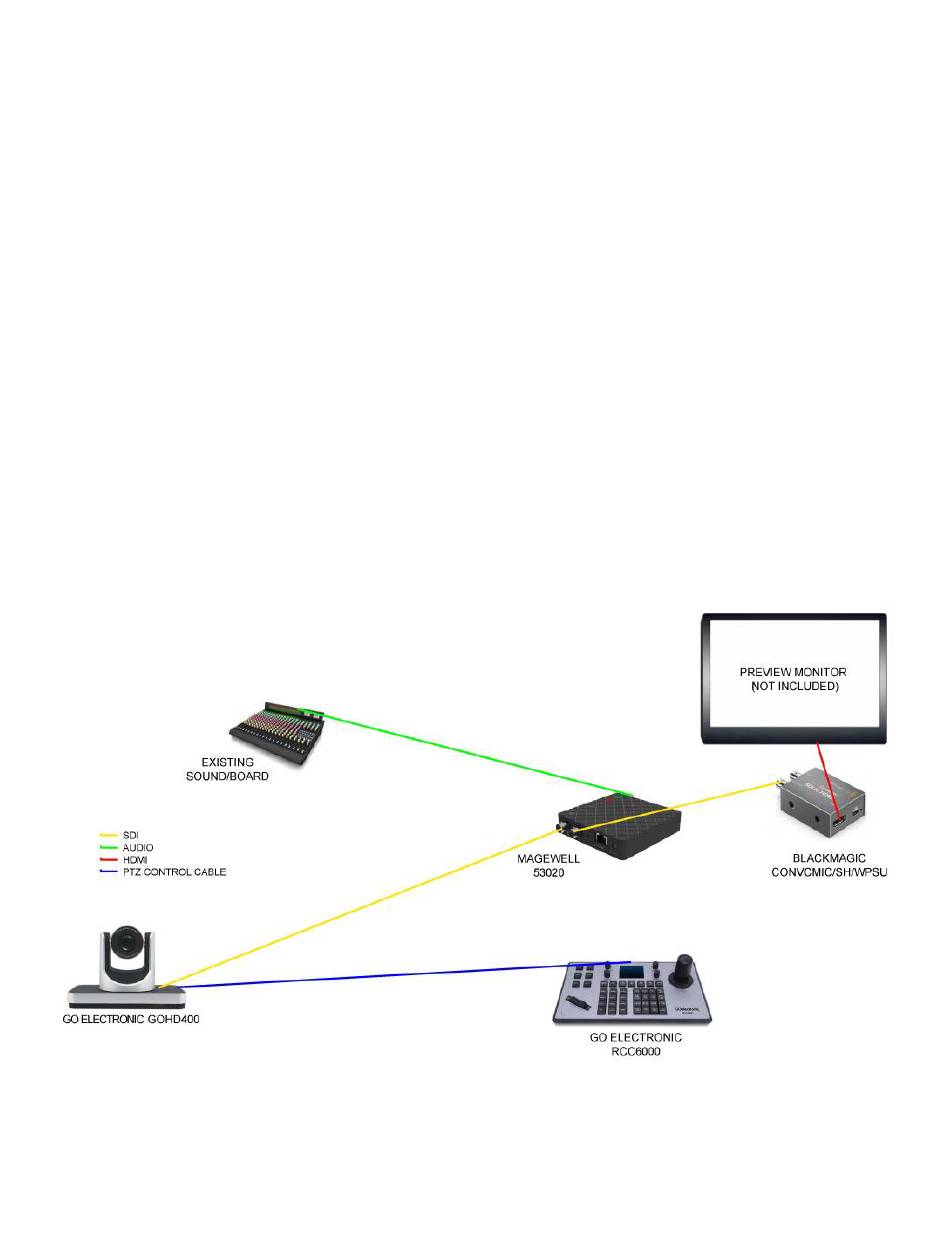

First, let's review what comes in this GOelectronic Streaming Kit:
1.

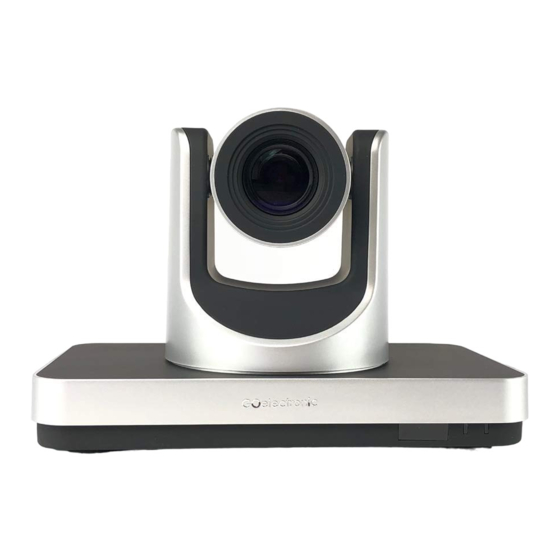

GOelectronic GOHD400 PTZ Camera
2.
GOelectronic RCC6000 PTZ Controller
3.
Magewell 53020 UltraStream SDI
4.
Blackmagic SDI to HDMI Converter
5.
Coax Video Cables
6.
VISCA PTZ Control Cable
7.
Camera Wall Mount
Note, the preview monitor and related HDMI cable required for this system are NOT included.
You can use any TV/monitor with an HDMI input.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOHD400 and is the answer not in the manual?

Questions and answers

Related Manuals for GOelectronic GOHD400

Summary of Contents for GOelectronic GOHD400

  • Page 1 QUICK START GUIDE for GOelectronic Streaming Kit – No Computer Needed (SDI Version) First, let’s review what comes in this GOelectronic Streaming Kit: GOelectronic GOHD400 PTZ Camera GOelectronic RCC6000 PTZ Controller Magewell 53020 UltraStream SDI Blackmagic SDI to HDMI Converter...
  • Page 2 We offer an optional wall mount for the camera should you need it. You will make three connections to the GOHD400: 1. VISCA cable for PTZ control 2. Coax cable for video 3.
  • Page 3 Connect the Camera to the Magewell UltraStream Now connect the coax video cable coming from the GOHD400 to the SDI INPUT on the Magewell 53020 UltraStream. You will also run audio out from your existing sound system (or microphone) and into the audio input on the 53020 unit.
  • Page 4 Connect your Preview Monitor to the Magewell UltraStream First connect one end of the short coax video cable to the UltraStream SDI OUT and the other end to the SDI IN on the Blackmagic SDI-to-HDMI converter. Next connect one end of an HDMI cable (not included) to the HDMI OUT on Blackmagic SDI-to-HDMI converter and the other end to the HDMI input on the TV/monitor (not included).
  • Page 5 User Manual (for App) here: https://www.magewell.com/files/documents/User_Manual/ultra_stream_family _user_manual_app_v1.4.34_en.pdf Assuming your camera is powered on and you have correctly connected all equipment, you should see video from the camera on your preview monitor. Test the PTZ Controller Now is a good opportunity to test the ptz controller. Power on the ptz controller via the switch on the back.
  • Page 6 For more detailed operating instructions for each product in the system, please view the individual product manuals. For questions or for technical support, please contact GOelectronic at 888-707-8024 or via our online support request form at https://www.goelectronic.com/pages/contact-us...
