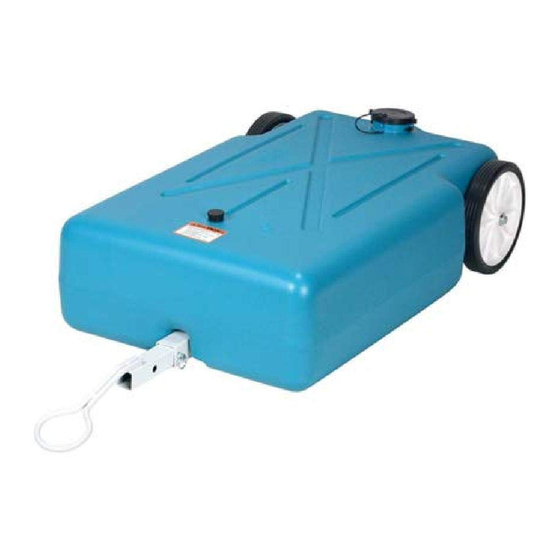

Barker 31342 Owner's Instructions

TOTE-ALONG OWNER'S INSTRUCTIONS
Assembly/Operating Instructions:
To extend handle:
Pull handle (12) out until
it's end hole aligns with
socket (13) hole and
insert quick release
pin (14).
13
14
To retract handle:
Put handle (12) fully
into socket (13) and
secure with quick
release pin.
Block
(1" x 2")
HELPFUL TIPS: THE SEWER HOSE HAS TO FIT SNUGLY TO PREVENT LEAKAGE. THE EASIEST WAY TO GET SEWER HOSE TO FIT ONTO ADAPTOR IS
TO HEAT IT (EX. BLOW DRYER). IT WILL EXPAND SO YOU CAN EASILY THEAD IT ONTO ADAPTOR. SECURE WITH HOSE CLAMP. ANOTHER OPTION
IS TO HAVE PATIENCE AND HOLD A COUPLE OF THE THREADS ON ONE SIDE, WHILE TRYING TO GET THE THREADS ALL THE WAY AROUND THE
ADAPTOR--IT CAN BE DONE (I TRIED IT AND I AM NOT A PATIENT PERSON).
Parts List:
ITEM PART NO. REQ'D
1 26799 1
2 20725 2
3 20676 1
4 617-0020 2
5 10225 3
6 615-0001 2
7 11576 1
8 15655 1
9 26060 1
10 26048 1
11 25524 1
12 31724 1
13 31724 1
14 643-0024 1
15 602-0014 8
16 619-0011 8
17 10400 1
18 12316 1
19 17274 1
20 26097 1
21 26096 1
Barker Manufacturing Company
1125 Watkins Road / PO Box 460
Battle Creek, MI 49016
Phone 269-965-2371 • Fax 269-965-2389 • www.barkermfg.com
E-Mail: service@ barkermfg.com or sales@barkermfg.com
30 GALLON - P/N 31342
Drain water
12
hook-up:
Connect Tote-Along
to coach with filler
hose assembly.
Vent Tote-Along by
loosening 3" cap.
12
14
Emptying:
Un-hook Tote-Along from coach. Pull to approved
dump station. Vent Tote-Along by loosening 3/4"
cap. Connect hose and adaptor to tank. Insert
hose into riser of dump station. Raise tank to 90
to dump.
DESCRIPTION
TANK 30 GALLON
WHEEL (10")
AXLE
BUSHING
HOSE WASHER
PUSH NUT (5/8")
HOSE CAP (3/4")
FILLER HOSE ASSEMBLY
ADAPTOR ASSEMBLY (3")
CAP (3")
WARNING LABEL
HANDLE
SOCKET
QUICK RELEASE PIN
SCREW
EXTERNAL LOCK WASHER
HOSE CLAMP
SEWER HOSE (5')
WARNING LABEL
STRAP (3")
GASKET
Holding tank
hook-up:
Connect Tote-Along
to coach gate valve
with straight
bayonet adaptor
and 3" sewer hose.
1
12
11
PAGE 1 of 1
Towing tank:
Put tow bracket loop over
ball hitch. Do not tow
faster than walking speed.
NOTE: Towing a Tote-Along
in excess of walking speed
can result in considerable
damage to tank or wheels.
Damage of this nature is
NOT covered under
warranty.
Cleaning:
Attach hose to
filler hose
assembly and
°
flush tank
thoroughly.
5
Long hub side
toward tank.
21
8
2
20
5
7
5
19
14
16
13
15
PAGE:
DATE:
ALL
29 FEB 12
REVISION LETTER: ECN#:
14513
H
10
4
3
2
6
9
17
18
FORM #:
26594
APPROVED:
