Syn-Apps 011104 Installation Quick Reference

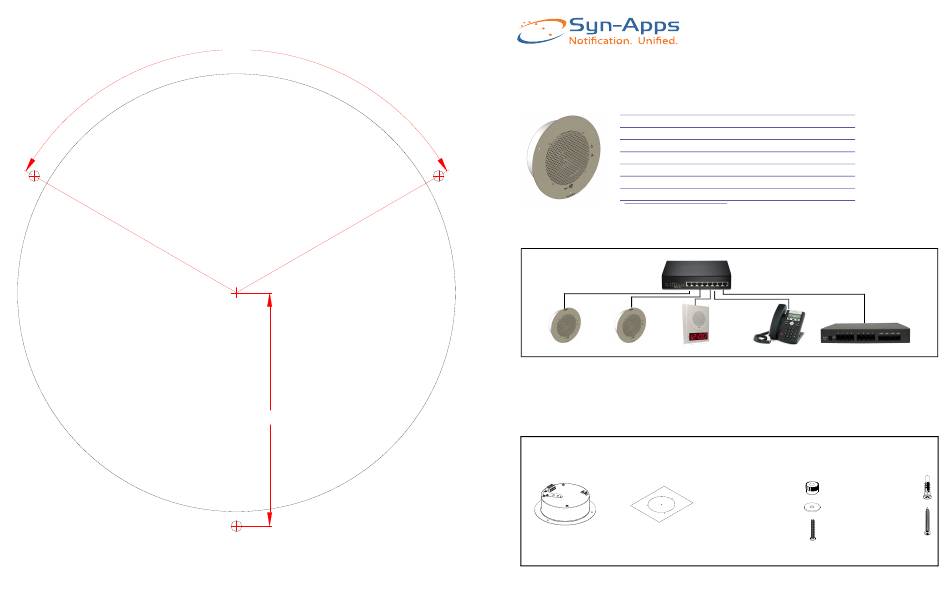

Mounting Template
Speaker Hole Diameter:
Screw Hole Diameter:
Dimensions are in inches [millimeter]
© 2016, Syn-Apps L.L.C. ALL RIGHTS RESERVED
120°
VoIP Speaker
7.50 [190.5]
0.1875 [4.75]
4.00 [101.6]
930348K

Typical System Installation

Speaker

Getting Started

Create a plan for the locations of your speakers.
●
● Prior to installation, consult local building and electrical code requirements.

Parts

(1) Speaker Assembly
Quick Reference Quick Reference
Installation Quick Reference

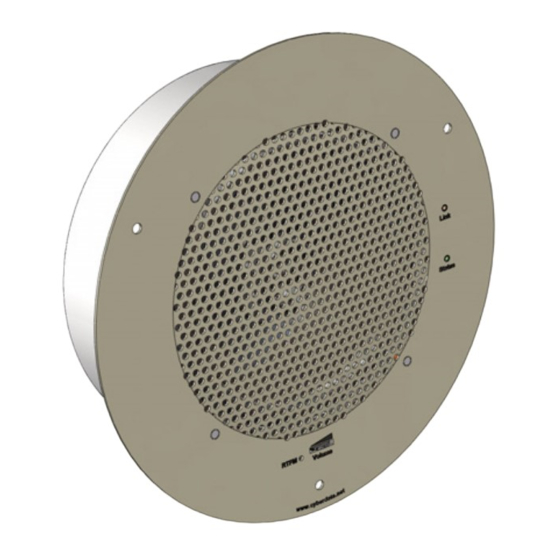

VoIP Ceiling Speaker
011104*, RAL 9002, Gray White, Standard
011105, RAL 9003, Signal White, Optional
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
802.3af/at Compliant Ethernet Switch
Speaker Clock Kit IP Phone
(1) Template for Speaker (1) Drop Ceiling Mounting Kit
and Screw Holes*
(3) #8 Nylon Thumb Nuts
(3) #8 Fender Washers
(3) 8-32 x 1 1/4" Mounting
* See the last page
Screws
of this document
930348K © 2016, Syn-Apps L.L.C. ALL RIGHTS RESERVED
Syn-Apps Announce Server
(1) Drywall Mounting Kit
(3) Plastic Ribbed Anchors
(3) #8 Sheet Metal Screws
