Section 1
General Description
The ClearPath Spectrum Wireless System is comprised of
two devices; a Coordinator (S-COR) that functions in a
similar role as traditional wireless system receivers, and
a Transceiver (S-TRX) that functions in a similar role as
traditional wireless transmitters, but this is where the
similarities end. The Spectrum Wireless System provides
several industry firsts:
• Digital two-way communication allows for greater
security and ensures successful signal transmission
between devices.
• LCD screen (S-COR) for quick and easy programming.
• Upon switch activation, the Transceivers communicate
valuable information that is displayed on the LCD
screen including: device ID, signal strength and battery
monitoring.
• Pairing of multiple Transceivers with Coordinators.
• Two built-in outputs (S-COR).
• 3 year battery life (S-TRX).
ClearPath Spectrum products operate at 2.4 GHz, making
the wave length more than 5 times shorter than
commonly-used frequencies.
through cracks and barriers easier, and transceivers will
continue to attempt to contact the Coordinator until it
receives an acknowledgement.
Section 2
Basic Installation
The S-COR is typically installed inside the door operator
housing area (header box), since the power supply and
operator control are located there.
NOTE: Output 1 will typically be used to trigger an electronic locking device, while Output 2 will be used
!
to activate an automatic door.
Shorter waves pass
Wiring Diagram
7898 Zionsville Road  Indianapolis, Indiana 46268
Telephone: (317) 842-2545  www.mssedco.com  custsvc@mssedco.com
NOTICE: For proper operation, it is important to
!
ensure that the antenna for the S-COR is located
outside the operator housing. This can be
accomplished by drilling a ⅜" to ½" hole in the
housing and carefully pulling the antenna through.
Please do not alter or modify the antenna for the
S-COR in any way.
Section 3
Technical Data
Model.................................. ClearPath Spectrum™ S-COR
Input Power......................... 12-24V AC or DC
Output Contacts.................. Form C
Relay 1 Contact Rating....... 3A:24V AC
Relay 2 Contact Rating....... 1A:24V AC
Temperature Rating........... -22°F to 158°F
Weight................................. 0.25 lbs.
Physical Size....................... 3 3/4"L x 2 1/4"W x 1"H
NOTICE: This device complies with Part 15 of the
!
FCC rules. Operation of this device is subject to the
following two conditions: 1) This device may not cause
harmful interference and 2) This device must accept
any interference received, including interference that
may cause undesired operation. Any changes or
modifications not expressly approved by MS SEDCO
could void the user's authority to operate this
equipment.

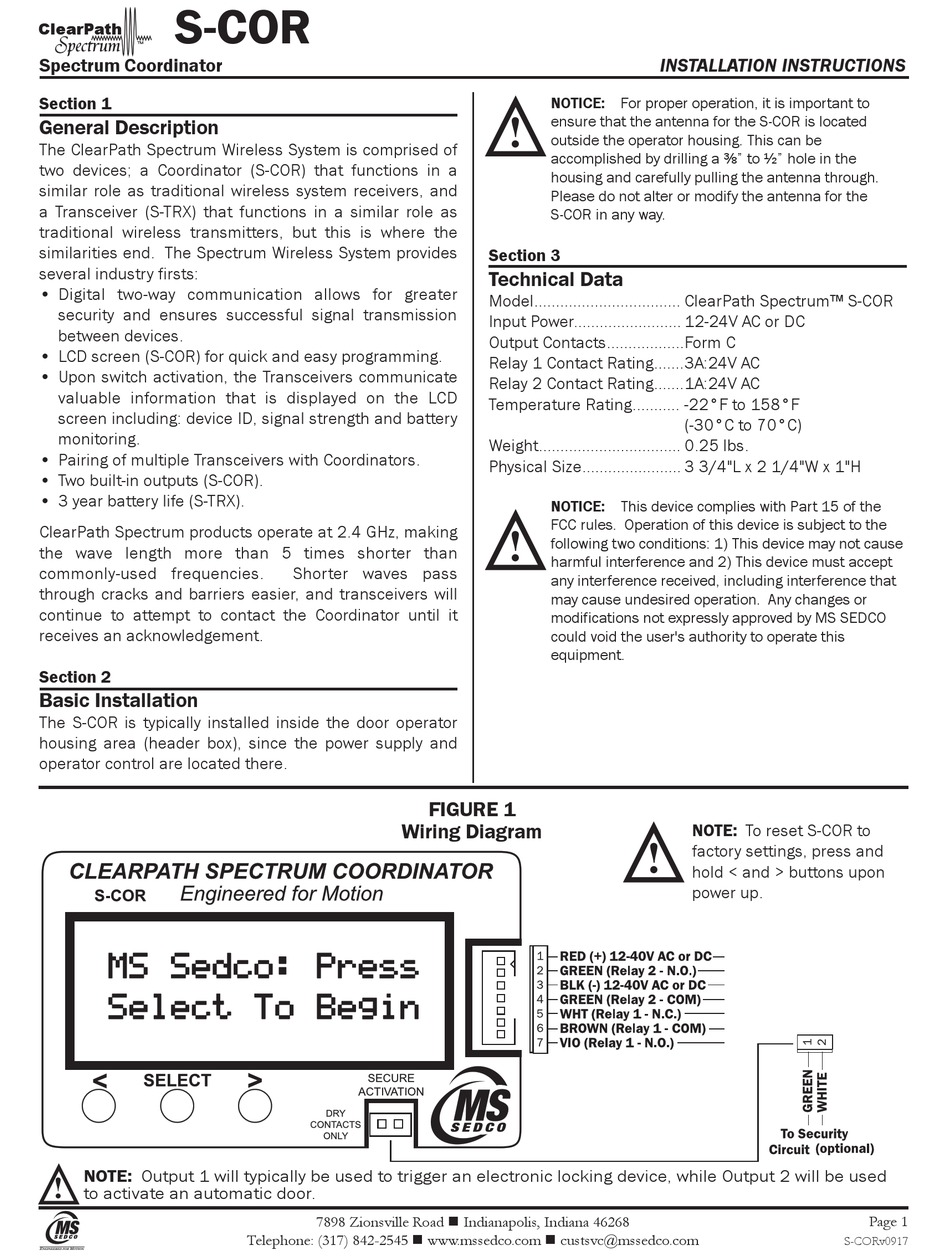

FIGURE 1
INSTALLATION INSTRUCTIONS
(-30°C to 70°C)
NOTE: To reset S-COR to
!
factory settings, press and
hold < and > buttons upon
power up.
