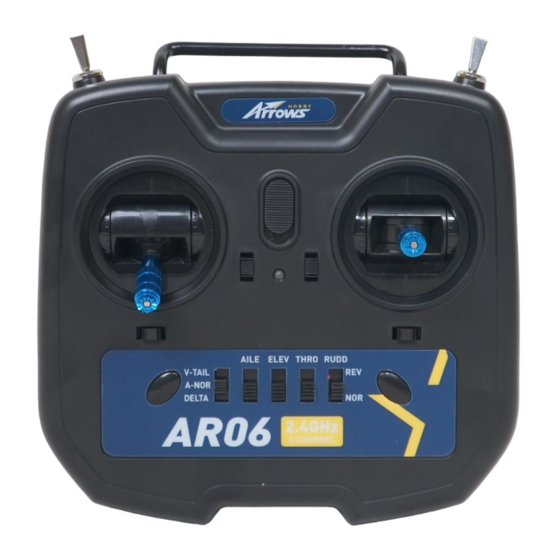

AR06 Remote Control
Channel 5/GPS
THROTTLE TRIM
(LEFT HAND THROTTLE)
ELEVATOR TRIM
(RIGHT HAND THROTTLE)
RUDDER TRIM
BIND
MULTI FUNCTION
AILERON REV
Remove the battery hatch cover, place 4x "AA"
cells into the battery hatch, then replace the
battery hatch cover.
1
Channel 6
ELEVATOR TRIM
(LEFT HAND THROTTLE)
THROTTLE TRIM
(RIGHT HAND THROTTLE)
AILERON TRIM
POWER STATUS LED
DIRECTION REV
ST. REV
UP/DOWN REV
Advertisement
Summary of Contents for Arrows Hobby AR06
- Page 1 AR06 Remote Control Channel 5/GPS Channel 6 THROTTLE TRIM ELEVATOR TRIM (LEFT HAND THROTTLE) (LEFT HAND THROTTLE) THROTTLE TRIM ELEVATOR TRIM (RIGHT HAND THROTTLE) (RIGHT HAND THROTTLE) AILERON TRIM RUDDER TRIM POWER STATUS LED BIND DIRECTION REV MULTI FUNCTION ST. REV...
-
Page 2: Basic Parameters
5. Transmitter power supply requirements: DC+6V (4 AAbatteries) 6. Receiver power supply requirements: DC+6V The following information is a quick and easy operating procedure for the ARROWSHOBBY AR06 2.4G remote transmitter and receiver: 1. Turn off the transmitter, connect the signal line of the ESC to the third channel of the receiver, and then connect the battery with the ESC. - Page 3 User Manual Precautions: 1. If you are an inexperienced pilot, seek the assistance of a flight instructor to help you with setting up your aircraft. As R/C models are not toys, improper setup and/or operation may result in serious accidents or injuries. 2.
- Page 4 5.Gyro off mode: Triggered using the middle position on the three position switch, the aircraft is not assisted by the electronic flight control system. 6.Optimized mode: Triggered using the inner position on the three position switch, the aircraft prevents weather-induced attitude upsets but does not interfere with the pilot inputs. 7.Return to home function: Triggered using the GPS button on the top left hand corner of the transmitter, the aircraft will return to home whenever this button is pushed- regardless of which flight mode the aircraft is operating under.
-
Page 5: Compliance Information For The European Union
Compliance Information for the European Union EU Compliance Statement: Dongguan Solid Model Technology Co.,Ltd hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the EMC Directive. Dongguan Solid Model Technology Co.,Ltd hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the RED and EMC Directives.
Need help?
Do you have a question about the AR06 and is the answer not in the manual?
Questions and answers
Can the AR 6 be changed to Mode 1 ?
