motif Duo Quick Manual

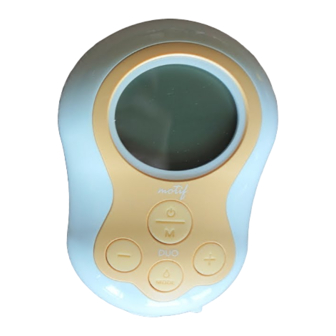

Motif Duo® Quick Guide
1. Buttons & Features
LCD Screen
A Memory
B Timer
C Expression
D Power
E Battery
F Massage
G Vacuum
Button Control
H Power Button
I Decrease Button
J Increase Button
K Mode Button
2. Preparing The Duo Pump
Assembling The Duo Pump
1. Wash hands before touching breast pump
components.
2. Place the diaphragm downward onto the
diaphragm bottom, so that the cross-lined
surface is facing the diaphragm bottom.
Cover with the diaphragm top and turn it
to lock.
3. Place the breast shield in the breast shield
connector.
4. Connect the valve by placing it in the
bottom of the breast shield connector.
Screw the bottle into the breast shield
connector.
5. Twist the diaphragm assembly onto the top
of the breastshield connector.
6. Connect the tubing to the port to the main
body of the pump.
7. Connect the other end of the tubing to
the back of the diaphragm assembly by
inserting the tip of the diaphragm top into
the tubing.
A
B
C
H
I
8. To clean or store after use unscrew the
bottle from the breast shield connector
and cover. Remove tubing from diaphragm
assembly and pump. Twist the diaphragm
assembly off of the breast shield connector.
Remove the breast shield from the breast
shield connector. Following cleaning
instructions on breast pump parts after
each use.
Diaphragm
Tubing
D
E
F
G
J
K
Breast Shield
Connector
Valve
