Summary of Contents for Rx Clear Universal 701460

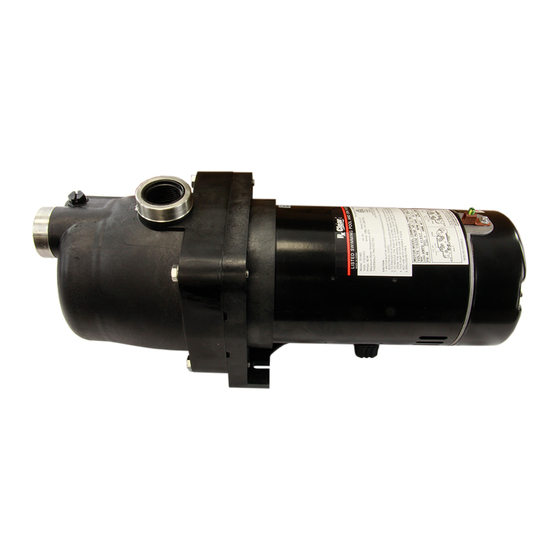

- Page 1 Rx Clear® Universal Booster Pump MODEL 701460...
-
Page 2: Following Safety Instructions
Section1. IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS 1.1 Safety Instructions All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: WARNING To reduce the risk of injury, do not permit children to use this product. - Page 3 u Limit test to 24 hours. After test, visually check system to be sure it is ready for operation. Chemical spills and fumes can weaken pool/spa equipment. Corrosion can cause filters and other equipment to fail, resulting in severe injury or property damage. Do not store pool chemicals near your equipment. CAUTION Do not start pump dry! Running the pump dry for any length of time will cause severe damage and will void the warranty.
-
Page 4: Section2. General Description
completely blocked. The flow through the remaining main drain(s) must comply with the latest version of ANSI/ASME A112.19.8 or its successor standard, ANSI/APSP-16, the standard for Suction Fittings For Use in Swimming Pools, Wading Pools, Spas, and Hot Tubs. Testing and Certification - Suction outlet covers must have been tested by a nationally recognized testing laboratory and found to comply with the latest version of ANSI/ASME A112.19.8 or its successor standard, ANSI/ APSP-16, the standard for Suction Fittings For Use in Swimming Pools, Wading Pools, Spas, and Hot Tubs. -
Page 5: Section3. Installation
Section3. Installation 3.1 Electrical 1. The pump motor must be securely and adequately grounded using the green screw provided. Ground before attempting to connect to an electrical power supply. Do not ground to a gas supply line. 2. Insulate all connections carefully to prevent grounding or short-circuits. Sharp edges on terminals require extra protection. - Page 6 damaged by expansion and movement caused by the surge of pump pressure. Refer to Figures 3 and 4. 2. The booster pump inlet connection line should be at least 3/4” pipe. 3. Do not tap into the top of a horizontal line. 4.
-
Page 7: Section4. Operation
2. To help prevent difficulty in priming, install the suction pipe without high points (above inlet of pump - inverted “U”s in plumbing), which can trap air. 3. The piping must be well supported and not forced together where constant stress will be experienced. 4. -
Page 8: Section5. Maintenance
1. Turn filtration pump ON. 2. Open the filter pressure release to relieve the system system pressure until water comes out. 3. If the filter pump is located below the water level of the pool, opening the filter pressure release valve will prime the pump with water. -
Page 9: Troubleshooting
Section6. TROUBLESHOOTING SYMPTOMS possible cause WHAT TO DO 1. The motor does A. Check the electric connections. C. If they are burnt-out, change not start and makes B. Check that the motor is live. them. no noise. C. Check the protection fuses. N.B. -
Page 10: Technical Data
TECHNICAL DATA Model Volte / HZ Amps 701460 1.0 HP 3450 115V/230V/60HZ 11.5 Parts listing: Ref. No. Part No. Description 88601007 Drain plug 65432002080 Gasket 647255271 Pump housing 65221015000 Screw M8*55 65244005000 Gasket M8 65431142080 O-ring 647255204 Base 65233022000 Nut M8 647255209 Sleeve 647255208...
Need help?
Do you have a question about the Universal 701460 and is the answer not in the manual?
Questions and answers

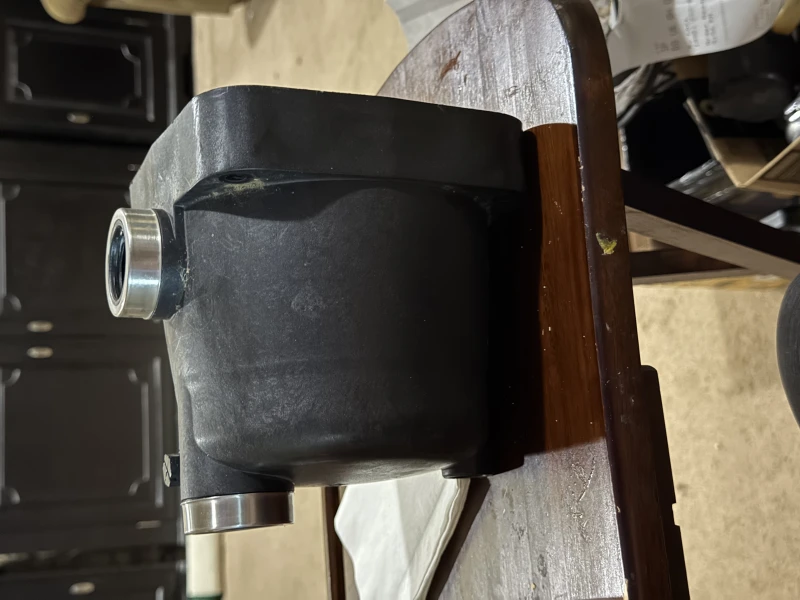

Were can i geta replacement housing, mine frose and cracked
