Nozzle typ A, Installation and Service Instructions
herzog systems ag

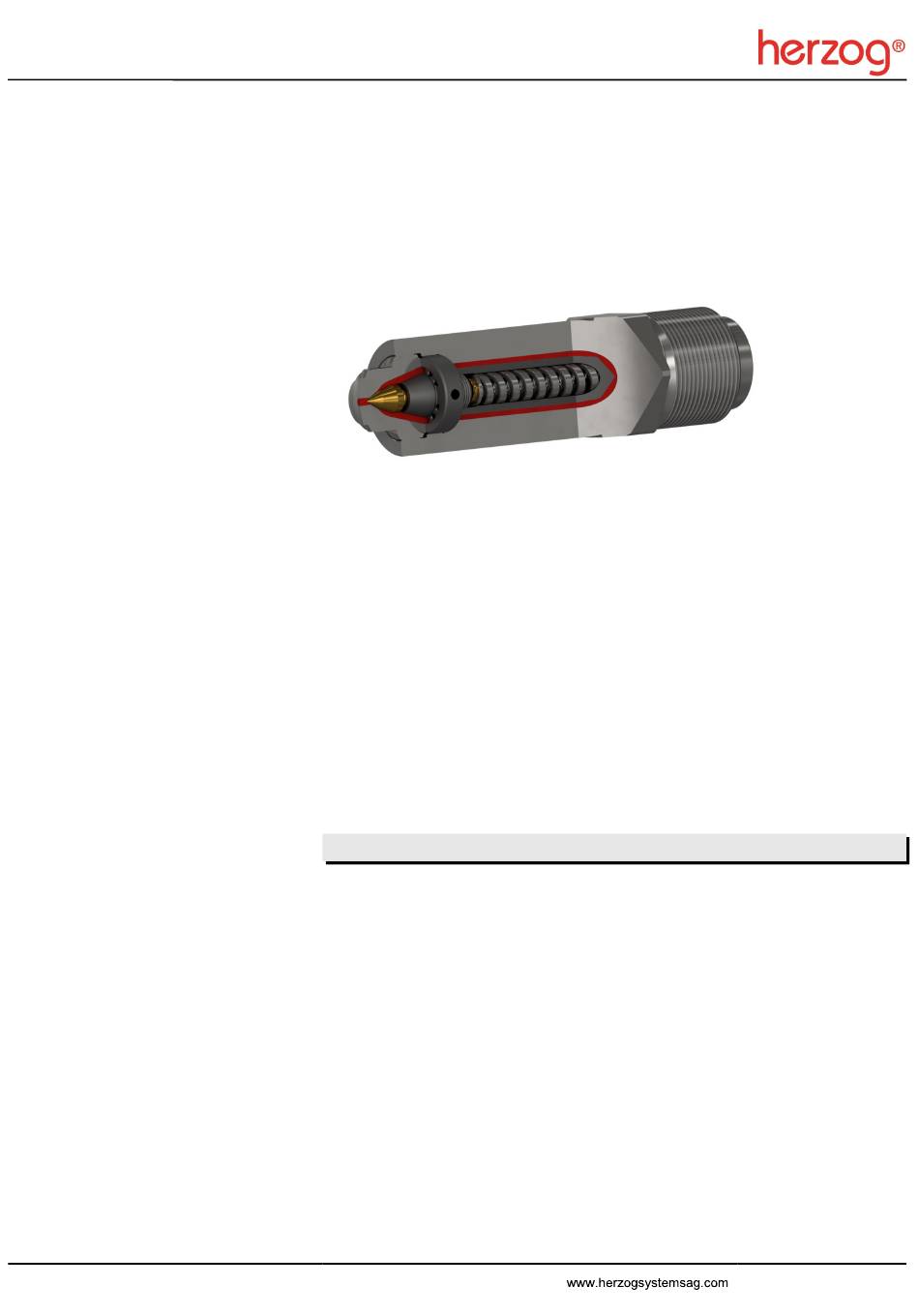

Machine shut-off nozzle type A(S)
spring operated
Applications:
Thermoplastics (not applicable for PVC)
Shut-off mechanism:
Operated with one axial high performance spring
Index
Chapter
Safety instructions ..................................................................................................... 2
Installation instructions .............................................................................................. 3
Initial operation .......................................................................................................... 4
Cleaning instructions ................................................................................................. 4
Assembly .................................................................................................................... 5
Spare part order form ................................................................................................. 6
Tel. +41 71 394 19 69
Fax. +41 71 394 19 60
info@herzogsystemsag.com
Page
Seite 1 von 6
Version 06/2022
Advertisement
Table of Contents
Related Manuals for Herzog A Series
Summary of Contents for Herzog A Series
- Page 1 Installation instructions ....................3 Initial operation ......................4 Cleaning instructions ....................4 Assembly ........................5 Spare part order form ....................6 Tel. +41 71 394 19 69 Seite 1 von 6 herzog systems ag Fax. +41 71 394 19 60 info@herzogsystemsag.com Version 06/2022...
- Page 2 There is a risk that the gas may escape explosively through the nozzle orifice. Keep this manual in a convenient place for future reference Tel. +41 71 394 19 69 Seite 2 von 6 herzog systems ag Fax. +41 71 394 19 60 info@herzogsystemsag.com Version 06/2022...
- Page 3 2. Pre-install heater band and sensor. 1. Await temperature equalization. 2. Tighten (See chapter Assembly for tool sizes and torques). Tel. +41 71 394 19 69 Seite 3 von 6 herzog systems ag Fax. +41 71 394 19 60 info@herzogsystemsag.com Version 06/2022...
- Page 4 Before reassembly: check all parts for damage or wear. Profit from our cleaning service. The nozzle is disassembled, checked and repaired if necessary after customer approval. Tel. +41 71 394 19 69 Seite 4 von 6 herzog systems ag Fax. +41 71 394 19 60 info@herzogsystemsag.com Version 06/2022...
- Page 5 3. Insert the shut-off part reversed back into the body and reinsert positioning pin 4. Use a ring spanner on the three stabilisation extrusions to screw off spring chamber Tel. +41 71 394 19 69 Seite 5 von 6 herzog systems ag Fax. +41 71 394 19 60 info@herzogsystemsag.com Version 06/2022...
- Page 6 Engraved identity Nr. Please enter here Quantity Part name / no. Send to: herzog systems ag CH-9230 Flawil / Switzerland Tel. +41 (0) 71 394 19 69 / Fax +41 (0) 71 394 19 60 www.herzog-ag.com / info@herzog-ag.com Tel. +41 71 394 19 69...
