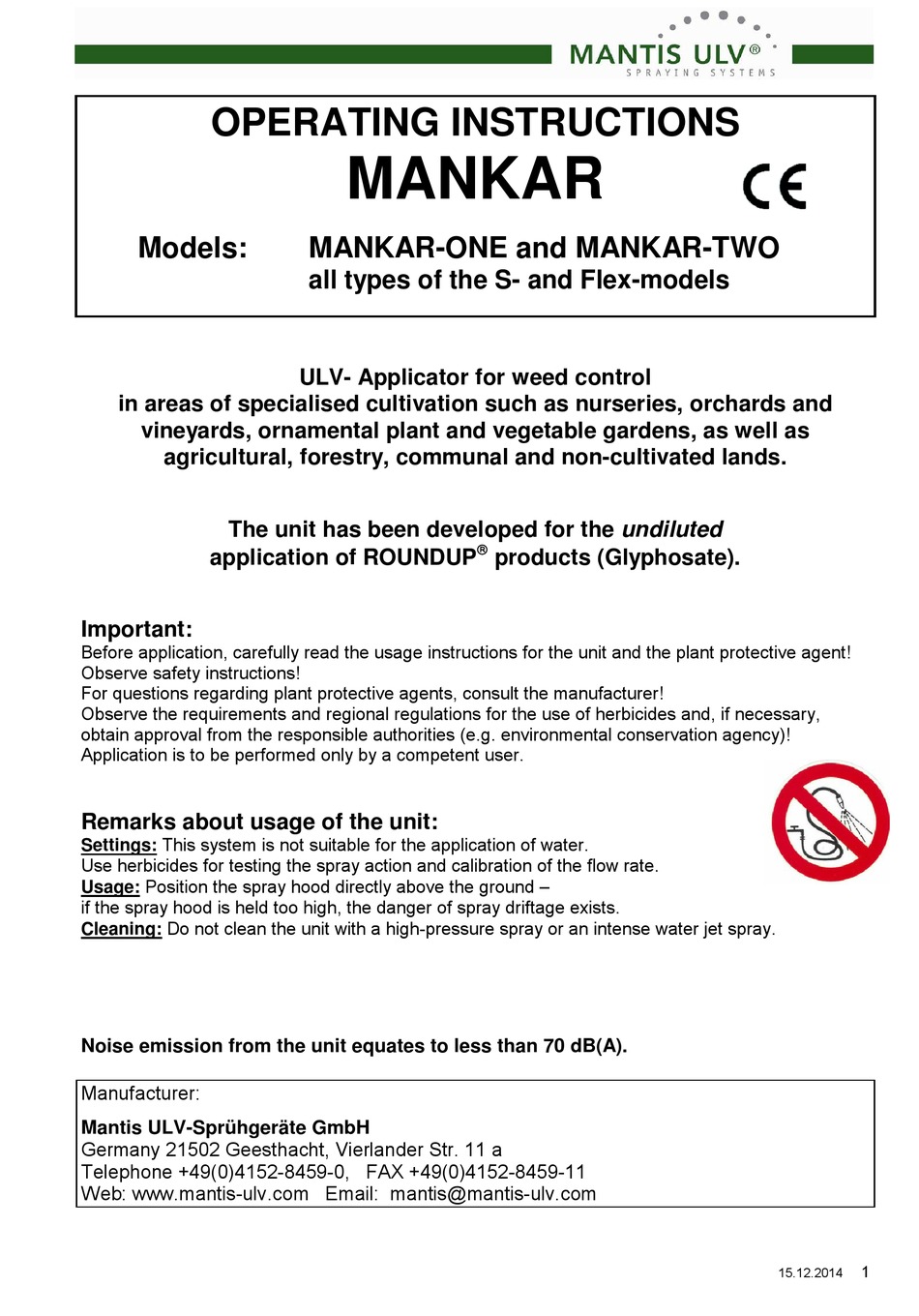

OPERATING INSTRUCTIONS
Models:
in areas of specialised cultivation such as nurseries, orchards and
vineyards, ornamental plant and vegetable gardens, as well as
agricultural, forestry, communal and non-cultivated lands.
The unit has been developed for the undiluted
application of ROUNDUP
Important:
Before application, carefully read the usage instructions for the unit and the plant protective agent!
Observe safety instructions!
For questions regarding plant protective agents, consult the manufacturer!
Observe the requirements and regional regulations for the use of herbicides and, if necessary,
obtain approval from the responsible authorities (e.g. environmental conservation agency)!
Application is to be performed only by a competent user.
Remarks about usage of the unit:
Settings: This system is not suitable for the application of water.
Use herbicides for testing the spray action and calibration of the flow rate.
Usage: Position the spray hood directly above the ground –
if the spray hood is held too high, the danger of spray driftage exists.
Cleaning: Do not clean the unit with a high-pressure spray or an intense water jet spray.
Noise emission from the unit equates to less than 70 dB(A).
Manufacturer:
Mantis ULV-Sprühgeräte GmbH
Germany 21502 Geesthacht, Vierlander Str. 11 a
Telephone +49(0)4152-8459-0, FAX +49(0)4152-8459-11
Web: www.mantis-ulv.com Email: mantis@mantis-ulv.com
MANKAR
MANKAR-ONE and MANKAR-TWO
all types of the S- and Flex-models
ULV- Applicator for weed control
products (Glyphosate).
1
15.12.2014
Advertisement
Summary of Contents for Mantis ULV MANKAR
- Page 1 OPERATING INSTRUCTIONS MANKAR Models: MANKAR-ONE and MANKAR-TWO all types of the S- and Flex-models ULV- Applicator for weed control in areas of specialised cultivation such as nurseries, orchards and vineyards, ornamental plant and vegetable gardens, as well as agricultural, forestry, communal and non-cultivated lands.
- Page 2 ® For the undiluted application of Roundup products (Glyphosate) The information on this page applies to all MANKAR Roll units. Details regarding assembly, use and replacement parts are provided on the following pages: MANKAR-ONE: Pages 4, 6-9 MANKAR-TWO: Pages 5-9...
- Page 3 Applicator unit function: Rotating atomisers are driven by means of a rechargeable battery. Metering on all the units mentioned is path-dependent and takes place by means of a wheel driven pump. Droplets are formed by the centrifugal force of the rotating atomiser. The droplets are discharged downwards by the rotating atomiser through an adjustable segment. Residual chemical solution in the tank not intended for application is approx.
- Page 4 MANKAR-ONE 45 MANKAR-ONE-S Flex Collector receptacle for draining the tank contents Assembly Checking the output volume Mount handle bar guide (A) on frame pump carrier (B). Place an underlay (e.g. cardboard or paper) on the ground and prop up the unit on stands.
- Page 5 MANKAR-TWO Flex Collector receptacle for draining the tank contents Screw for attaching spray hood adjustment The Allen head screw below the hood can be used to adjust the spring Screws for presetting spray tension of the rotary joint. width Assembly Checking the output volume Mount handle bar guide (A) on frame pump carrier (B).
- Page 6 1 102530 Clip for ITT SURE-SEAL, connector 2 104132 Protective cover, front Mankar-Roll 3 100085 Hose grommet 6 mm MS for pump sets MAFEX / MANKAR 4 104151 Mounting plate height adjustment Mankar-Roll 5 101145 Allen head screw M 8 x 16 mm VA...
- Page 7 18 104112 Axle, right Mankar-Roll 19 104510 Propeller shaft Mankar-Roll 20 104111 Axle, left Mankar-Roll 21 a 100527 Metering pump MANKAR-3, capacity 5 - 12 ml/min for MANKAR-110 GP 21 b 100492 Metering pump MAFEX-3, capacity 2 - 20 ml/min 15.12.2014...
- Page 8 1 104855 Spray hood 55 cm Mankar-Roll without atomiser 2 104840 Spray hood 40 cm Mankar-Roll without atomiser 3 a 104825 Spray hood 25 cm, right Mankar-Roll without atomiser 3 b 104824 Spray hood 25 cm, left Mankar-Roll without atomiser...
- Page 9 ItemPart No. Description ItemPart No. Description 100527 Metering pump MANKAR-3, capacity 5 - 12 ml/min for MANKAR-110 GP 100492 Metering pump MAFEX-3, capacity 2 - 20 ml/min 100528 Pump housing for two-channel pump Metering pump MANKAR 100493 Pump housing for single-channel pump Metering pump MAFEX...
-
Page 10: Troubleshooting
Troubleshooting Fault Cause Rectification Atomiser contaminated Thoroughly clean atomiser, remove plant parts as Atomiser disc does necessary not rotate Battery empty Charge battery Fuse blown Replace fuse on power pack (Replacement fuses are located in the power pack housing) No electrical contact Check cable and connector contacts Battery faulty Install new battery... - Page 11 EG-Declaration of conformity Council Directive 2006/42/EG Mantis ULV-Sprühgeräte GmbH, Vierlander Straße 11 a, 21502 Geesthacht declare under our sole responsibility that the following products are in conformity with the provisions of the following Council Directive: 2006/42/EG MANKAR-ONE, MANKAR-TWO Hiske Weissmann...
